Micro Coaxial Cable Assembly

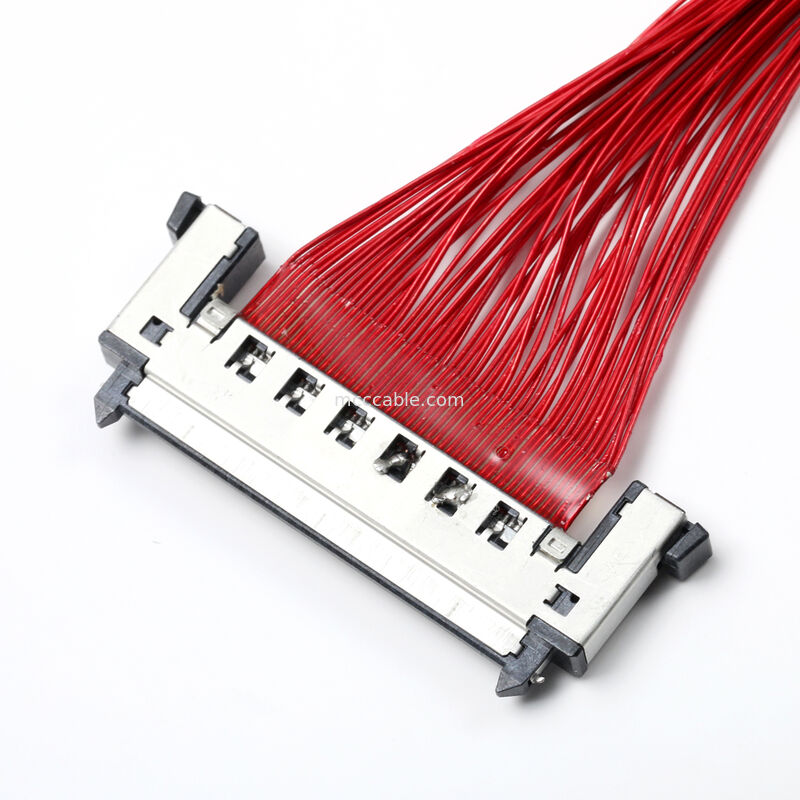

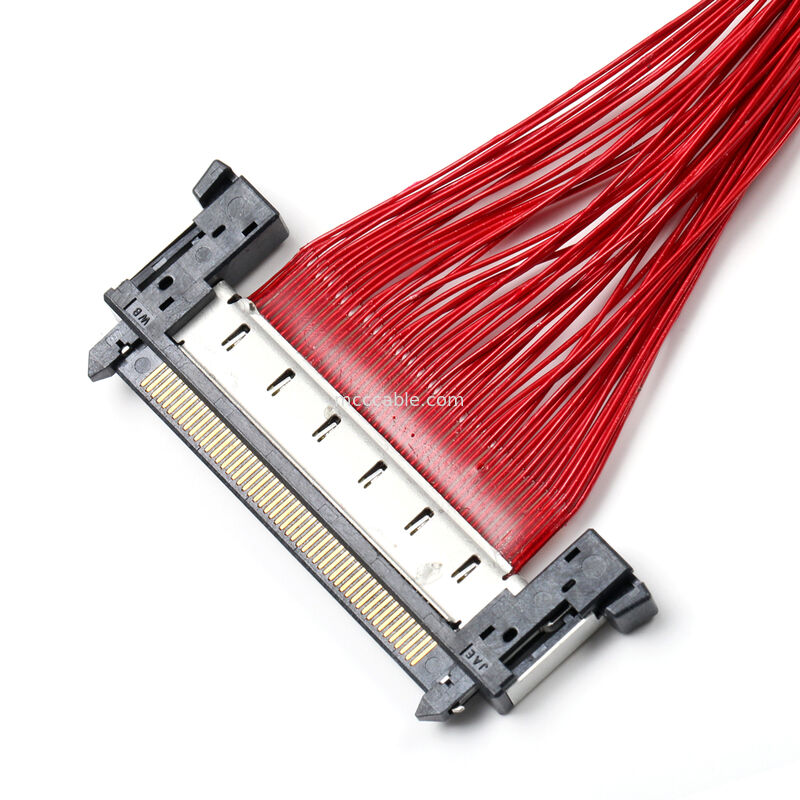

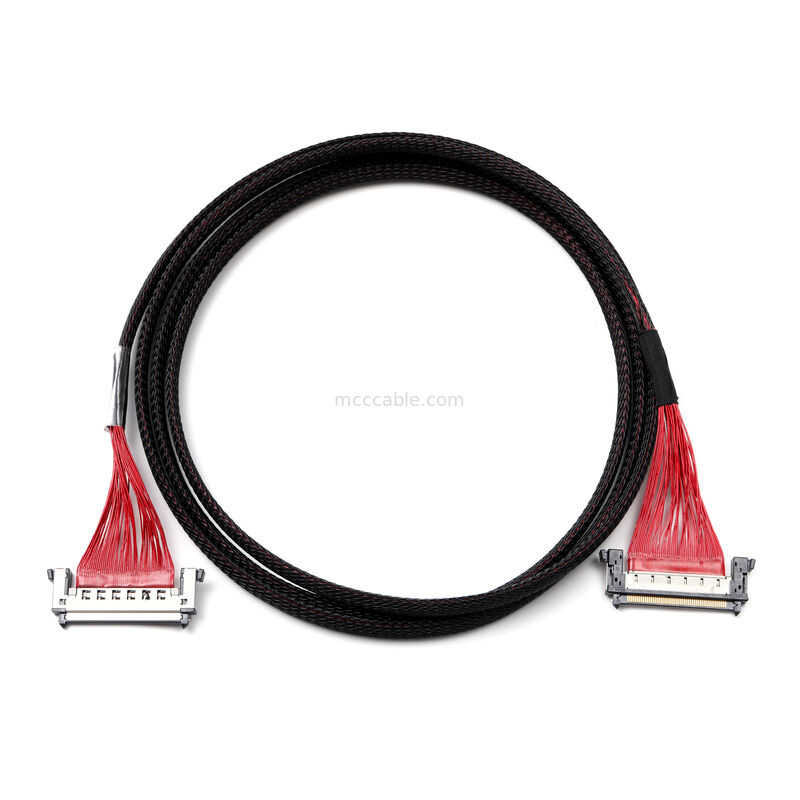

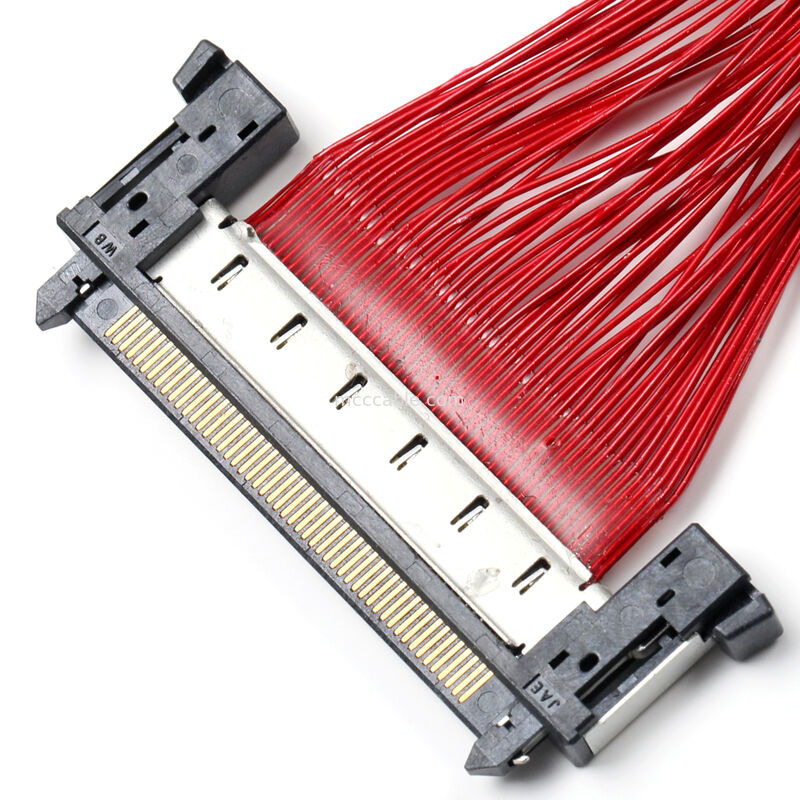

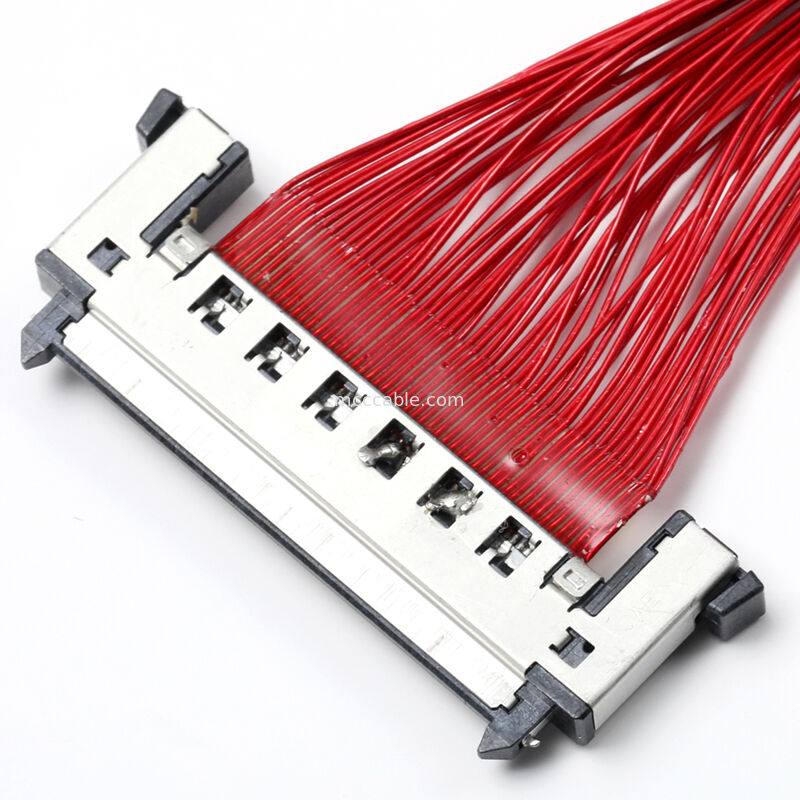

Micro Coaxial Cable Assembly with FI-RE51CL Connector
– Custom OEM High-Speed Interconnect
Micro Coaxial Cable Assembly with FI-RE51CL Connector :
This Micro Coaxial Cable Assembly with FI-RE51CL Connector is a custom OEM interconnect
solution designed for high-density electronic systems requiring stable signal integrity over
extended cable lengths.
The assembly utilizes UL1354 36 AWG micro coaxial wires arranged in a parallel fan-out
structure and terminated with 0.5 mm pitch, 51-position fine-pitch board-level connectors.
An expandable braided sleeve and reinforced termination area provide mechanical protection,
EMI control, and long-term reliability.
Cable length, pinout, shielding method, and connector orientation are fully customizable to
meet proprietary system requirements.
Micro Coaxial Cable Assembly – Key Features:
36 AWG Micro Coaxial Wire Structure
Individual coax conductors reduce crosstalk and maintain controlled impedance.
FI-RE51CL Fine-Pitch Connector Interface
0.5 mm pitch, 51-position design suitable for high-density board-level connections.
Long-Distance Signal Capability
Optimized for stable transmission over extended cable lengths (example: 1.5 m).
Braided Sleeving Protection
Expandable polyester braid improves abrasion resistance and cable management.
Reinforced Termination Design
UV adhesive, acetate tape, and mechanical strain relief enhance durability.
Custom OEM Manufacturing
Built according to customer drawings, electrical requirements, and application constraints.
Micro Coaxial Cable Assembly – Typical Applications:
Embedded display and imaging systems
Industrial vision and sensing equipment
High-density control and processing modules
Medical and instrumentation electronics
Custom OEM electronic assemblies
Micro Coaxial Cable Assembly – Technical Specifications:
| Parameter | Description |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Connector Model | FI-RE51CL |
| Connector Pitch | 0.5 mm |
| Number of Positions | 51 |
| Wire Type | UL1354 Micro Coaxial Cable |
| Wire Gauge | 36 AWG |
| Nominal Impedance | 33 Ω (typical) |
| Cable Length | Custom (example: 1500 mm ±20 mm) |
| Shielding | Individual coax + braided outer sleeve |
| Outer Protection | Expandable polyester braided sleeving |
| Electrical Testing | 100% open / short / intermittence test |
| Conductor Resistance | ≤3 Ω |
| Insulation Resistance | ≥10 MΩ @ 200 V DC |
| Compliance | RoHS compliant |
| Manufacturing Mode | Custom OEM design & production |
Micro Coaxial Cable Assembly – Customization Options:
Cable length and routing layout
Number of coaxial lines
Connector orientation and mating configuration
Pin assignment and signal grouping
Shielding and sleeving options
Labeling, serialization, and packaging
Engineering support is available from design validation to volume production.
