Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-015B

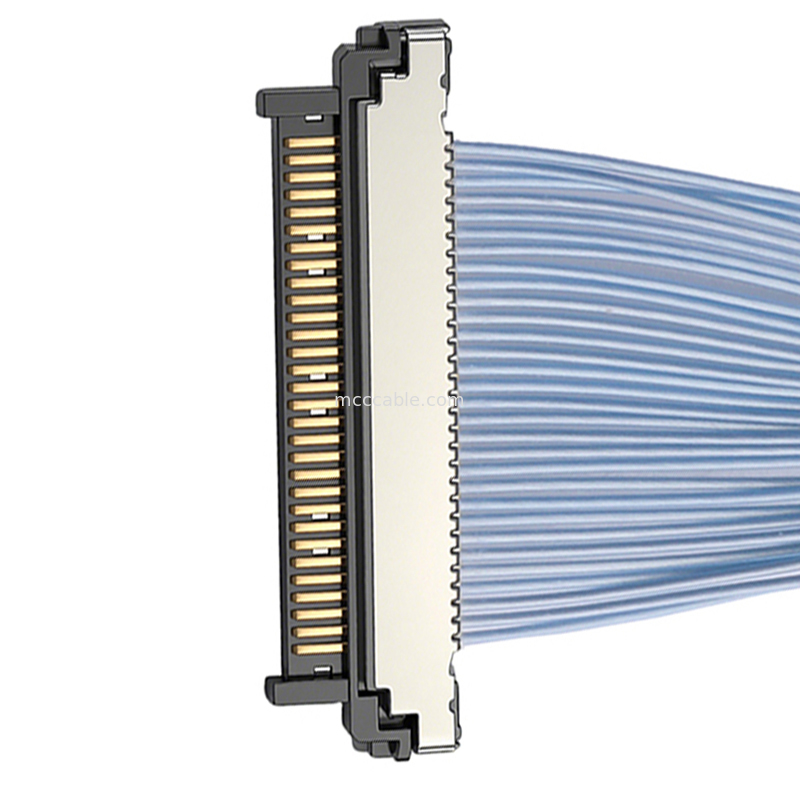

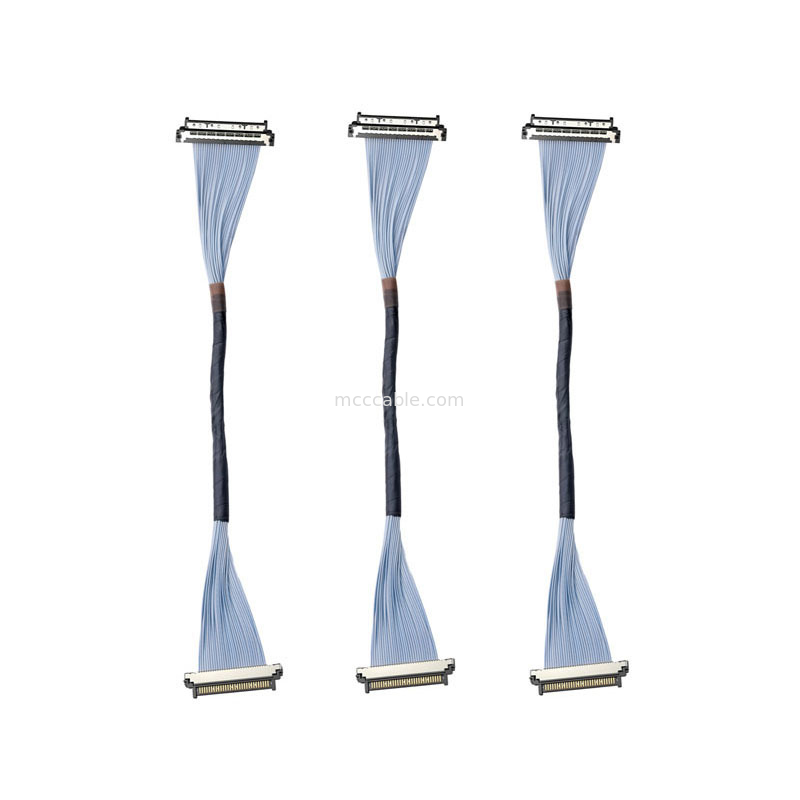

0.4mm Future-Ready USL20-30SS-015B - Connector
for AI Edge Computing Cameras
USL20-30SS-015B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-015B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-015B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we have a factory backed by more than 15 years of design and manufacturing experience.
Q2. Is there any certification?
A:Absolutely, we are certified with ISO9001, ISO14001, TS16949, ISO13485, and UL standards.
Q3. What is our specialty?
A:We’re experts in designing products for specific application purposes.
Q4. Do you accept OEM/ODM orders?
A: Yes, we process OEM/ODM orders. OEM has a 100-piece minimum, ODM requires 1,000
pieces, and mould costs are design-dependent.
Q5. How long will it need for completing an order?
A: For small or stocked products, preparation and delivery take less than 3 days, with shipping
ranging from 7 days to 1 month per your choice. Big orders need 5–21 working days for production
and materials, 1–3 days for testing, and 1 day for packing, so 7–25 days excluding shipping.
Q6. As long term clients, what other service we can get?
A: Long-term customers are provided new products with orders to check market potential and gain
reselling rights in their district, lower fees for small purchases, and help with custom promotional visuals.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Cables are warranted for 12–36 months. For big orders, we supply 0.3%–0.5% extra units for
defects. If more than 5 units (under 0.1%) are faulty, notify sales with photos, and we’ll replace
them or refund you.
Q8. Do you accept free sample order?
A: Yes, we support free sample orders for some items, though shipping fees apply.
How to contact us?
Provide your inquiry details below and click "send" now! Free samples and excellent pricing are here.
If a product isn’t on our site, contact us, and we’ll find a high-quality option at a great price.
