Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-012B

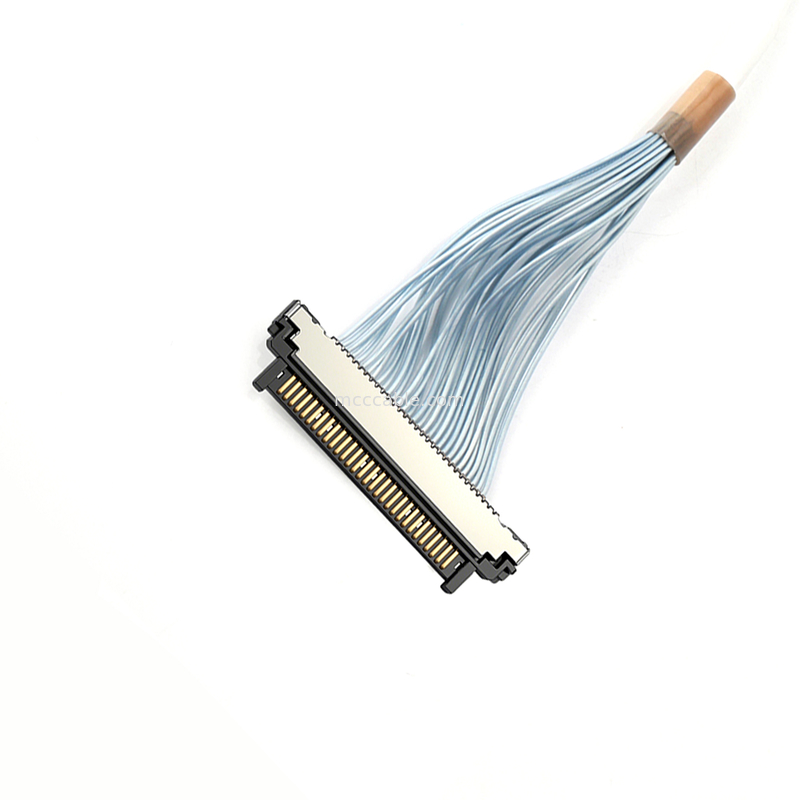

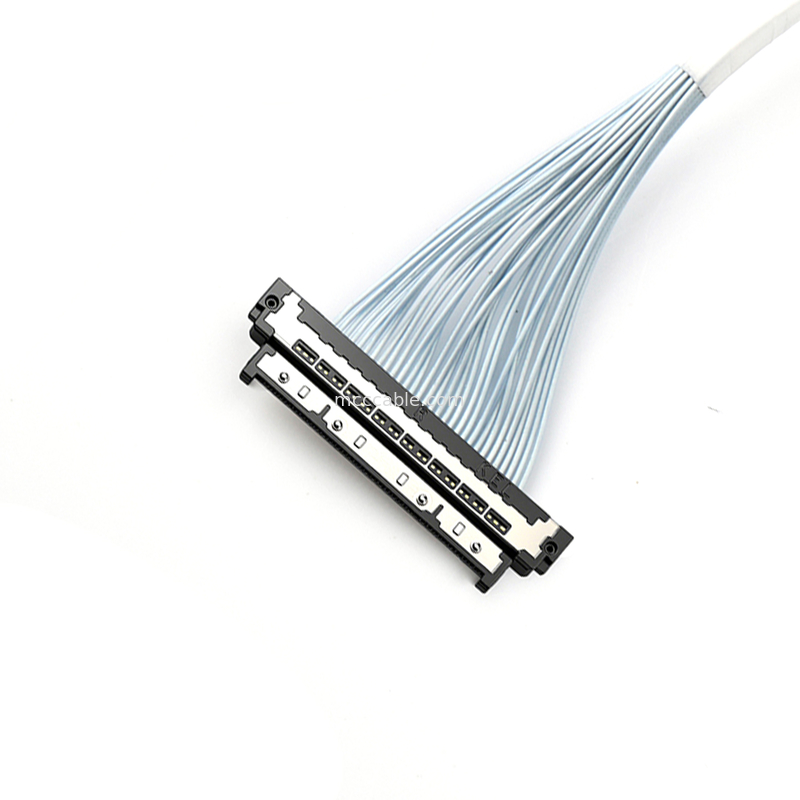

0.4mm Pitch Connector USL20-30SS-012B - Custom
Solutions for Surveillance Systems
USL20-30SS-012B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-012B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-012B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Indeed, we run a factory with over 15 years of design and production know-how.
Q2. Is there any certification?
A:Absolutely, we are certified with ISO9001, ISO14001, TS16949, ISO13485, and UL approvals.
Q3. What is our specialty?
A:Our strength is in developing products suited to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we process OEM/ODM orders. OEM has a 100-piece minimum, ODM requires 1,000
pieces, and mould costs are design-dependent.
Q5. How long will it need for completing an order?
A: For small or available products, preparation and delivery take under 3 days, with shipping varying
from 7 days to 1 month based on client choice. For large orders, material prep and production take
5–21 working days, testing takes 1–3 days, and packing takes 1 day, so 7–25 days total, excluding
shipping.
Q6. As long term clients, what other service we can get?
A:As valued long-term clients, you’ll get new products with orders to explore market fit and resell
in your region, reduced prices on smaller quantities, and assistance with branded promotional images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Cables carry a 12–36-month warranty. Large orders come with 0.3%–0.5% spares for defects.
If more than 5 units (under 0.1%) are faulty, contact sales with images, and we’ll resolve it with
replacements or a refund.
Q8. Do you accept free sample order?
A: Indeed, sample orders are accepted, with some samples offered free, not including shipping.
