Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-011C

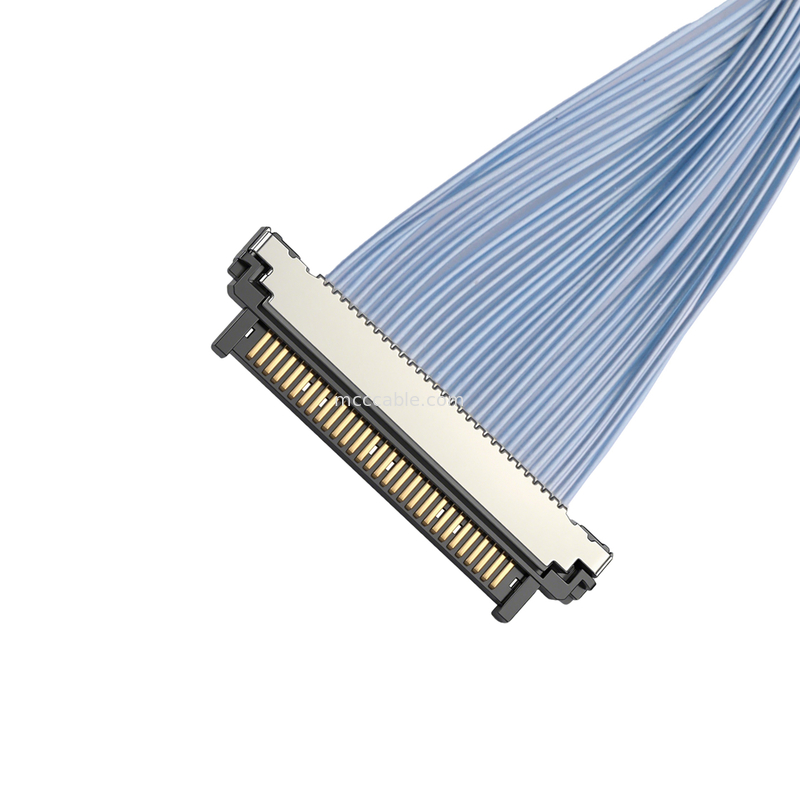

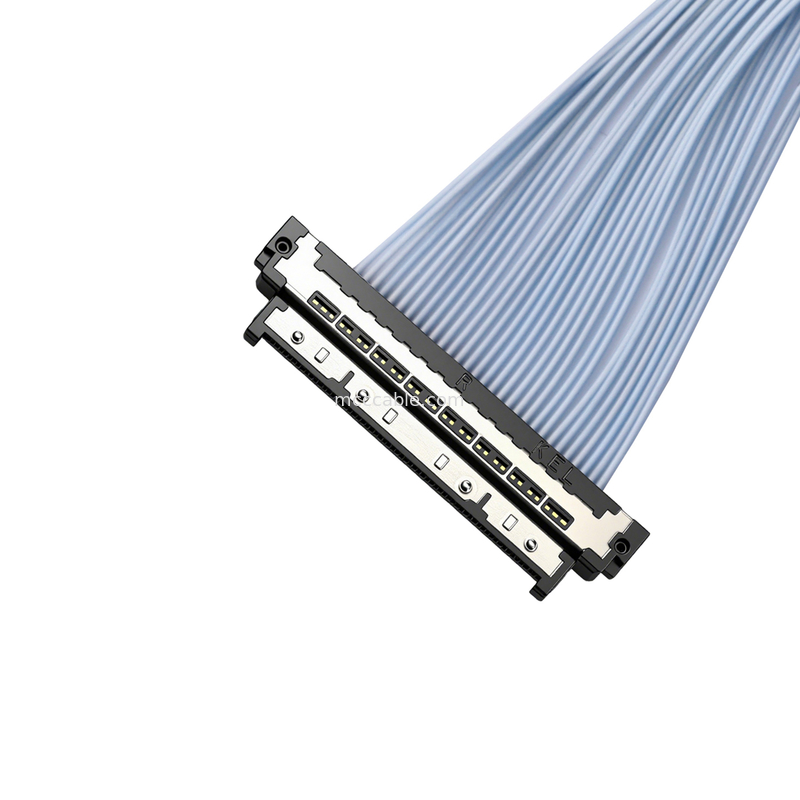

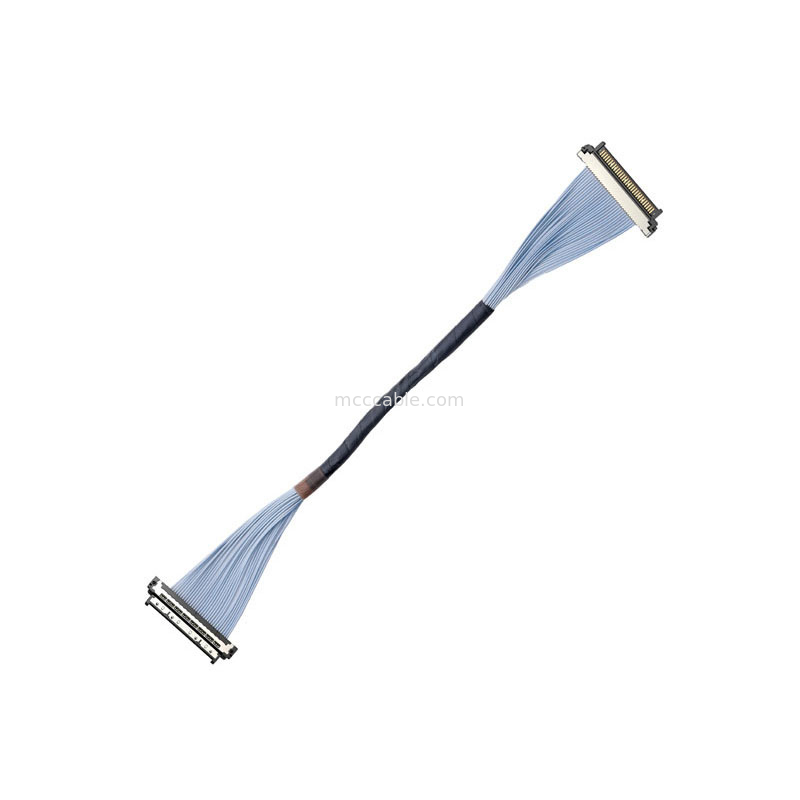

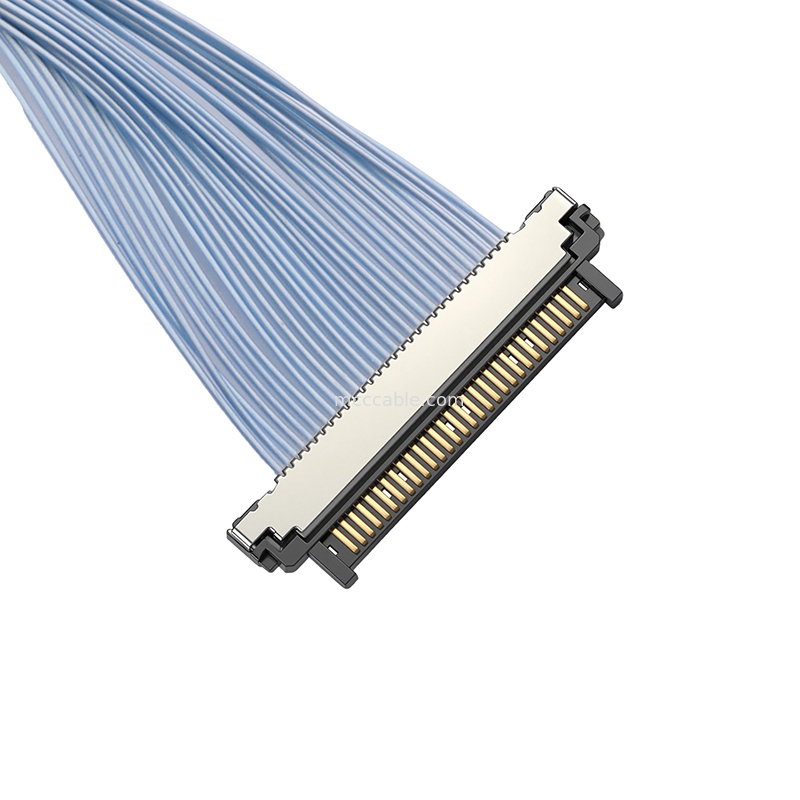

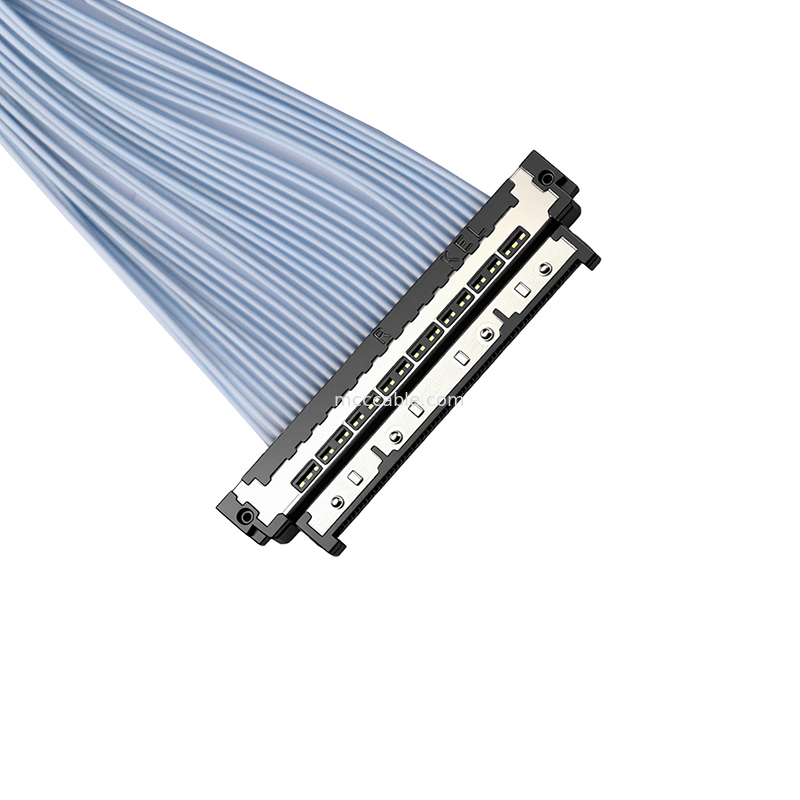

OEM 0.4mm USL20-30SS-011C - Trusted Connector
for Security Camera Manufacturers
USL20-30SS-011C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-011C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-011C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, our factory has over 15 years of experience in design and production.
Q2. Is there any certification?
A:Yes, we hold ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is our specialty?
A:We specialize in product design tailored to application needs.
Q4. Do you accept OEM/ODM orders?
A: Yes, OEM/ODM orders are accepted. The MOQ is 100 pieces for OEM and
1,000 pieces for ODM, with a mould fee charged per design.
Q5. How long will it need for completing an order?
A: For small orders or in-stock products, preparation and delivery take under 3
days, with shipping times varying from 7 days to 1 month based on client preference.
For large orders, including material preparation and production, it takes 5–21 working
days depending on quantity, plus 1–3 days for testing and 1 day for packing, so 7–25
days total, excluding shipping.
Q6. As long term clients, what other service we can get?
A:As valued clients, you’ll get new products with orders to assess market viability and
secure reselling rights in your area, lower prices on smaller orders, and support with
custom-branded promotional images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables come with a 12–36-month warranty. For large orders, we include
0.3%–0.5% extra units as backups for defects. If you receive more than 5 faulty units
(under 0.1%), contact our sales team with images, and we’ll resolve it by replacing
them in a new order or issuing a refund.
Q8. Do you accept free sample order?
A: Yes, sample orders are welcome, and some samples are free, aside from shipping expenses.
