Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-011B

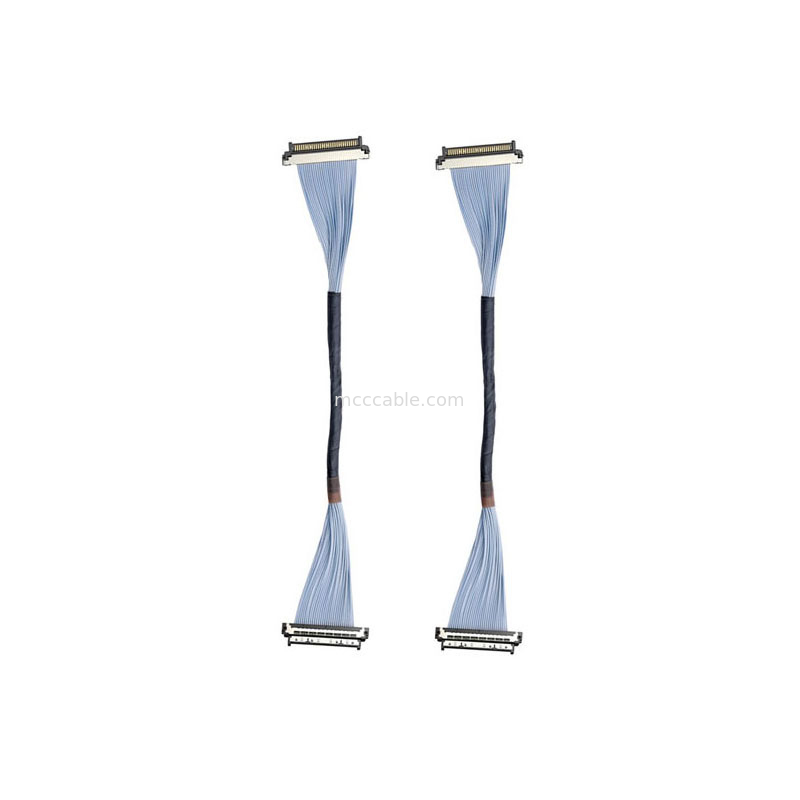

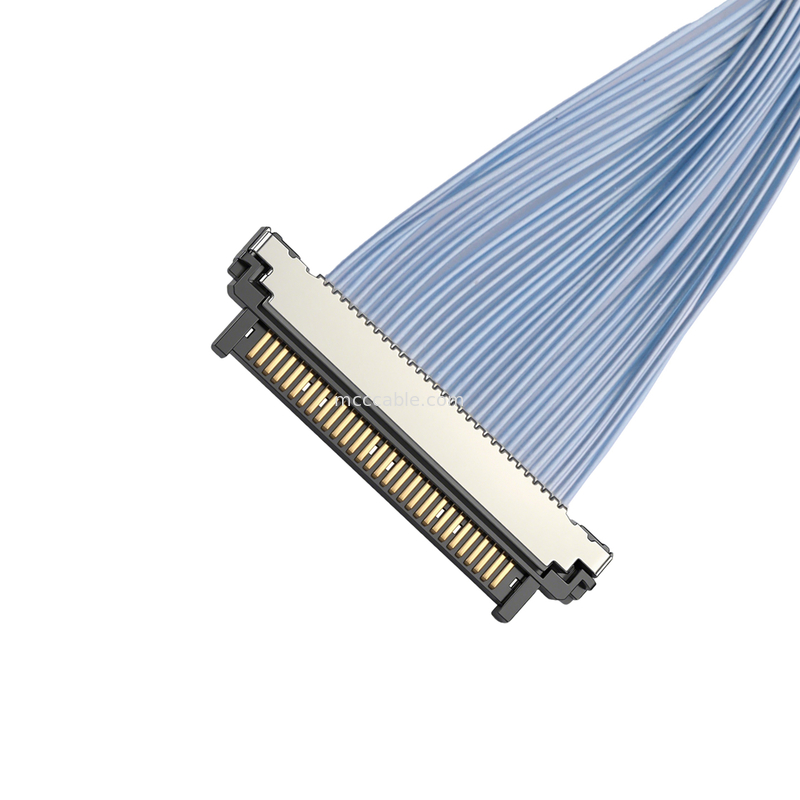

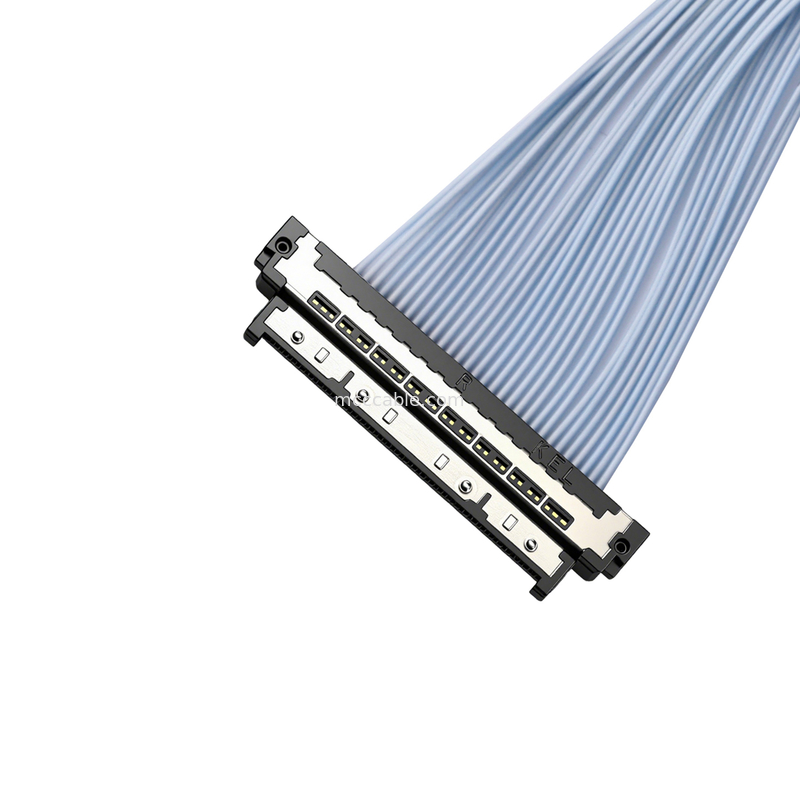

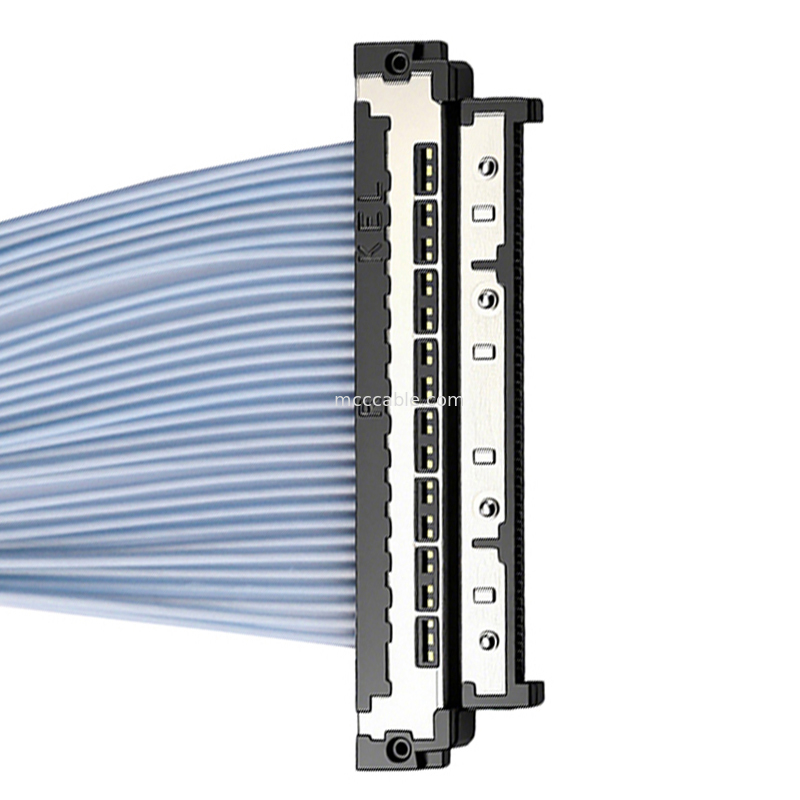

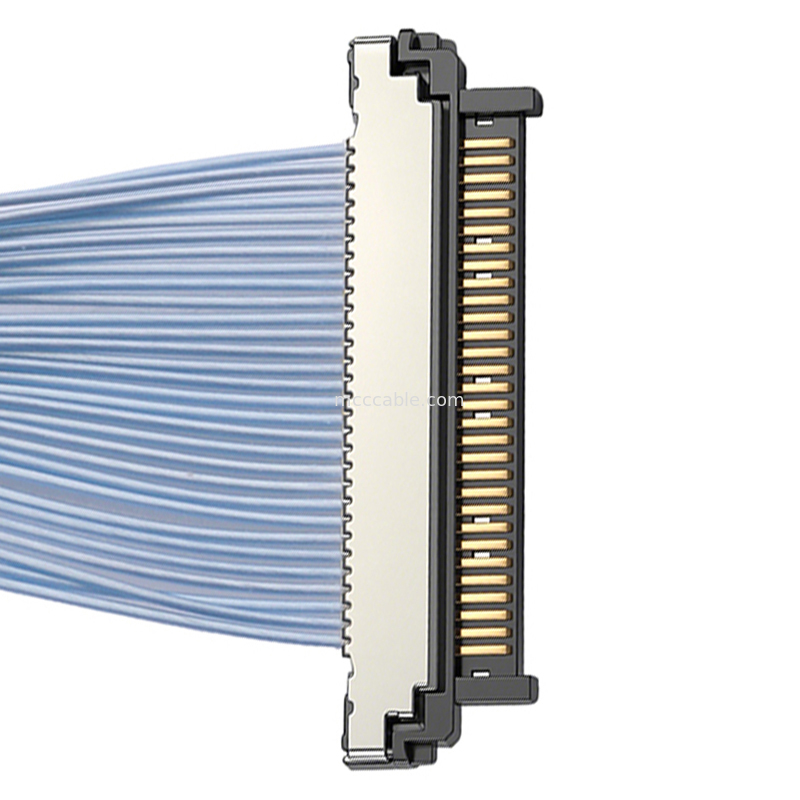

0.4mm Bulk USL20-30SS-011B - Cost-Effective
ZIF FPC Connector for Mass Production
USL20-30SS-011B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-011B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-011B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we have a factory backed by more than 15 years of design and manufacturing experience.
Q2. Is there any certification?
A:Yes, we are accredited with ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is our specialty?
A:We specialize in designing products tailored to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we process OEM/ODM orders. OEM has a 100-piece minimum, ODM requires 1,000
pieces, and mould costs are design-dependent.
Q5. How long will it need for completing an order?
A:Small orders or stock products take less than 3 days to prepare and deliver, with shipping
varying from 7 days to 1 month based on your preference. Large orders need 5–21 working
days for production and materials, 1–3 days for testing, and 1 day for packing, totaling 7–25
days without shipping.
Q6. As long term clients, what other service we can get?
A: Long-term clients enjoy new product samples with orders to test market potential and
resell in their region, reduced costs for smaller purchases, and assistance with branded
promotional graphics.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. For bulk orders, we provide 0.3%–0.5%
additional units for defects. If you get over 5 faulty units (below 0.1%), notify sales with
photos, and we’ll replace or refund.
Q8. Do you accept free sample order?
A: Yes, sample orders are welcome, and some samples are free, aside from shipping expenses.
