Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-010B

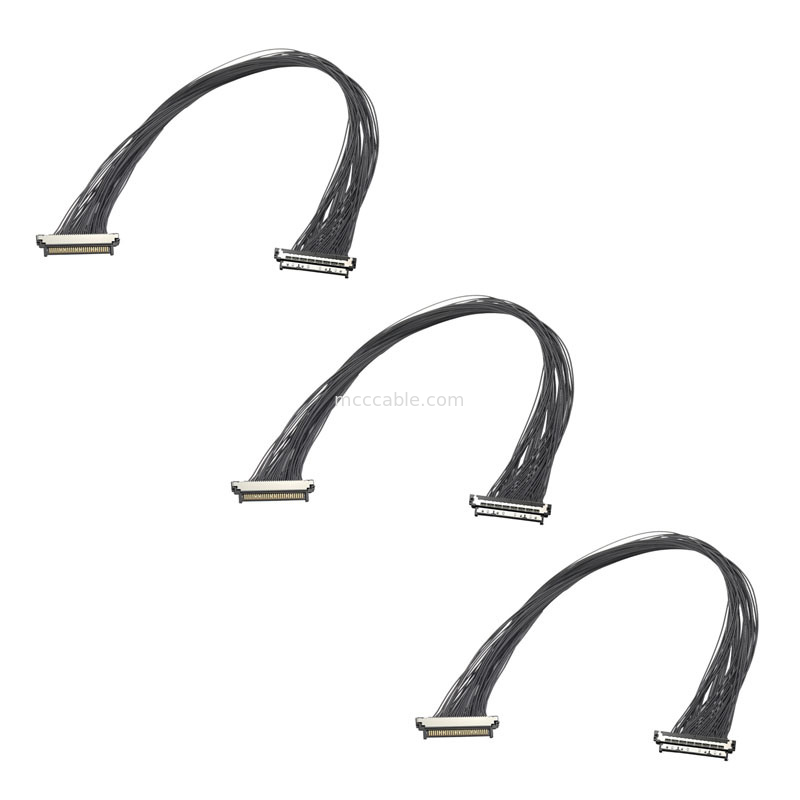

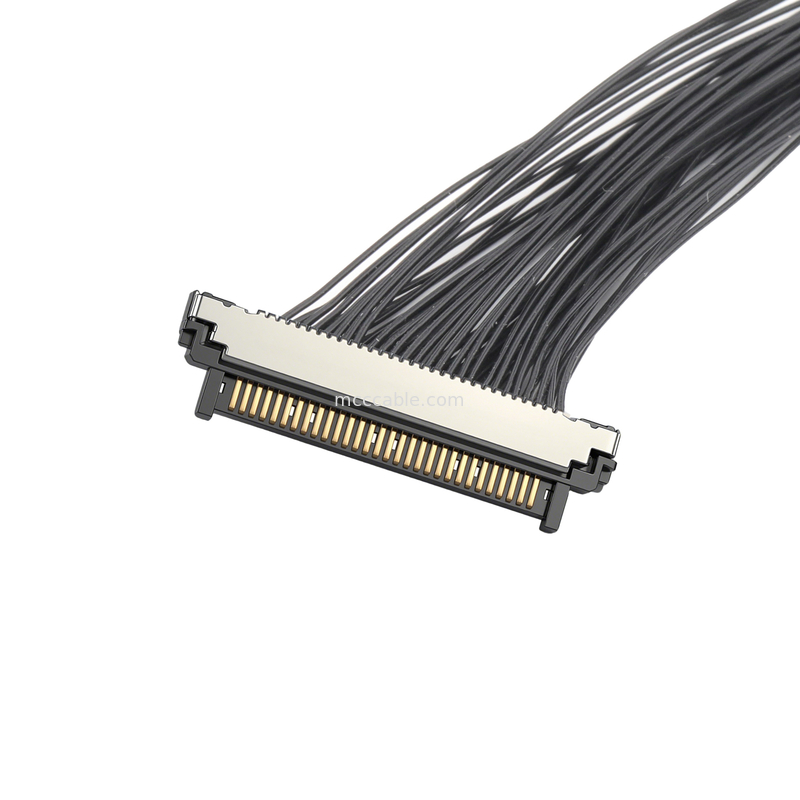

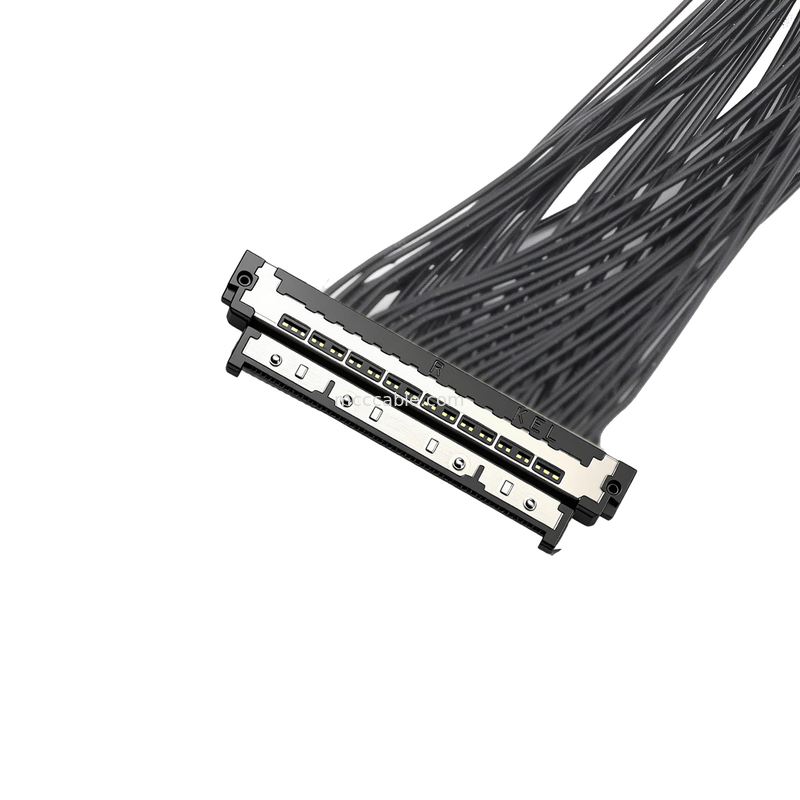

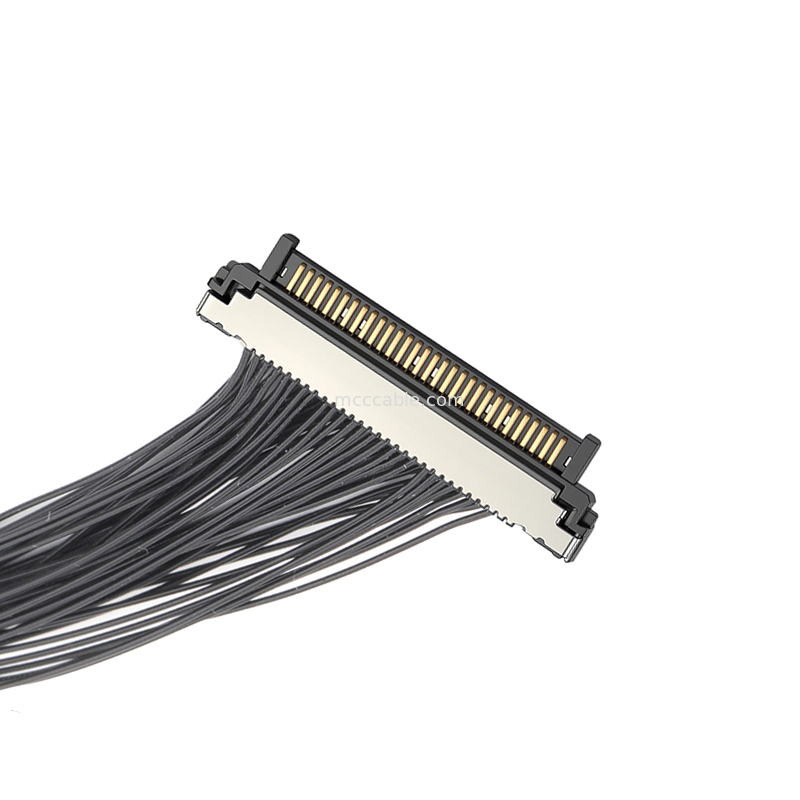

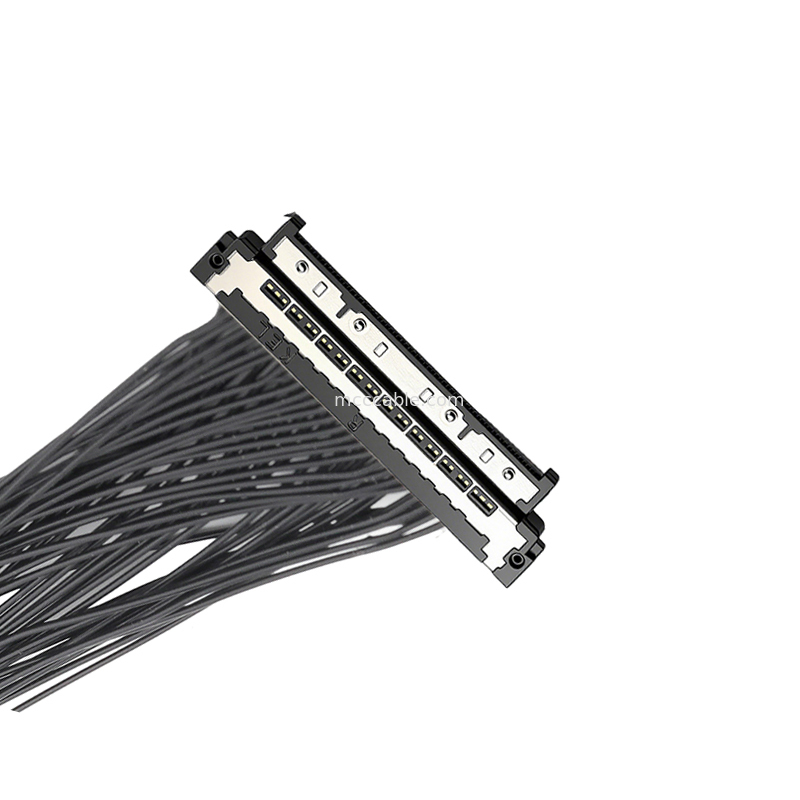

USL20-30SS-010B 0.4mm - Ultra-Slim FPC Socket
for Embedded Vision Systems
USL20-30SS-010B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-010B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-010B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we’re proud of our 15+ years of design and manufacturing expertise.
Q2. Is there any certification?
A:Absolutely, we are certified with ISO9001, ISO14001, TS16949, ISO13485, and UL standards.
Q3. What is our specialty?
A:We’re experts in designing products for specific application purposes.
Q4. Do you accept OEM/ODM orders?
A: Yes, we process OEM/ODM orders. OEM has a 100-piece minimum, ODM requires 1,000
pieces, and mould costs are design-dependent.
Q5. How long will it need for completing an order?
A: For small or available products, preparation and delivery take under 3 days, with shipping
varying from 7 days to 1 month based on client choice. For large orders, material prep and
production take 5–21 working days, testing takes 1–3 days, and packing takes 1 day, so 7–25
days total, excluding shipping.
Q6. As long term clients, what other service we can get?
A: As valued clients, you’ll get new products with orders to assess market viability and secure
reselling rights in your area, lower prices on smaller orders, and support with custom-branded
promotional images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All cables have a 12–36-month warranty. For large orders, we add 0.3%–0.5% spare units
for defects. If over 5 units (under 0.1%) are faulty, reach out to sales with photos, and we’ll replace
or refund.
Q8. Do you accept free sample order?
A: Yes, sample orders are welcome, and some samples are free, aside from shipping expenses.
How to contact us?
Send your inquiry details below and press "send" now! Free samples and top pricing await. If a
product isn’t listed on our site, reach out, and we’ll find a high-quality equivalent at a good price.
Send your inquiry directly to us
