Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-008C

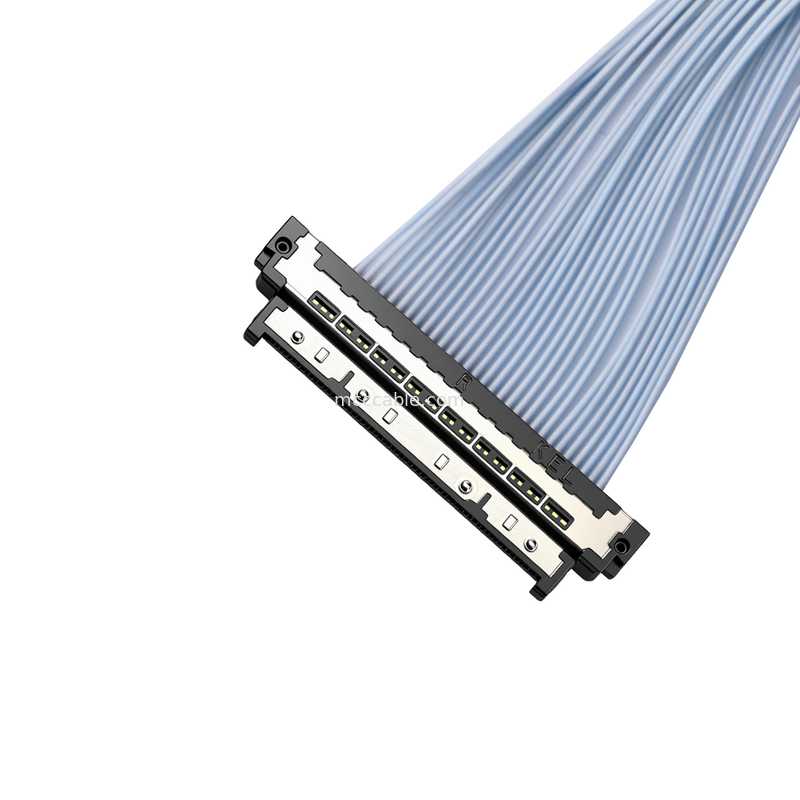

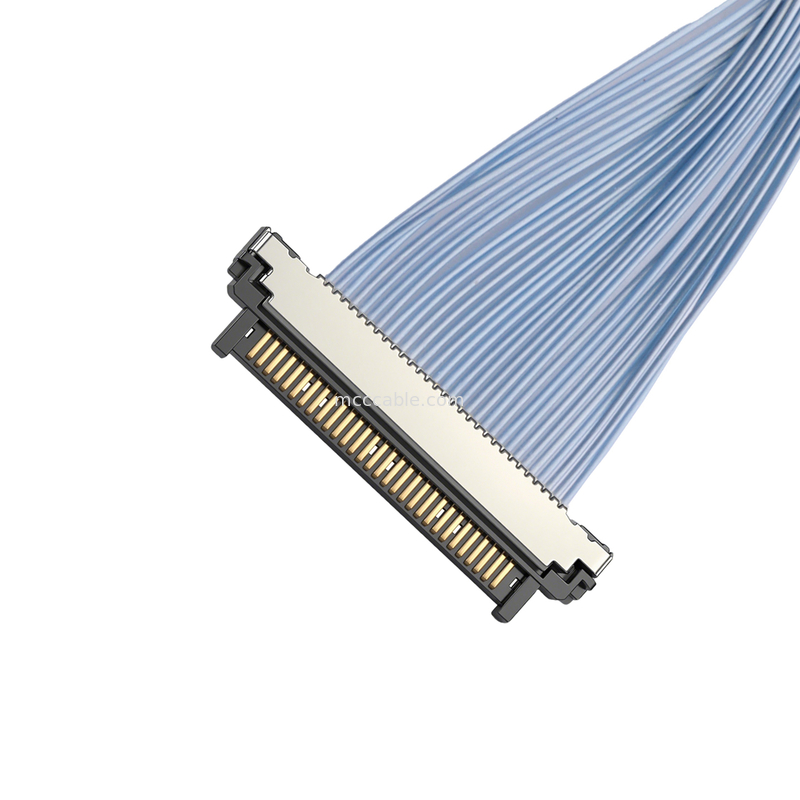

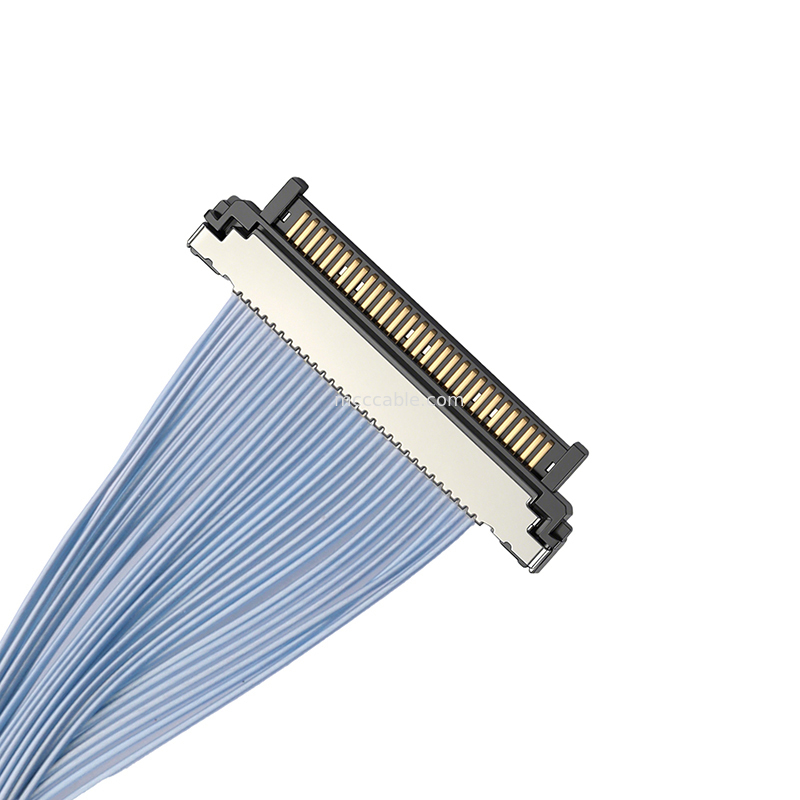

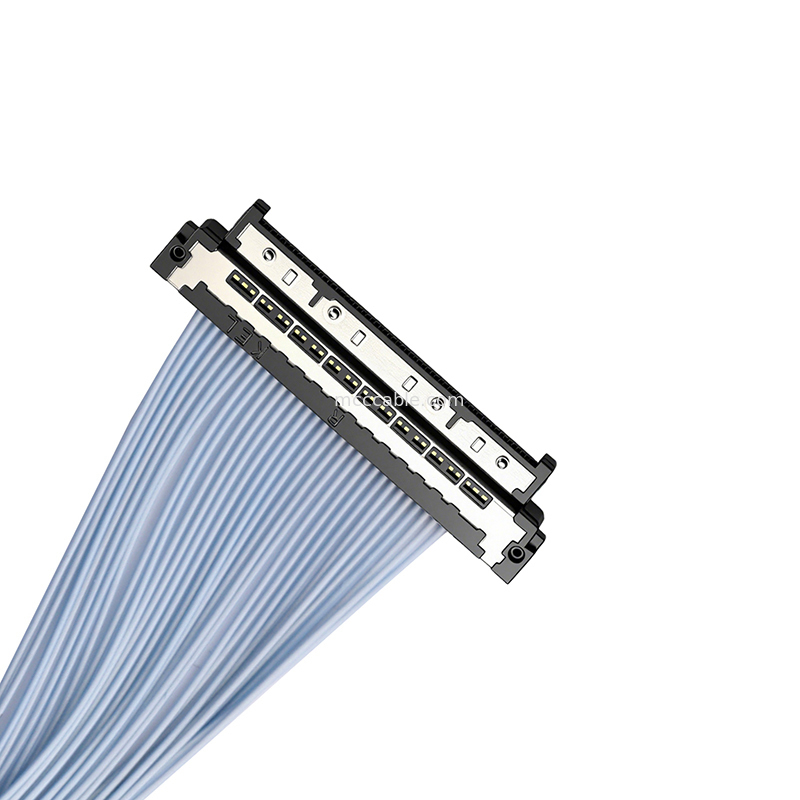

0.4mm ZIF USL20-30SS-008C - High-Density
FPC/FFC Connector for Digital Imaging Systems
USL20-30SS-008C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-008C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-008C Core Advantages:
KEL connectors combine compact design with high-speed data transfer,
supporting next-generation imaging equipment connectivity.
Uses: Digital video/still cameras, surveillance systems, automotive navigation,
ultrasound, endoscopes, ETC systems, and CT machines.
USL20-30SS-008C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we have a factory backed by more than 15 years of design and manufacturing experience.
Q2. Is there any certification?
A:Indeed, our certifications cover ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:Our strength is in developing products suited to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Indeed, we take OEM/ODM orders. OEM requires a minimum of 100 units, ODM needs
1,000 units, and mould fees vary by design.
Q5. How long will it need for completing an order?
A: Small orders or stock products take less than 3 days to prepare and deliver, with shipping
varying from 7 days to 1 month based on your preference. Large orders need 5–21 working
days for production and materials, 1–3 days for testing, and 1 day for packing, totaling 7–25
days without shipping.
Q6. As long term clients, what other service we can get?
1. As established clients, you’ll be offered new products with orders to assess market potential
and gain regional reselling rights, lower fees on small orders, and help with custom logo
promotional visuals.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. For bulk orders, we provide 0.3%–0.5%
additional units for defects. If you get over 5 faulty units (below 0.1%), notify sales with
photos, and we’ll replace or refund.
Q8. Do you accept free sample order?
A: Yes, sample orders are welcome, and some samples are free, aside from shipping expenses.
