Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-006B

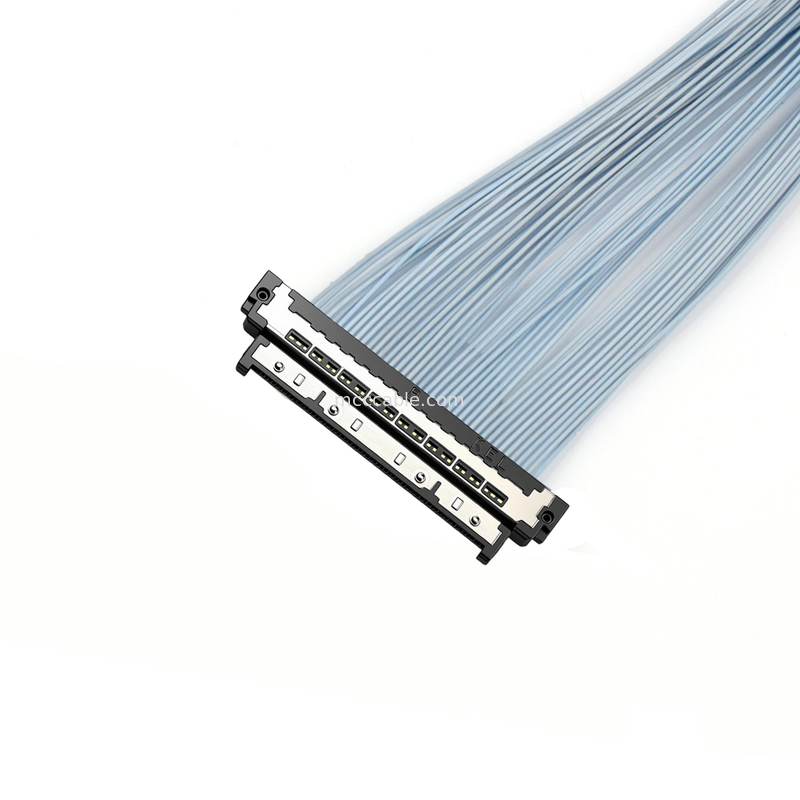

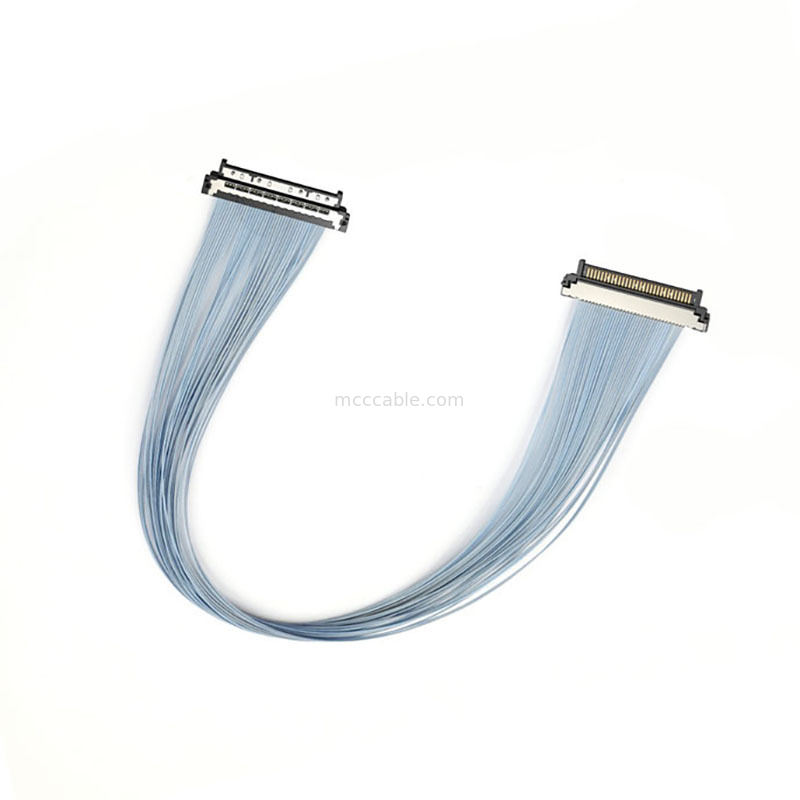

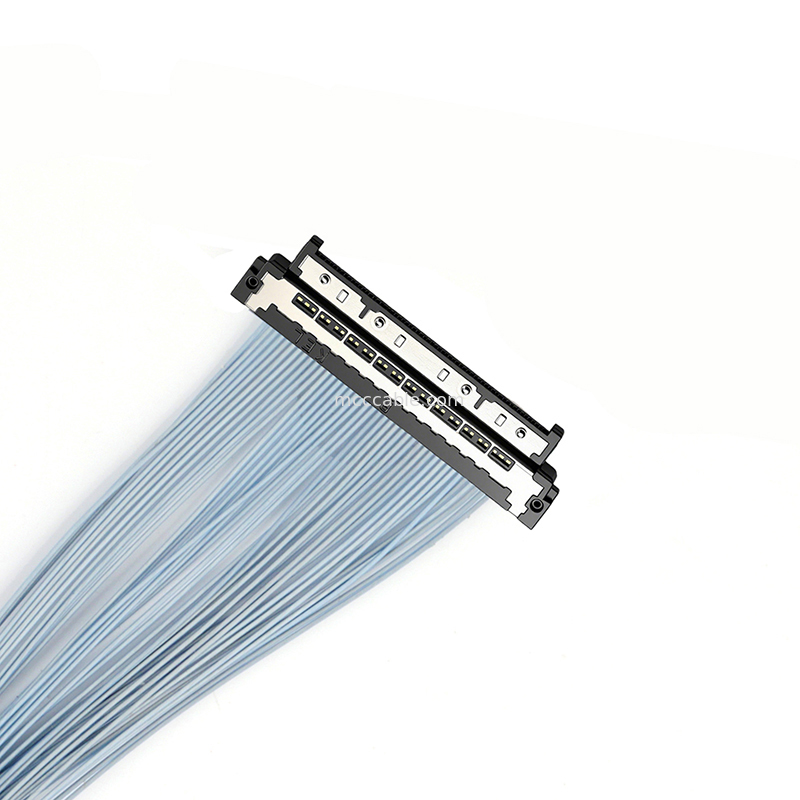

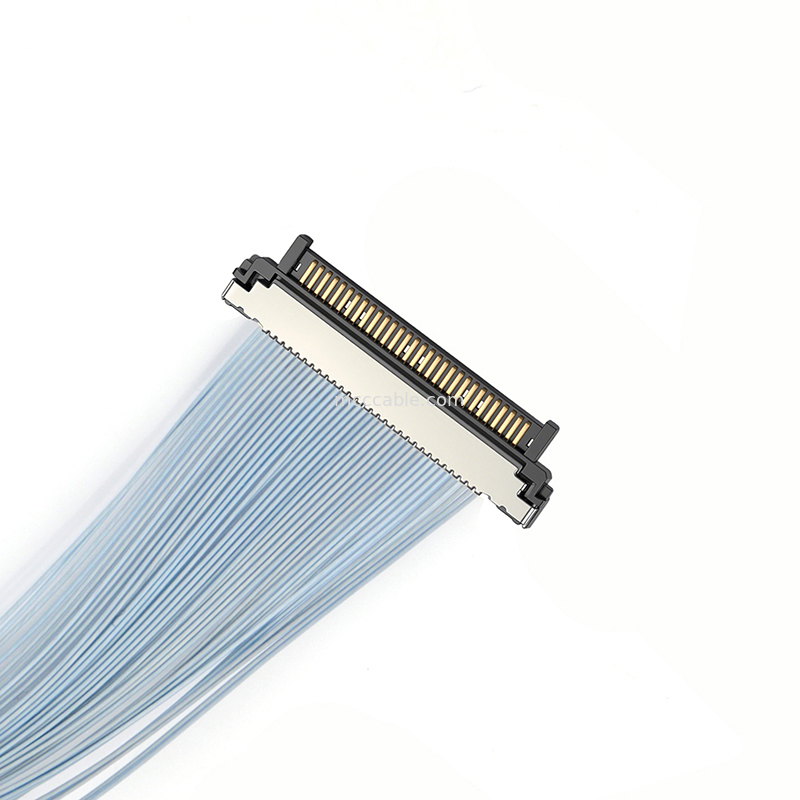

USL20-30SS-006B 0.4mm Fine Pitch FFC/FPC
Connector - Supplier for CCTV Manufacturers
USL20-30SS-006B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-006B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
Designed for minimal size and high-speed performance, KEL connectors
provide state-of-the-art connectivity for imaging solutions.
Uses: Digital video/still cameras, security cameras, automotive navigation,
ultrasound machines, endoscopes, ETC, and CT systems.
USL20-30SS-006B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Absolutely, we boast over 15 years of expertise in design and manufacturing!
Q2. Is there any certification?
A:Yes, we hold certifications including ISO9001, ISO14001, TS16949, ISO13485, and UL Certified.
Q3. What is our specialty?
A:We specialize in designing products tailored to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we welcome OEM/ODM orders. OEM orders require a minimum of 100 pieces, while
ODM orders need 1,000 pieces, with a mould fee based on the design.
Q5. How long will it need for completing an order?
A: For small orders or in-stock products, preparation and delivery take under 3 days, with
shipping times varying from 7 days to 1 month based on client preference. For large orders,
including material preparation and production, it takes 5–21 working days depending on quantity,
plus 1–3 days for testing and 1 day for packing, so 7–25 days total, excluding shipping.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
