Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-007B

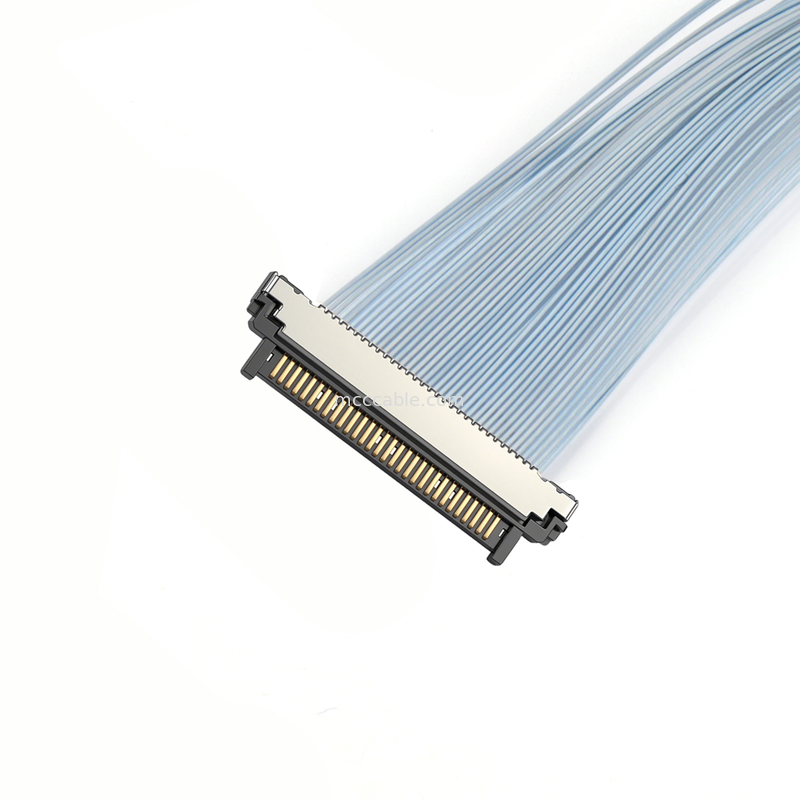

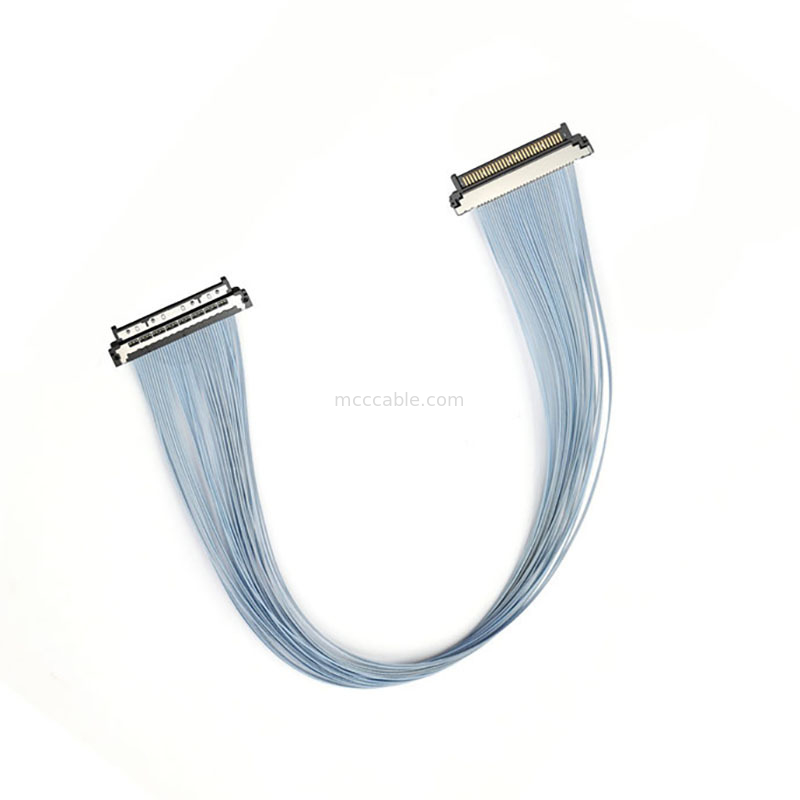

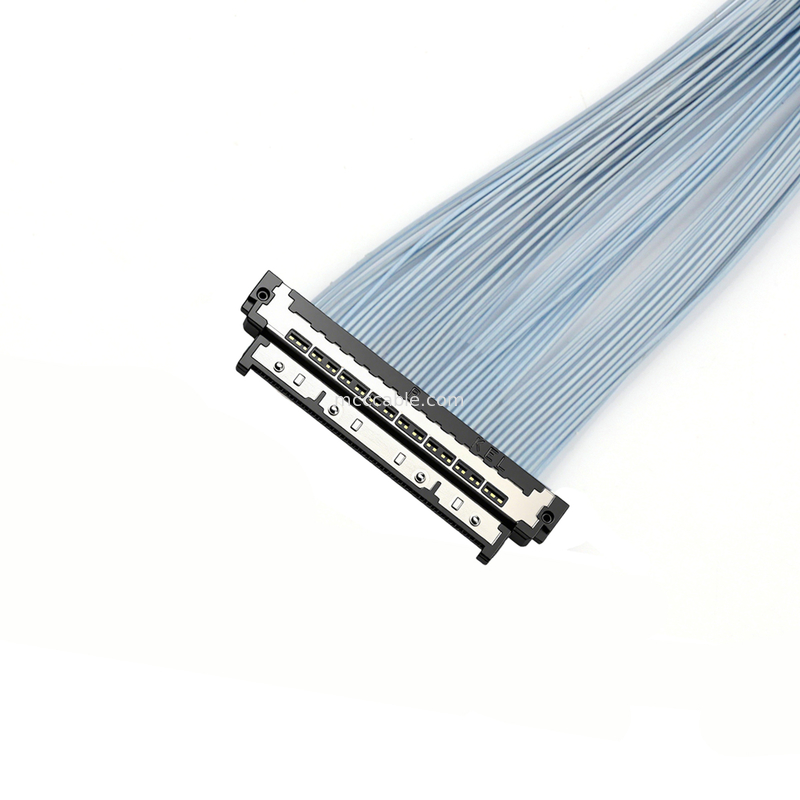

0.4mm USL20-30SS-007B - Professional Connector
for HD Security & Industrial Cameras
USL20-30SS-007B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-007B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-007B Product Features:
With a focus on miniaturization and swift data transfer, KEL connectors enable
top-tier connectivity for imaging applications.
Applications: Video and still digital cameras, security cameras, car navigation
systems, ultrasound devices, endoscopes, ETC, and CT scanners.
USL20-30SS-007B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we have a factory backed by more than 15 years of design and manufacturing experience.
Q2. Is there any certification?
A:Absolutely, we have certifications such as ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:We specialize in product design tailored to application needs.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: Small orders or items in stock are prepared and delivered in under 3 days, with shipping taking
7 days to 1 month based on client preference. Large orders require 5–21 working days for materials
and production, 1–3 days for testing, and 1 day for packing, totaling 7–25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Long-term clients enjoy new product samples with orders to test market potential and resell in
their region, reduced costs for smaller purchases, and assistance with branded promotional graphics.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
