30-Pin 0.4mm Pitch ZIF Connector USL20-30SS-008B - Used in AI Smart Cameras

30-Pin 0.4mm Pitch ZIF Connector USL20-30SS-008B - Used in AI Smart Cameras

30-pin ZIF connector for AI cameras

0.4mm pitch ZIF connector

USL20-30SS-008B micro coaxial connector

Place of Origin:

China

Brand Name:

Customization

Certification:

UL ,ISO13485 , ISO9001.2005 , ISO14001

Model Number:

USL20-30SS-008B

Contact Us
Request A Quote
Product Details
Product Name::
Usl Series Micro Coaxial Cable Kel USL20-30SS Idc Cable
Connector::
USL20-30SS
Contact Pitch::
0.4mm Pitch
Matching Port::
1 TO N
Service::
Design
Length::
Customize
Highlight:

30-pin ZIF connector for AI cameras

,

0.4mm pitch ZIF connector

,

USL20-30SS-008B micro coaxial connector

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Contact us
Packaging Details
PE inner, carton outer
Delivery Time
2-10 days for samples,3-4 weeks for massive
Payment Terms
T/T,Western Union
Supply Ability
15,000pcs/week
Product Description

30-Pin 0.4mm Pitch ZIF Connector USL20-30SS-
008B - Used in AI Smart Cameras





USL20-30SS-008B Material & Surface Treatment:

Insulator Material LCP (glass fiber-filled) UL94V-0 material, black
Contact Material Copper alloy
Contact Finish Nickel-plated base, gold-plated finish
Shell Material Copper alloy
Shell Finish Nickel-plated base, tin-copper plated finish
Cover Material [USL20] LCP (with glass fiber) UL94V-0 material, white


USL20-30SS-008B Ratings:

Rated Current 0.25 A per contact
Contact Resistance 100 mΩ or less
Withstand Voltage 200 V AC, 1 minute
Insulation Resistance 250 V DC, 100 mΩ min.
Operating Temperature Range -40 to +85°C
Applicable Cable AWG#42 micro coaxial cable

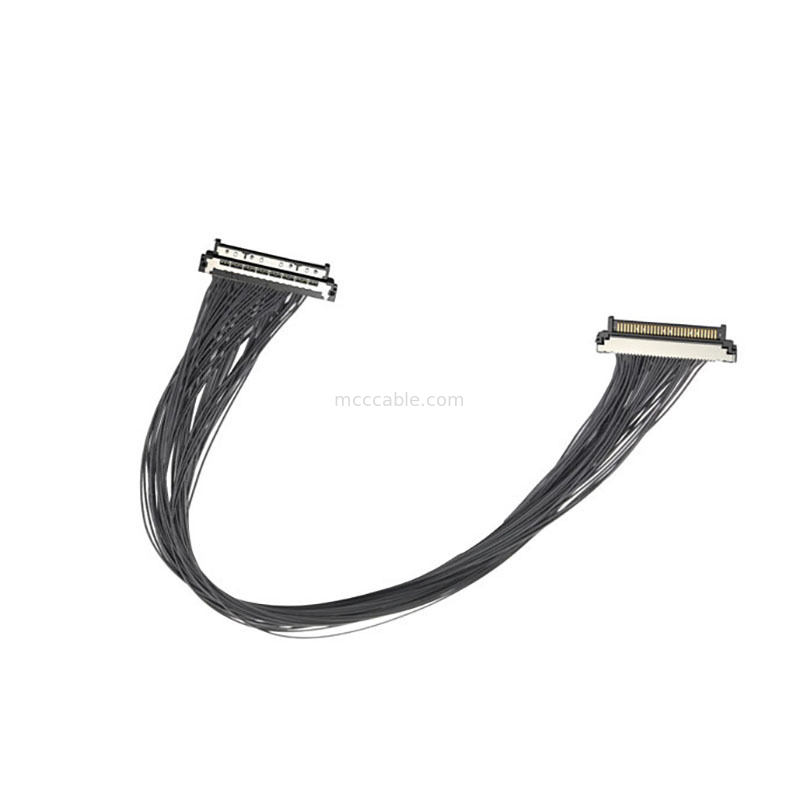

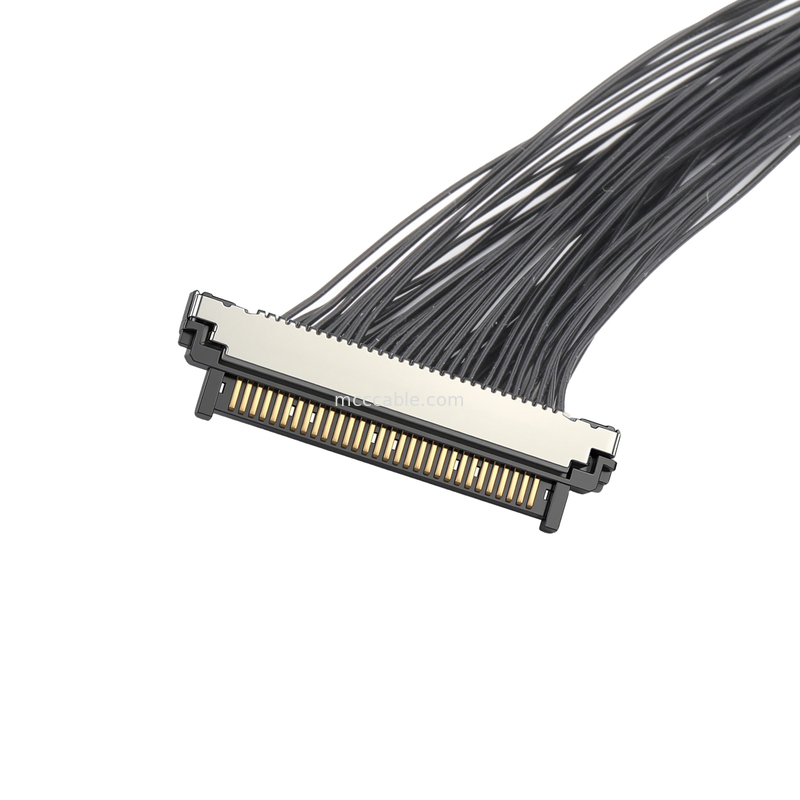

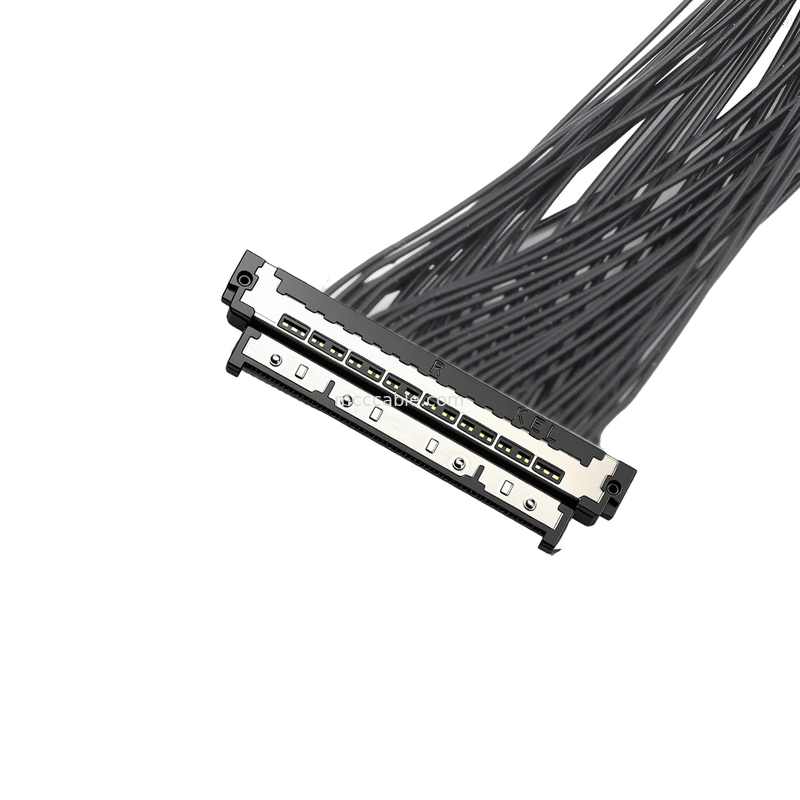

30-Pin 0.4mm Pitch ZIF Connector USL20-30SS-008B - Used in AI Smart Cameras 0

USL20-30SS-008B Competitive Edge:
KEL connectors are optimized for compactness and high-speed performance,
delivering advanced technology for imaging applications.
Applications: Digital video and still cameras, surveillance systems, car navigation,
ultrasound machines, endoscopes, ETC, and CT scanners.


USL20-30SS-008B Recommended models:

USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B

USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B

USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B

USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B

Recommended line number:

#42 AWG Micro coaxial cables

Current rating :

0.25A per contact

Contact resistance:

100mΩ max.

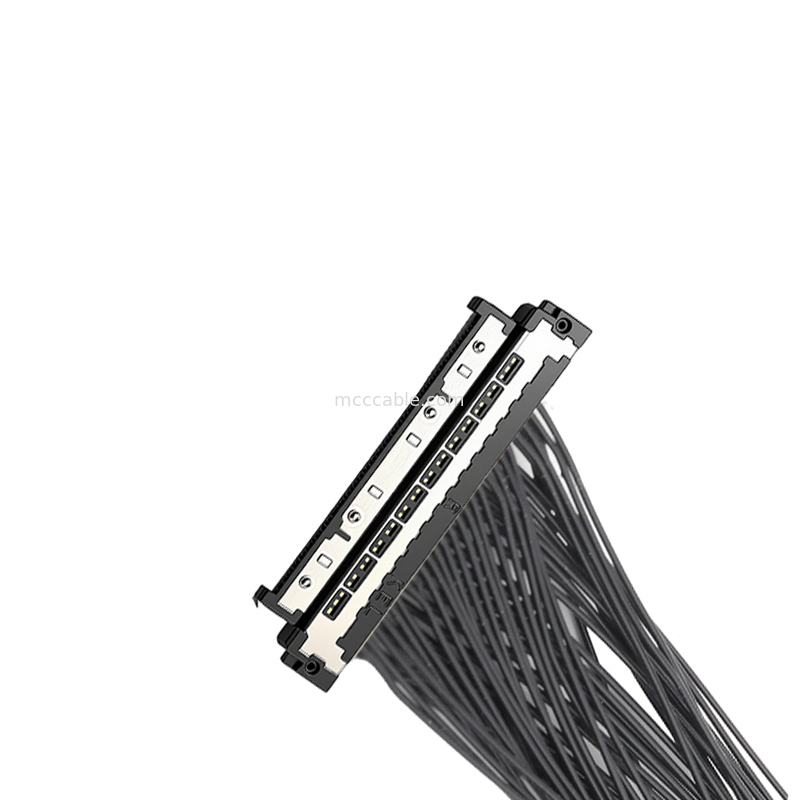

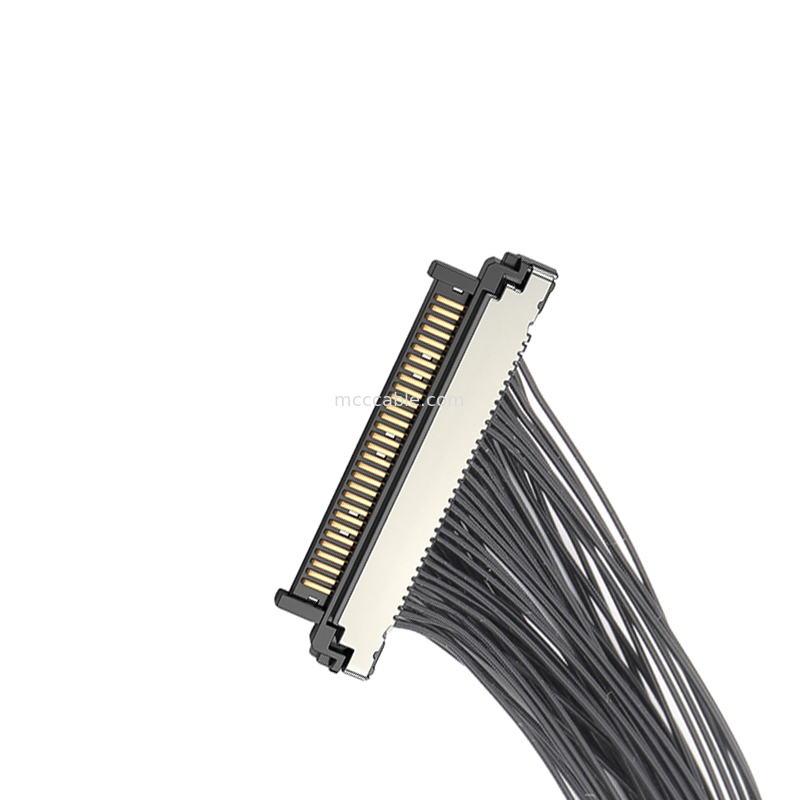

30-Pin 0.4mm Pitch ZIF Connector USL20-30SS-008B - Used in AI Smart Cameras 1
