Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
20-Pin DisplayPort Male to Female Cable
20-Pin DisplayPort Male to Female Cable, Shielded
6.0mm OD, 100Ω Impedance
20-Pin DisplayPort Male to Female Cable:
| Parameter | Specification |

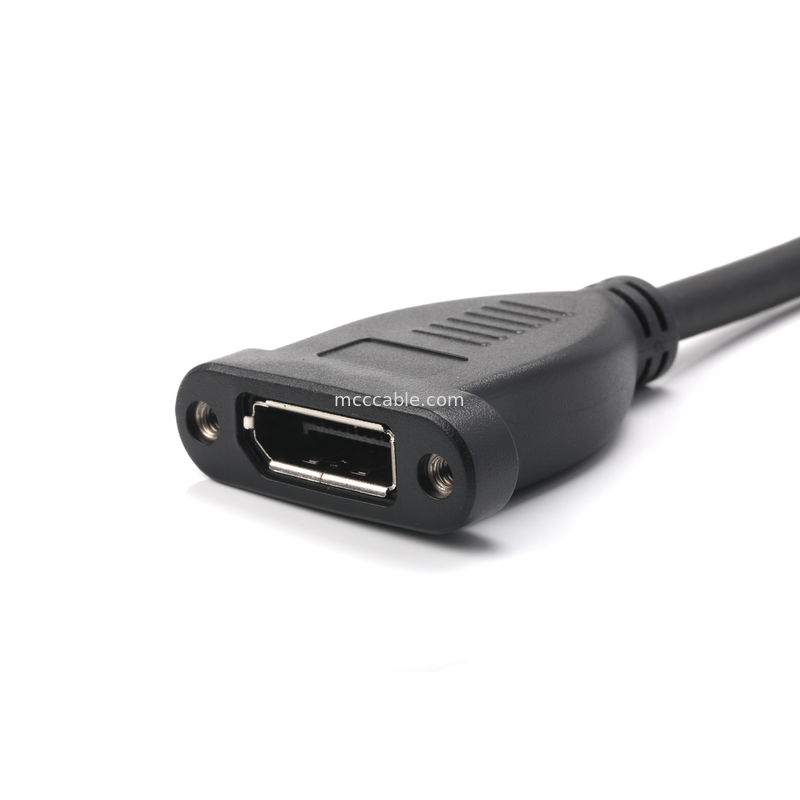

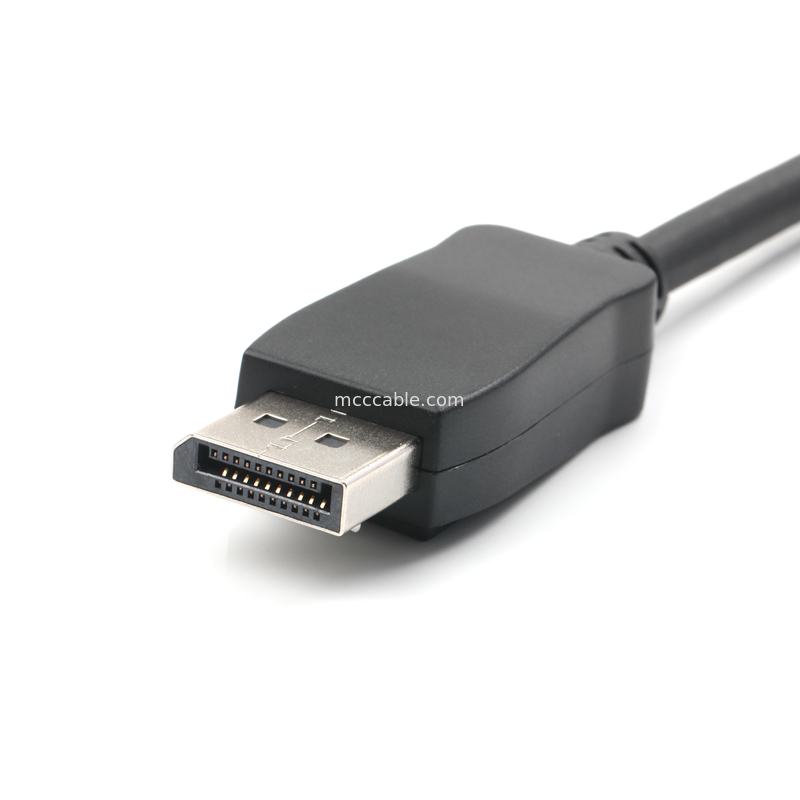

| Connectors | 20-pin DP Male + Female, black rubber core, gold-plated terminals, nickel-plated shells |
| Cable Construction | - UL20276 wire: [30AWG x1P+D+HM]x5 + 30AWGx4C + 28AWGx1C + Al/Mg braid - OD: 6.0mm, black PVC jacket (UL94V-0 flame retardant) |
| Impedance | 100Ω ±15% (twisted pair shielding) |
| Electrical Tests | - 100% open/short/intermittence test - Conductor resistance: ≤5.0Ω - Insulation resistance: ≥10MΩ @300VDC |
| Durability | - Insertion force: ≤44.1N (4.5kgf) - Lifespan: 5,000 mating cycles - Operating temp: -40°C to +85°C |
| Compliance | RoHS, Reach, CP65 compliant |
High-Performance DisplayPort Cable for Demanding Applications
Robust 20-pin DP connectors with gold-plated terminals and nickel-plated
shells ensure stable 4K/8K signal transmission.
Premium shielding: Aluminum/Magnesium braid + twisted pair wiring
(100Ω impedance) to minimize EMI/RFI interference.
Industrial-grade durability: Rated for 5,000 insertion cycles and -40°C to
+85°C operation.
Full compliance: Meets UL94V-0 flame retardancy, RoHS, Reach, and CP65
standards.
Customization Options (As a Manufacturer):
Adjust cable length (standard 1500±30mm) or shielding materials
(e.g., double-braided).
Modify connectors for locking mechanisms or alternative plating (e.g., full gold).
Volume production with consistent OD tolerance (±0.1mm) and 100% electrical
testing.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
