Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
40-Pin Micro-Coaxial Cable Assembly

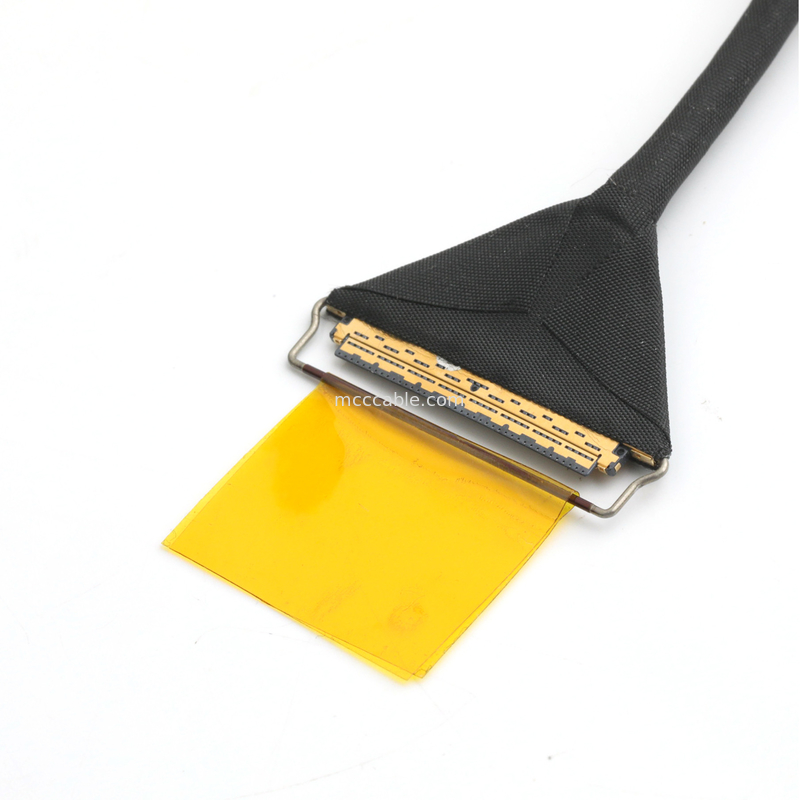

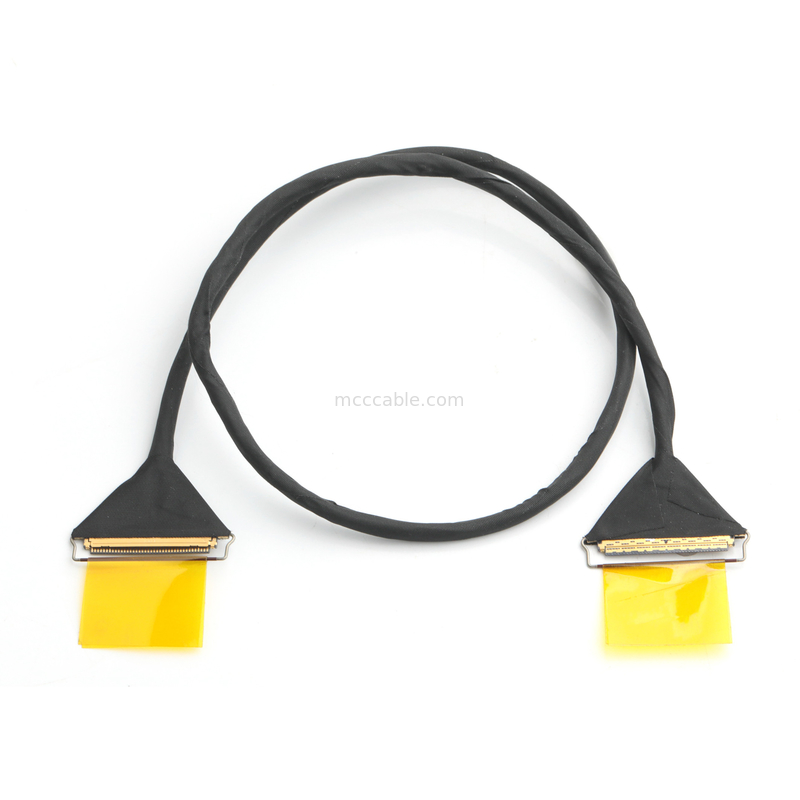

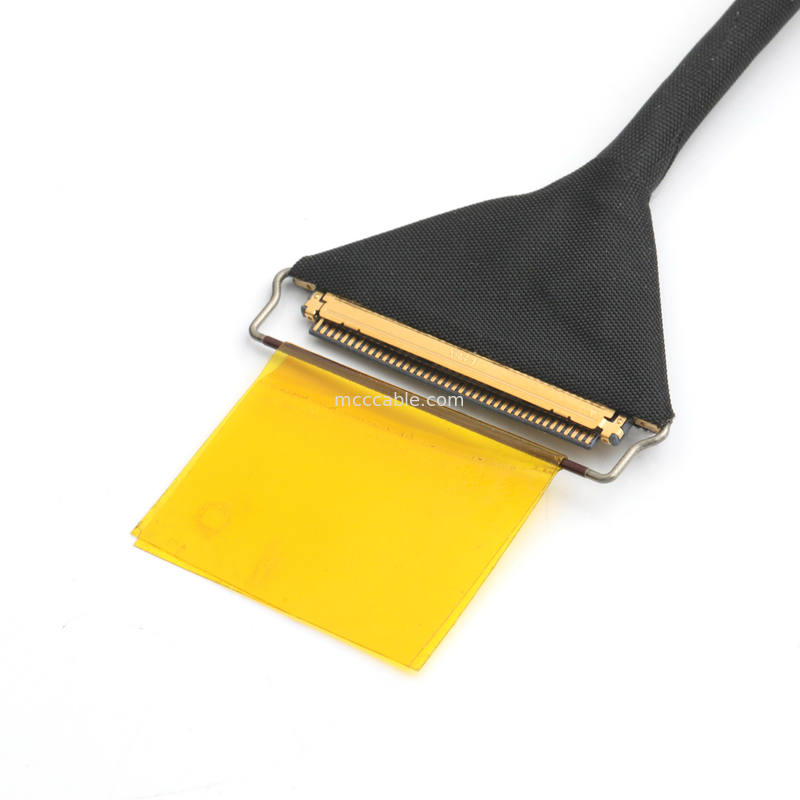

40-Pin Micro-Coaxial Cable Assembly 0.5mm Pitch
40-Pin Micro-Coaxial Cable Assembly:
| Category | Specifications |
| Connectors | Dual 40-pin, 0.5mm pitch |
| Wire | UL1354 40AWG blue, 7/0.03mm silver-tinned copper |
| Shielding | Conductive fabric tape + Kapton tape |
| Electrical Tests | 100% open/short tested, ≤3Ω contact resistance, DC 200V/IR ≥20MΩ |
| Hi-Pot Test | AC 200V/0.1s passed |
| Impedance | 50±5 ohm |
| Temperature Range | -55°C to +200°C |
| Flammability | VW-1 rated |
| Key Features | UV glue fixation, dual-layer EMI protection, 100% QA tested |
Precision Micro-Coaxial Solution for High-Speed Applications
40-pin density: 0.5mm pitch connectors with UV-glued contacts for vibration
resistance.
Premium construction: UL1354-rated 40AWG wire with silver-tinned
conductors and dual-layer EMI shielding.
Rigorously tested: 100% open/short tested, ≤3Ω contact resistance, and
200V AC hi-pot verified.
Signal integrity: 50±5 ohm impedance ensures stable high-frequency
performance.
Custom-ready: Modify shielding, length, or connectors for your exact
requirements.
Optimized for: Medical devices, industrial sensors, and compact electronics
demanding reliable micro-coaxial connections.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
