VHR-4N 15EDGK-3.5 221-2411 Wire Harness 18AWG 4 Pin Custom Cable Assembly

VHR-4N 15EDGK-3.5 221-2411 Wire Harness 18AWG 4 Pin Custom Cable Assembly

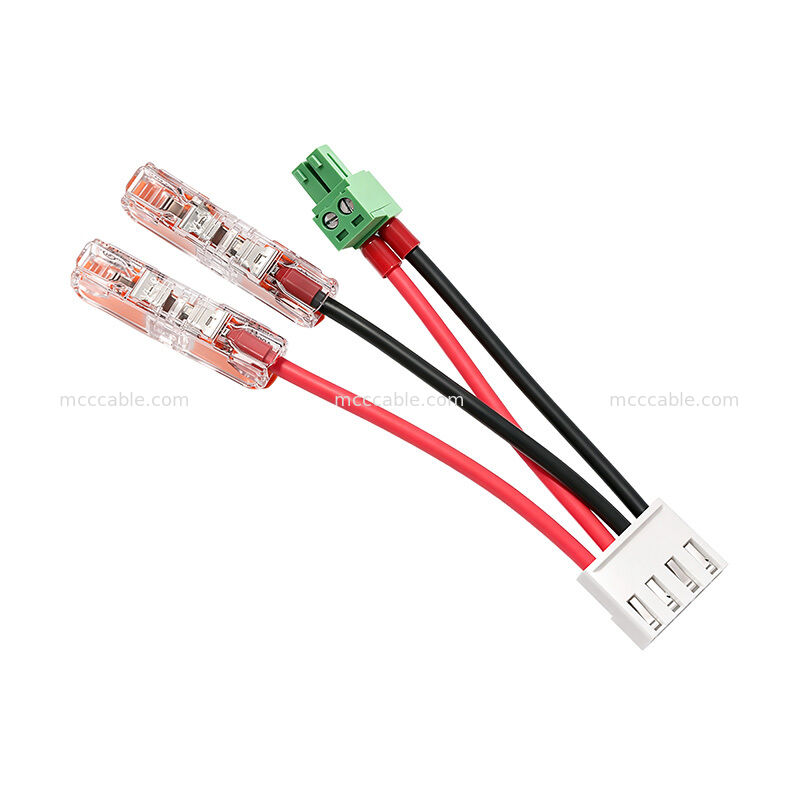

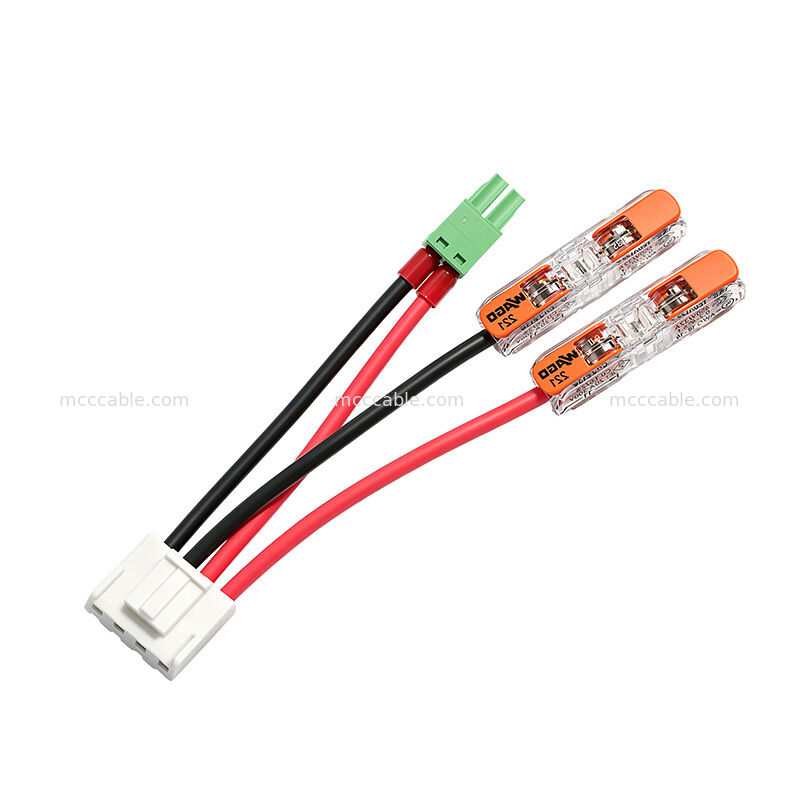

This VHR-4N 15EDGK-3.5 221-2411 wire harness is a pre-assembled multi-connector

cable assembly built with UL1015 18AWG lead wires. The assembly combines a 4-pin

VHR-4N connector at P1, a 2-pin 15EDGK-3.5 green pluggable terminal block at P2,

and two 1-pin 221-2411 in-line lever connectors at P3. The cable length is 60 ±5 mm,

and the harness is 100% tested for open/short before shipment.

The assembly is RoHS compliant and suitable for internal power and signal wiring in

control panels, lighting, and industrial equipment.

VHR-4N 15EDGK-3.5 221-2411 Wire Harness Construction

The VHR-4N 15EDGK-3.5 221-2411 wire harness uses UL1015 18AWG conductors

in a 4-wire configuration.

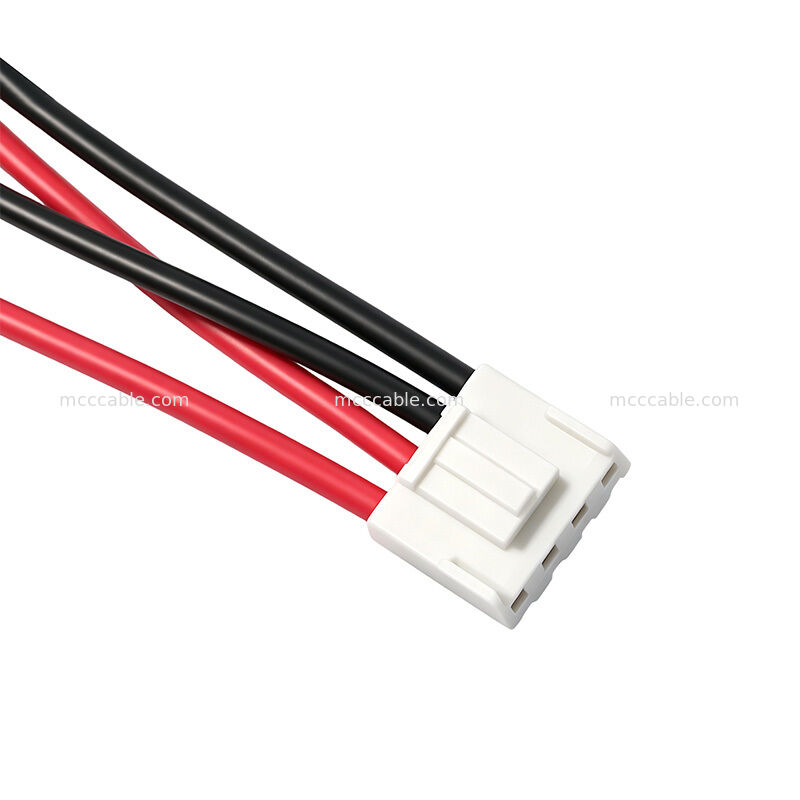

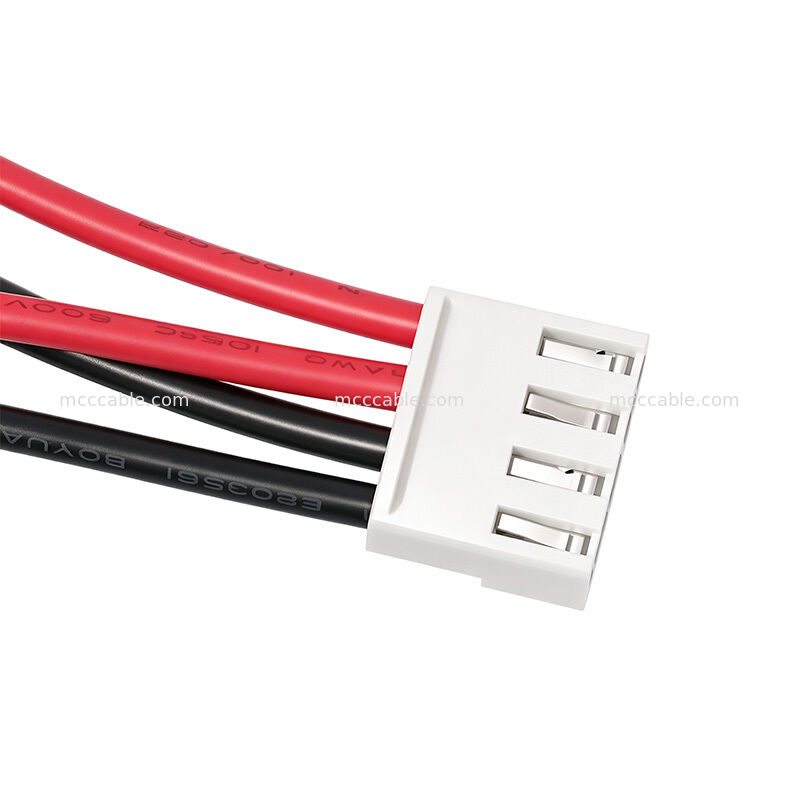

VHR-4N Connector Termination

This wire harness uses a VHR-4N 4-pin connector at P1 for wire-to-board termination. The

3.96mm pitch housing accepts SVH-21T-P1.1 tin-plated crimp terminals and provides a

secure, polarized interface for internal power and signal connections. The 4-pin configuration

supports multiple circuits on a single connector.

15EDGK-3.5 Pluggable Terminal Block

The 15EDGK-3.5 is a 2-pin green pluggable terminal block with 3.5mm pitch, used at P2 for

field wiring connection. The pluggable design allows the mating half to be disconnected without

removing the fixed header, simplifying assembly and maintenance. Screw terminals accept

18AWG wire for reliable electrical contact.

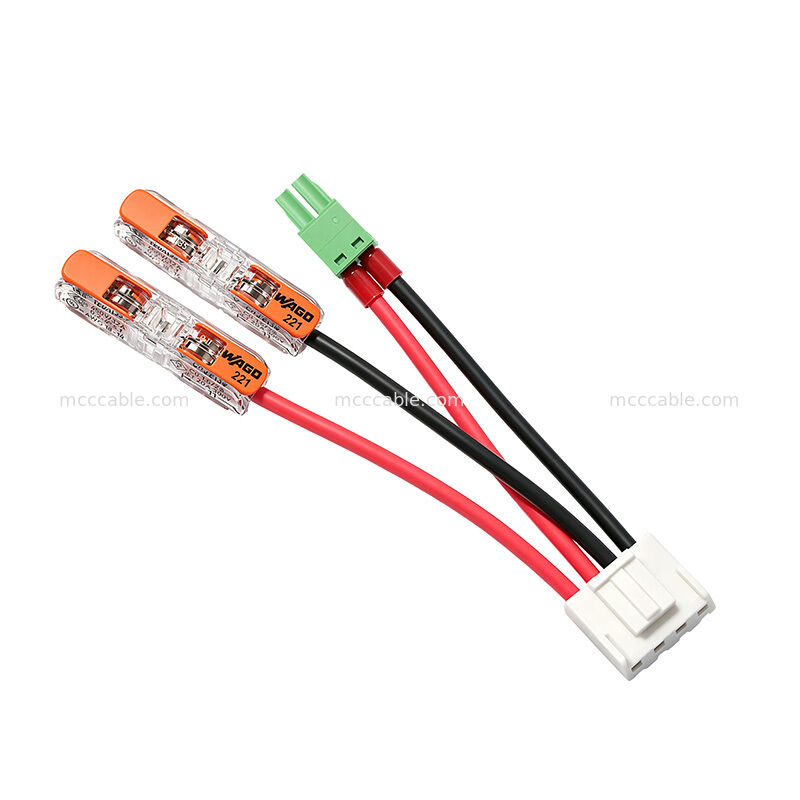

221-2411 In-Line Lever Connector

The 221-2411 is a 1-pin in-line lever connector used at P3, with two pieces on this harness.

The spring lever design allows tool-free wire termination: lifting the lever opens the contact,

and pressing it down locks the wire in place. The transparent housing allows visual

confirmation of full conductor insertion before the lever is closed.

Custom Multi-Connector Wire Harness for OEM Equipment

This custom wire harness is suitable for OEM equipment and electrical systems that require

multiple connector types on a single assembly. The specified configuration is particularly

suited to applications requiring:

• 4-pin VHR-4N wire-to-board connection
• 2-pin 15EDGK-3.5 pluggable terminal block
• 1-pin 221-2411 in-line lever connectors
• UL1015 18AWG conductors
• Defined wire length
• Black and red conductor identification
• RoHS compliance
