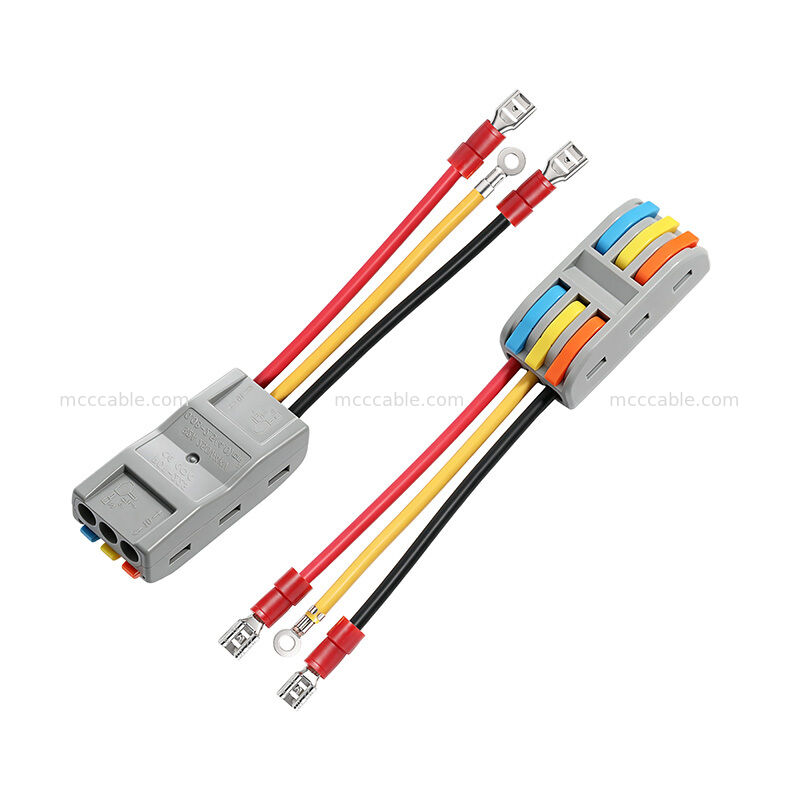

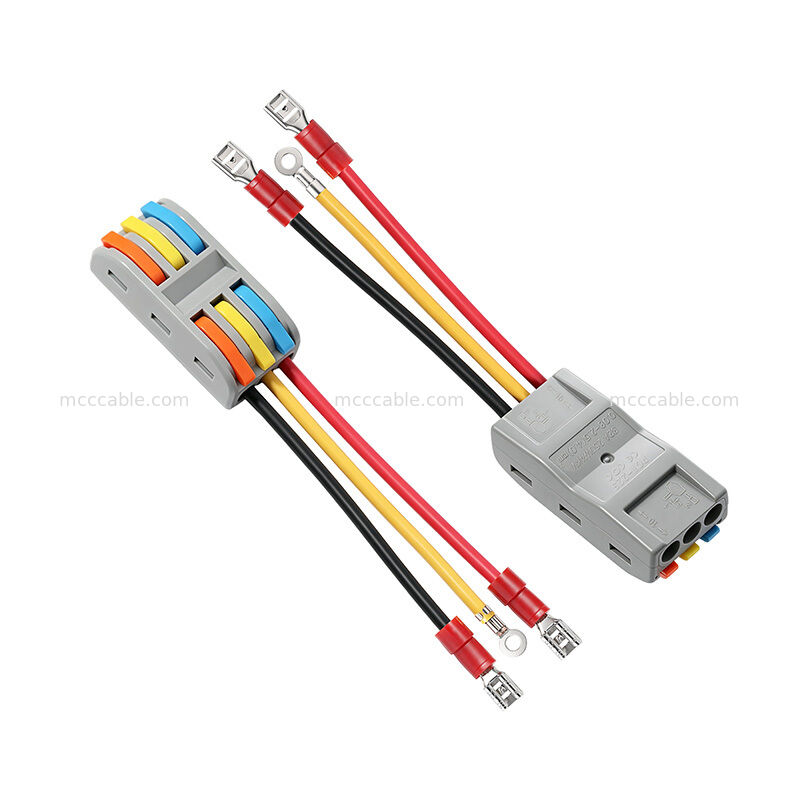

PCT-2-3 3-Pole Lever Nut Wire Harness with 187 Quick Disconnect Terminals

This PCT-2-3 wire harness is a pre-assembled 3-pole power connection solution built with UL1015 18AWG lead wires and Nylon-insulated 187 quick disconnect terminals. The assembly uses a spring-lever in-line connector for tool-free wire termination, with three conductors color-coded red, yellow, and black for L, G, and N identification.

The harness has a specified wire length of 60 ± 5 mm and is manufactured according to the required assembly dimensions and component specifications. The connector housing is V0 rated, and the assembly is RoHS compliant.

PCT-2-3 Wire Harness Overview

This PCT-2-3 wire harness is a pre-terminated 3-pole cable assembly designed for quick, tool-free electrical connections in lighting, control panel, and industrial wiring applications.

The assembly combines an in-line 3-pole spring lever connector with UL1015 18AWG conductors and 187-series quick disconnect terminals, providing a ready-to-install harness rather than loose wire and separate terminals. The three conductors are identified by color: red for L, yellow for G, and black for N.

The defined wire length and pre-crimped termination configuration make the assembly suitable for equipment wiring where a specified, plug-and-play power connection is required.

3-Pole Lever Nut Wire Harness Construction

The PCT-2-3 wire harness uses UL1015 18AWG conductors in a red, yellow, and black configuration.

Lever Nut Connector Termination

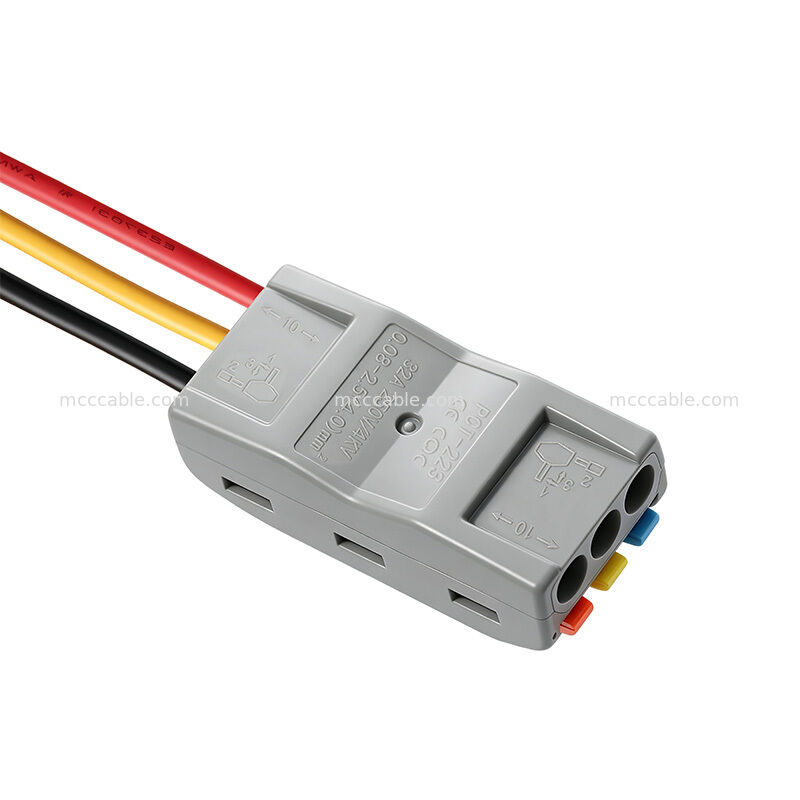

This lever nut wire harness uses a 3-pole spring lever connector for conductor termination. Each pole is independently actuated by a spring lever, allowing solid or stranded wires to be inserted and secured without tools. Lifting the lever opens the contact; pressing it down locks the wire in place with a gas-tight, vibration-resistant connection.

The transparent housing allows visual confirmation that conductors are fully seated before the lever is closed, reducing installation errors and callbacks caused by incomplete insertion.

187 Quick Disconnect Terminal Configuration

Each conductor of the PCT-2-3 harness is pre-crimped with a Nylon-insulated single crimp 187 quick disconnect terminal. The 187 terminal designation refers to the 0.8 × 4.75 mm tab size, which is a common interface for low-voltage power connections in lighting and control equipment.

The red, yellow, and black conductors are maintained as separate power paths, with the Nylon insulation providing additional dielectric protection at the termination point.

Custom 3-Pole Wire Harness for OEM Equipment

This custom wire harness is suitable for OEM equipment and electrical systems that require a compact, pre-terminated 3-pole power connection with lever-actuated termination. The specified configuration is particularly suited to applications requiring:

• 3-pole power connection

• Tool-free lever nut termination

• UL1015 18AWG conductors

• Pre-crimped 187 quick disconnect terminals

• Defined wire length

• Red/yellow/black conductor identification

• V0 rated connector housing

• RoHS compliance
