Custom TWN4 USB 2.0 Cable Assembly 20cm 28AWG Shielded 8 Position Connector

TWN4 USB 2.0 Cable Assembly

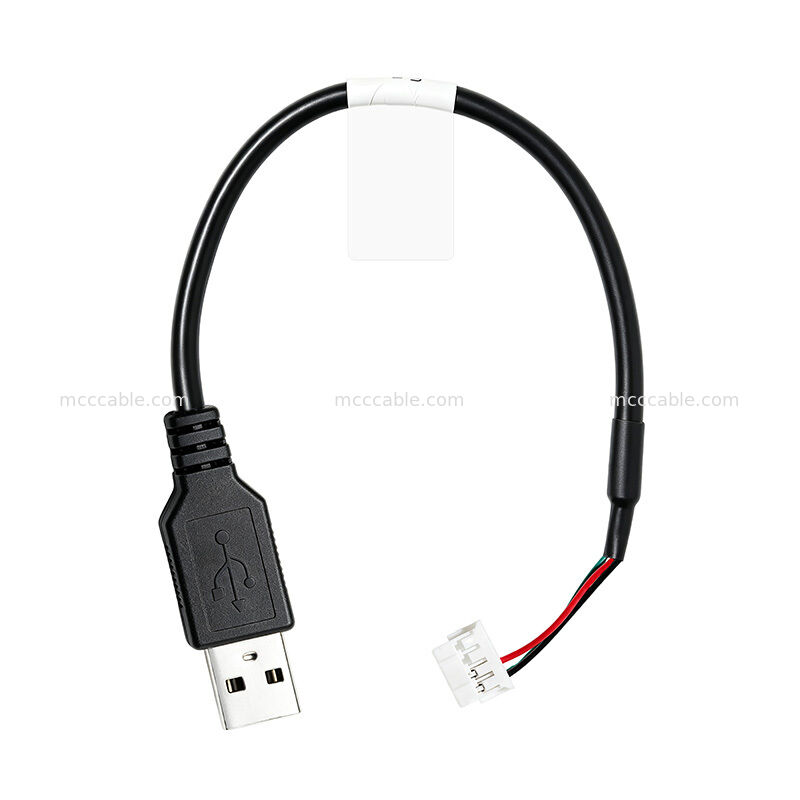

The TWN4 USB 2.0 Cable Assembly is a custom 20 cm cable assembly featuring a USB

Type-A male connector and an 8-position connector. The cable uses a twisted and

shielded construction with UL2725 wire.

The specified cable length is 200 ± 10 mm, with the cable structure designed according

to the specified USB 2.0 connection requirements.

TWN4 USB 2.0 Cable Assembly Specifications

TWN4 20cm USB Cable Assembly

The TWN4 USB cable assembly has a specified overall length of 200 ± 10 mm, corresponding

to approximately 20 cm.

The drawing also specifies a 100 ± 10 mm cable section and a 30 ± 5 mm dimension near

the connector area.

TWN4 USB 2.0 Cable Connector

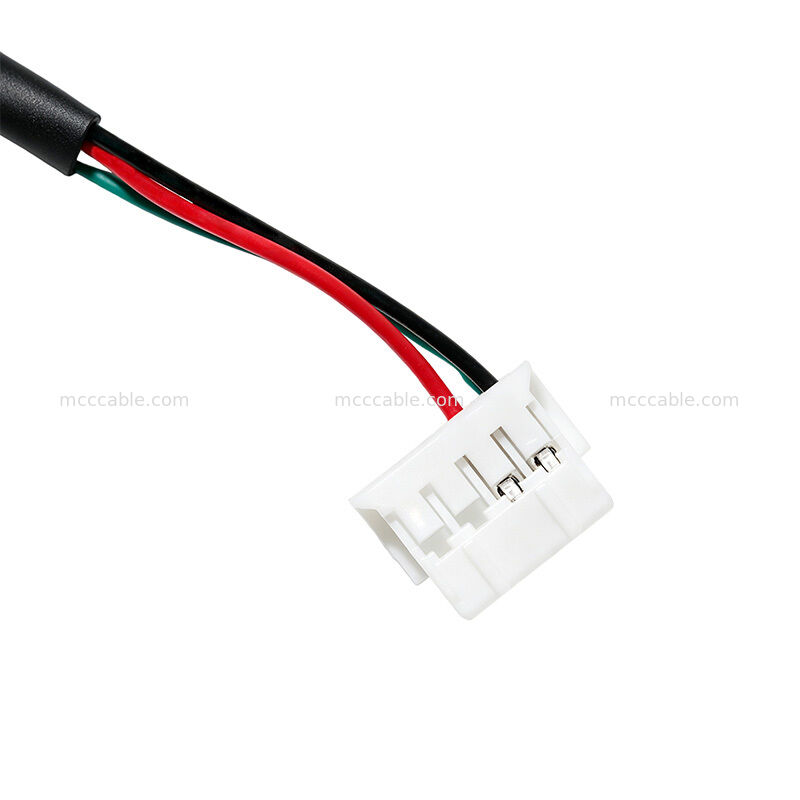

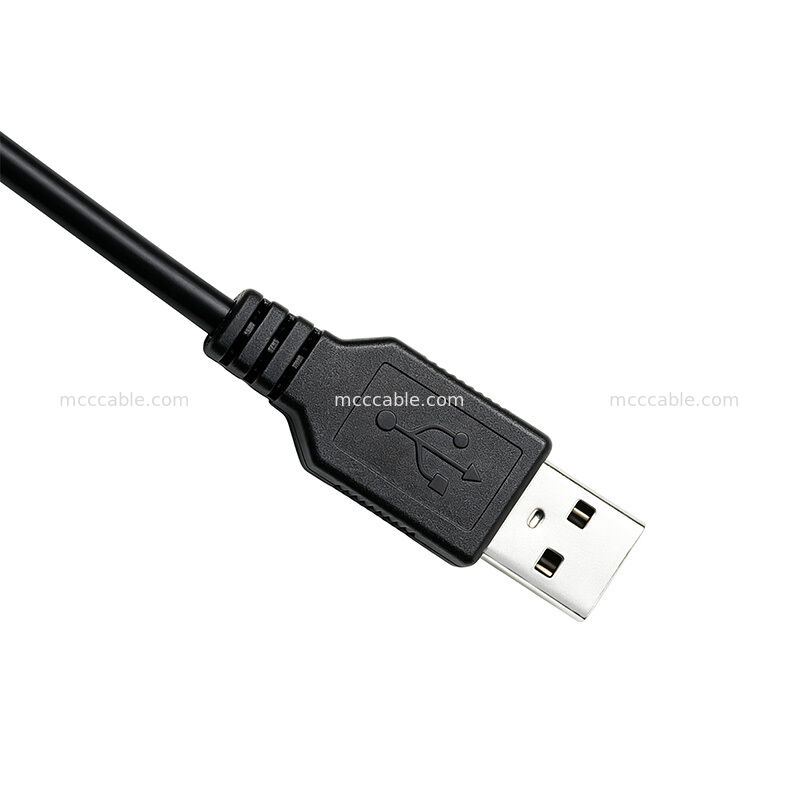

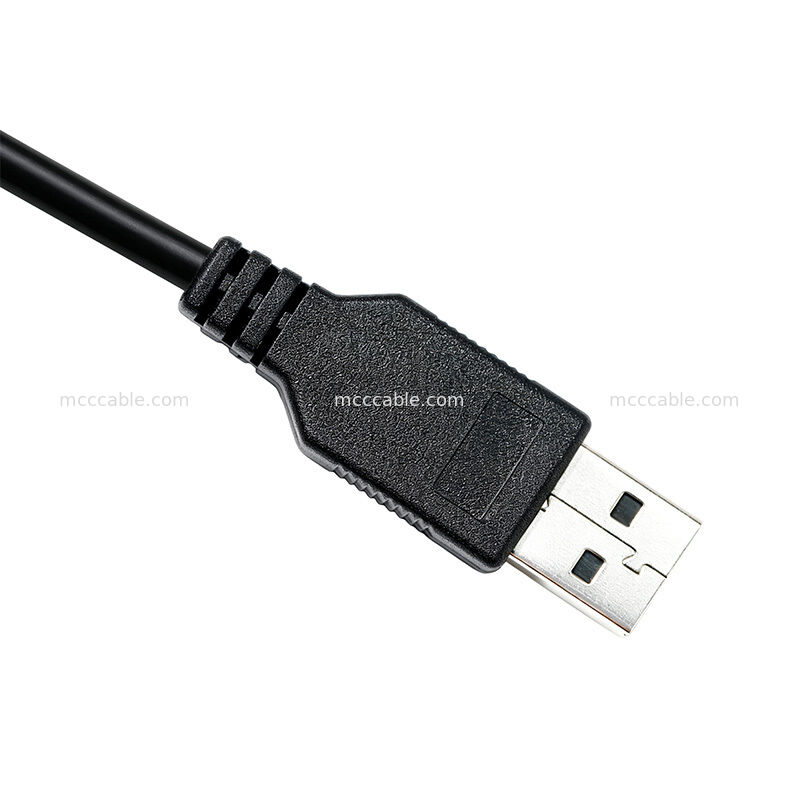

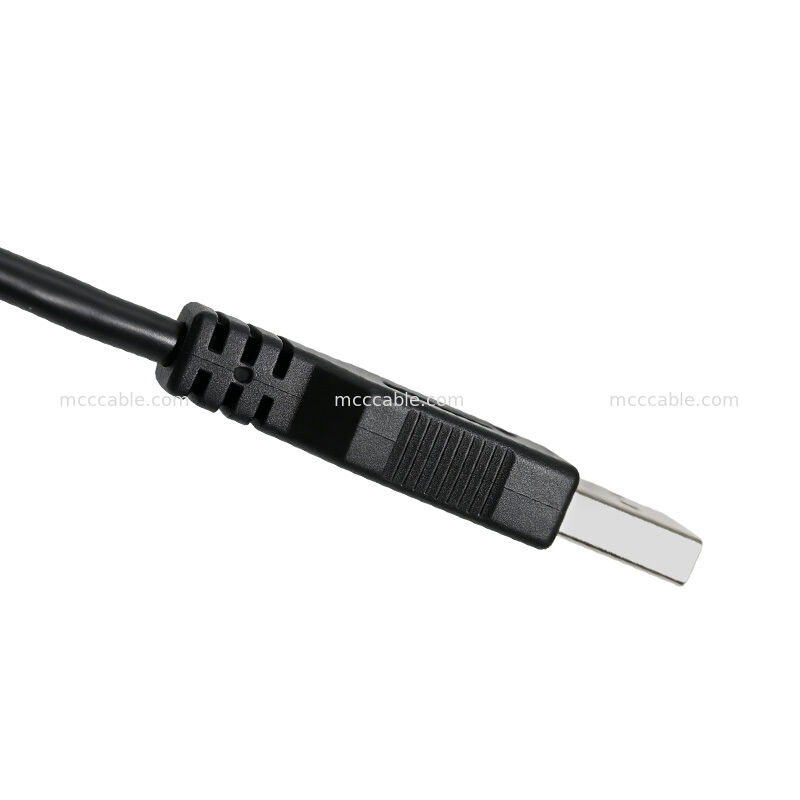

The USB side of the cable assembly uses a USB Type-A male connector. The opposite side

uses an 8-position connector with a 2 × 4 position configuration.

The connector specification indicates a 2.0 mm pitch and identifies the connector configuration

as DF11-8DS-2C.

TWN4 28AWG Shielded Cable Structure

The cable structure is specified as:

UL2725 28AWG × 1P + 26AWG × 2C + AEB

The drawing also identifies the cable as twisted and shows a shield + drain structure.

The outer molded section is specified as black PVC.

This cable structure combines the specified USB conductors and shielding

components within the cable assembly.

Custom TWN4 USB Cable Assembly

The TWN4 USB cable assembly is manufactured with the specified connector configuration,

cable structure, molding and overall length.

The assembly includes a black heat-shrink tube with an ID of 4.0 mm and a specified white

label measuring 70 × 16 mm.

TWN4 USB Cable Testing and Compliance

The cable assembly is specified as RoHS compliant.

The drawing also defines the following electrical test requirements:

• Open/short: 100% test
• Hi-Pot: AC 200 V / 0.1 s
• Insulation resistance: DC 200 V, IR ≥ 20 MΩ
• Contact resistance: 5 Ω max

TWN4 USB Cable Assembly Applications

The TWN4 USB 2.0 Cable Assembly can be used for applications requiring a

compact USB connection with a USB Type-A male interface and an 8-position

wire connector.

Typical application keywords include:

• USB 2.0 cable assembly
• Custom USB cable
• USB Type-A cable assembly
• 8-position cable assembly
• Shielded USB cable
• TWN4 cable assembly
• Custom electronic cable assembly
