Custom TWN4 USB 2.0 Cable Assembly 1m 28AWG Shielded High Speed Wiring

TWN4 USB 2.0 Cable Assembly

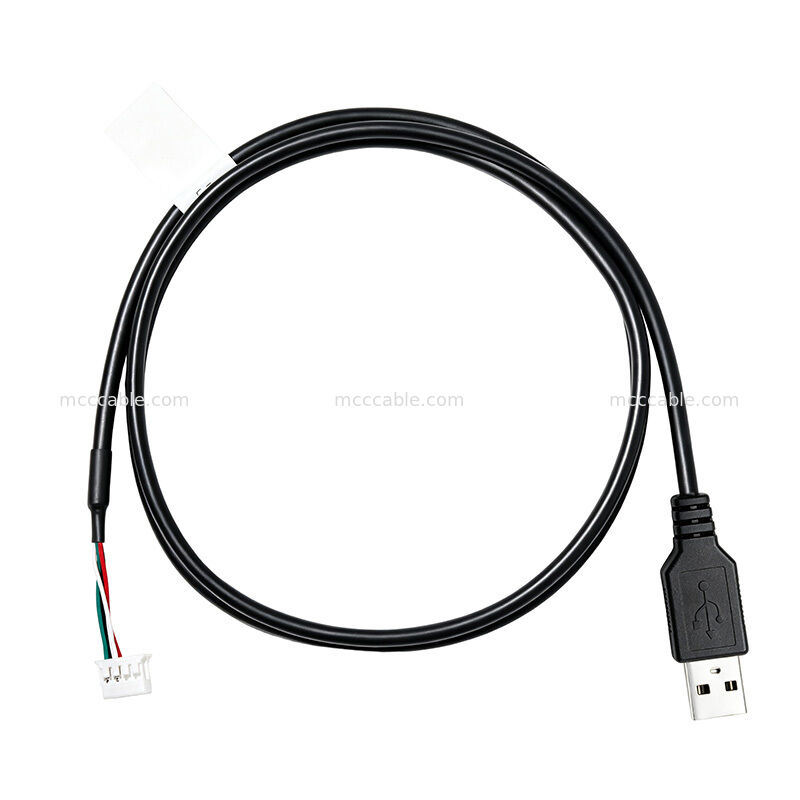

The TWN4 USB 2.0 Cable Assembly is a 1-meter custom cable assembly with a USB

Type-A male connector on one end and an 8-position wire connector on the other end.

The cable uses a twisted and shielded construction with UL2725 wire and is designed

according to the specified USB 2.0 connection and pinout requirements.

TWN4 USB 2.0 Cable Assembly Specifications

TWN4 1m USB Cable Assembly

The TWN4 cable assembly has a specified overall cable length of 1000 ± 10 mm. The drawing

also shows a 100 ± 10 mm dimension for the specified cable section and a 30 ± 5 mm dimension

at the connector end.

The cable uses a twisted construction and includes shielding and drain wire according to the

specified cable structure.

TWN4 USB 2.0 Cable Connector

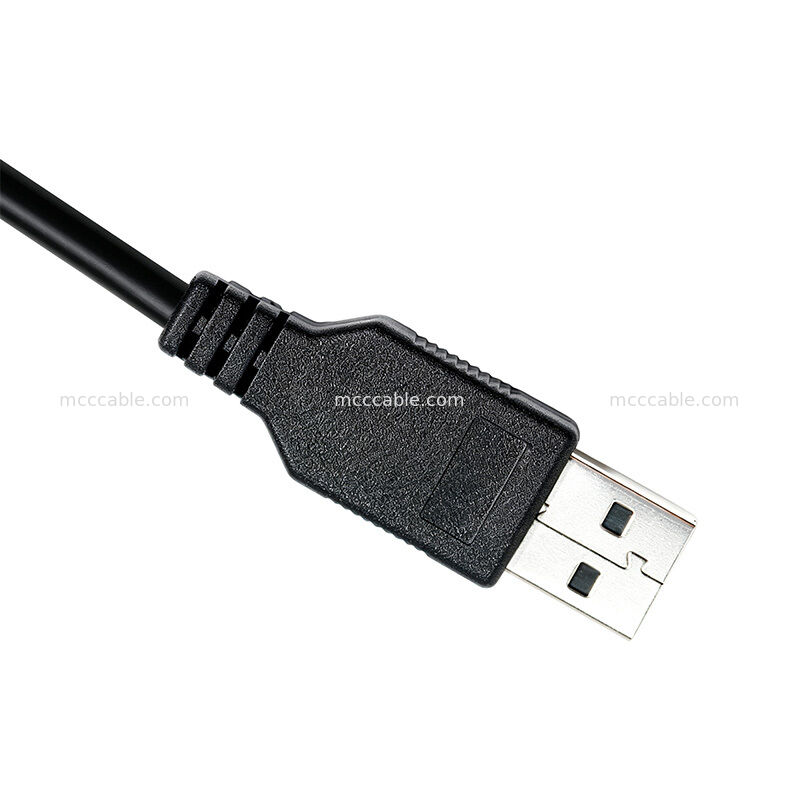

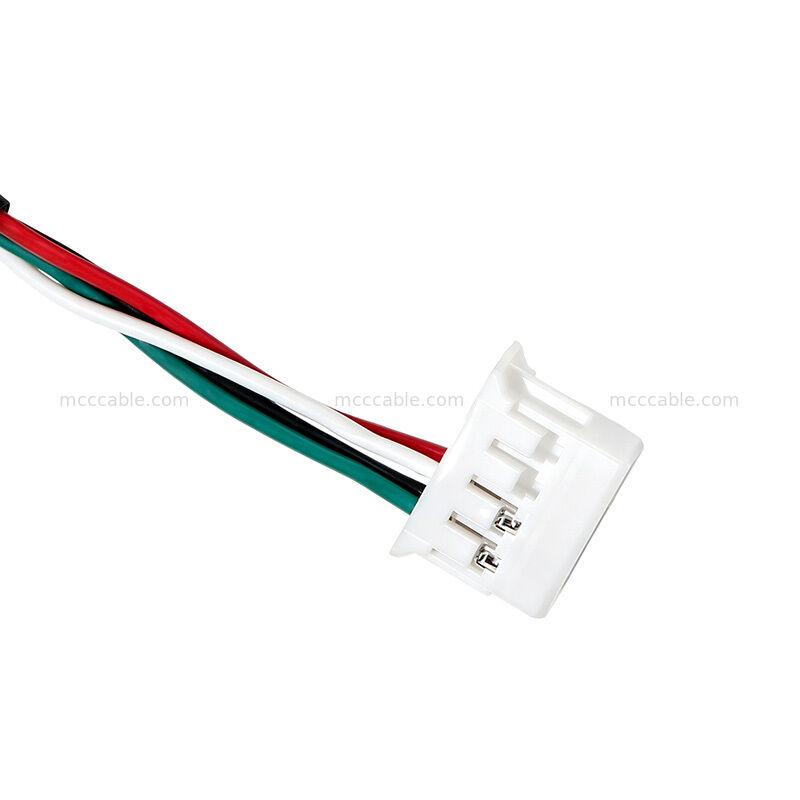

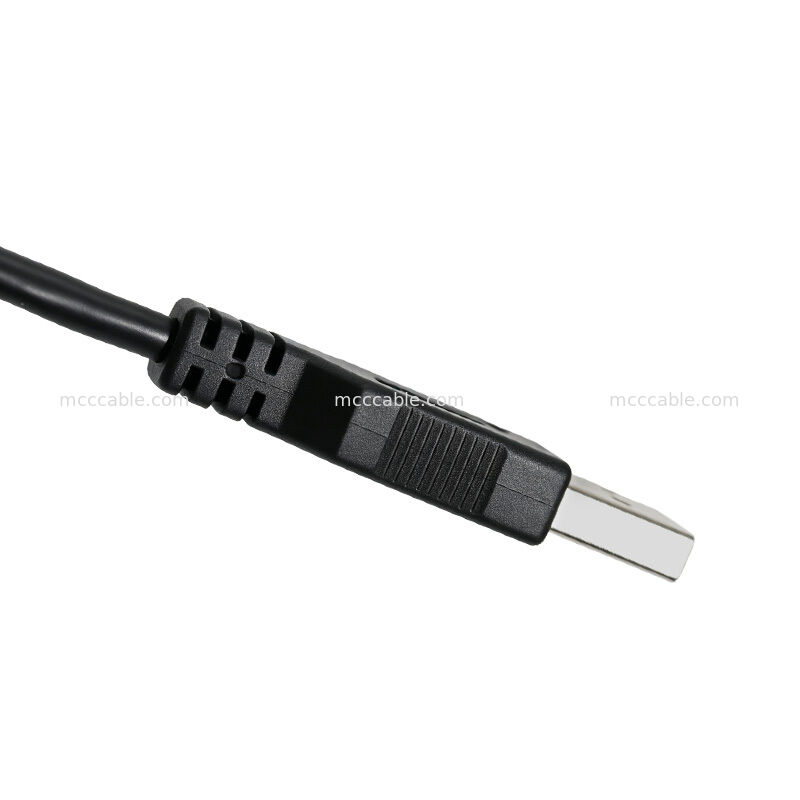

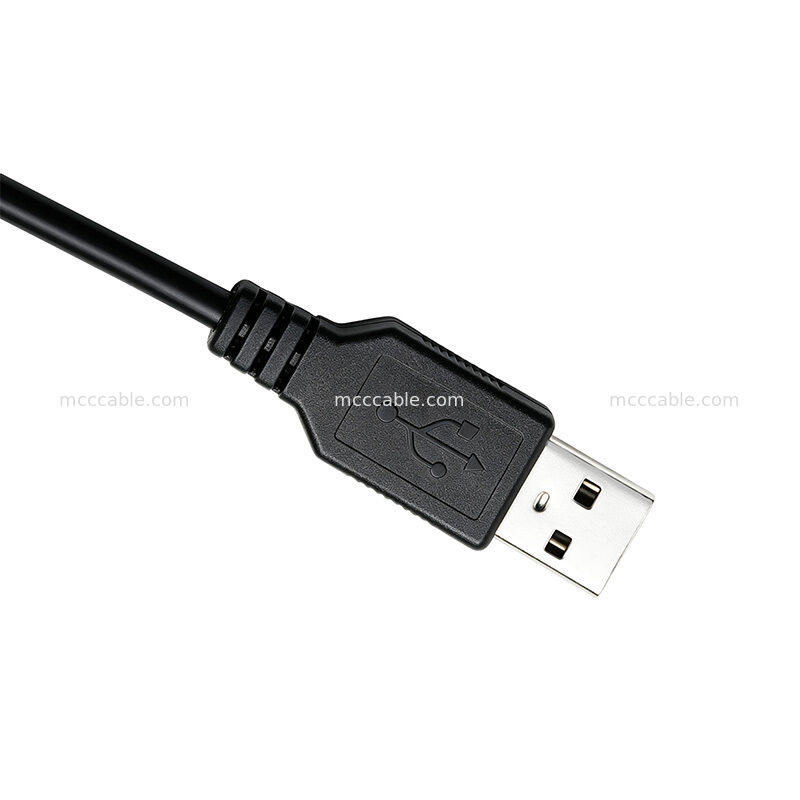

The USB side uses a USB Type-A male connector. The opposite end uses an 8-position connector

with a 2 × 4-position housing configuration.

The drawing specifies DF11-8DS-2C for the 8-position connector and identifies the corresponding

housing and terminal configuration in the connector specification.

TWN4 28AWG Shielded Cable Structure

The cable structure is specified as:

UL2725 28AWG × 1P + 26AWG × 2C + AEB

The drawing also indicates a twisted construction and shield + drain configuration. The outer

molding is specified as black 45P PVC.

This structure combines the USB signal pair, power conductors and shielding components

within the cable assembly.

Custom TWN4 USB Cable Assembly

The TWN4 USB cable assembly is manufactured with the specified connector configuration,

wire structure, molding and cable length.

The assembly includes a black PVC molded section and a black heat-shrink tube. The drawing

specifies a white label with a 70 × 16 mm size.

TWN4 USB 2.0 Cable Testing and Compliance

The cable assembly is specified as RoHS compliant.

The drawing also defines the following electrical test requirements:

• Open/short: 100% test
• Hi-Pot: AC 200 V / 0.1 s
• Insulation resistance: DC 200 V, IR ≥ 20 MΩ
• Contact resistance: 5 Ω max

TWN4 USB Cable Assembly Applications

The TWN4 USB 2.0 Cable Assembly can be used for applications requiring a 1-meter USB

connection with a USB Type-A male interface and an 8-position wire connector.

Typical application keywords include:

• USB 2.0 cable assembly
• Custom USB cable
• USB Type-A cable assembly
• 8-position USB cable
• Shielded USB cable
• TWN4 cable assembly
• Custom electronic cable assembly
