Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly

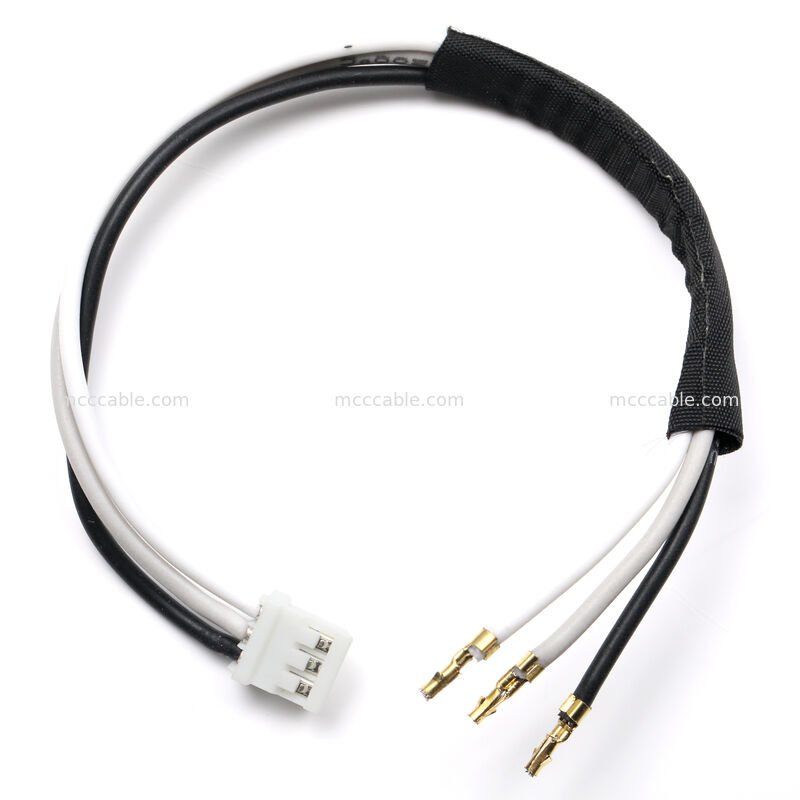

3-Pin 1.50mm Pitch Silicone Wire Harness Assembly with
Crimped Socket Terminals
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly Product Overview:
This 3-pin wire harness assembly is designed for compact electronic and industrial
applications requiring flexible routing, stable electrical performance, and reliable

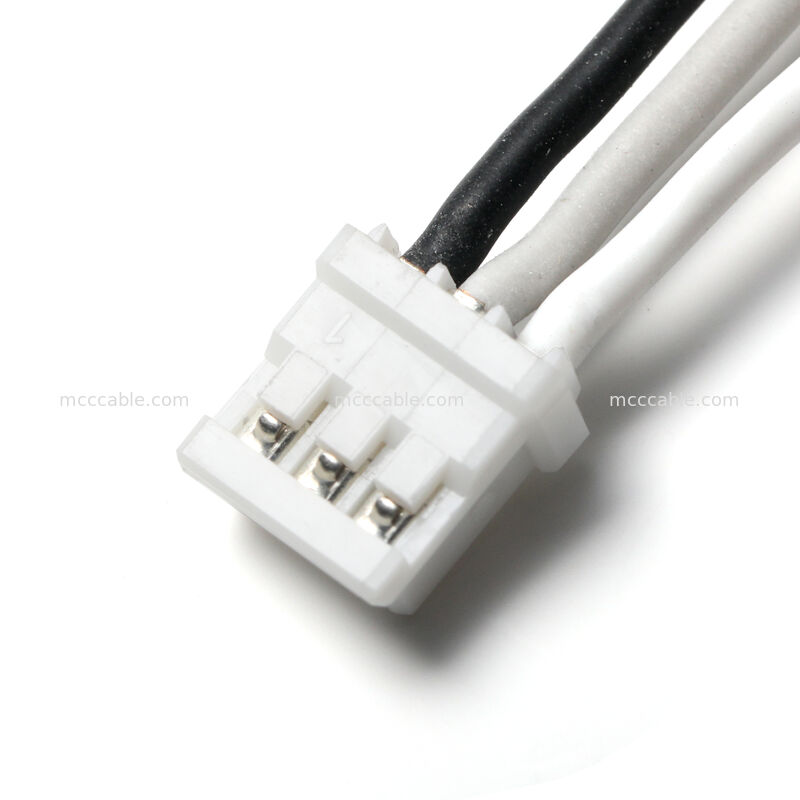

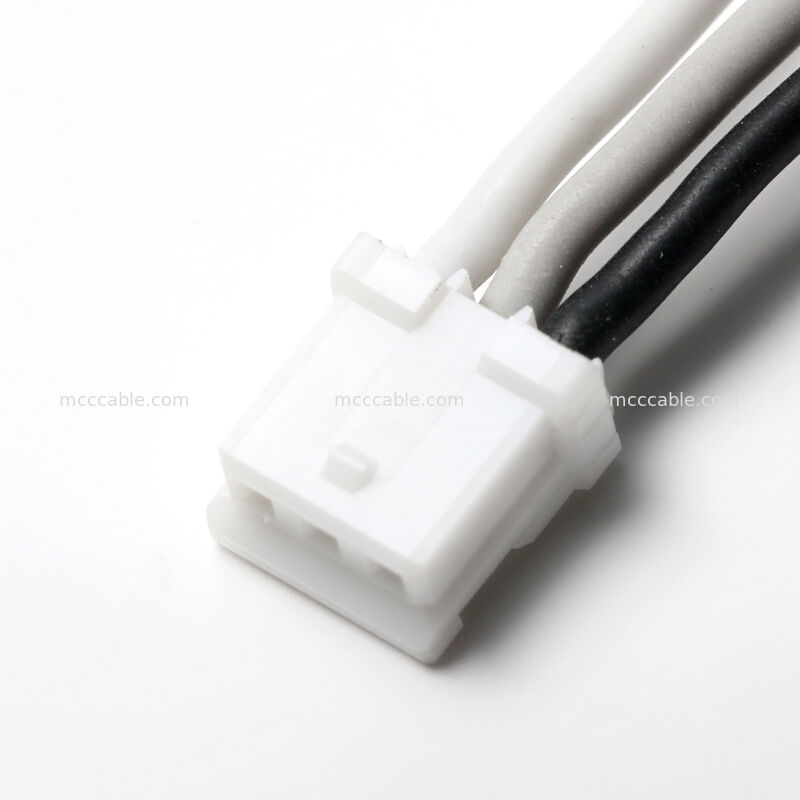

connector retention. The assembly features a 1.50 mm pitch receptacle housing on
one end and crimped socket terminals on the opposite end for direct integration into
customer-side connectors or PCB assemblies.
Soft silicone-insulated wires are used to ensure excellent heat resistance, flexibility,
and durability in confined spaces or vibration-prone environments. The harness is
manufactured under controlled processes and fully inspected to meet IPC/WHMA-A-620
workmanship requirements, making it suitable for both prototyping and volume production.
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly Key Features:
3-pin wire harness assembly with 1.50 mm pitch connector
Soft silicone insulated wires for high flexibility and heat resistance

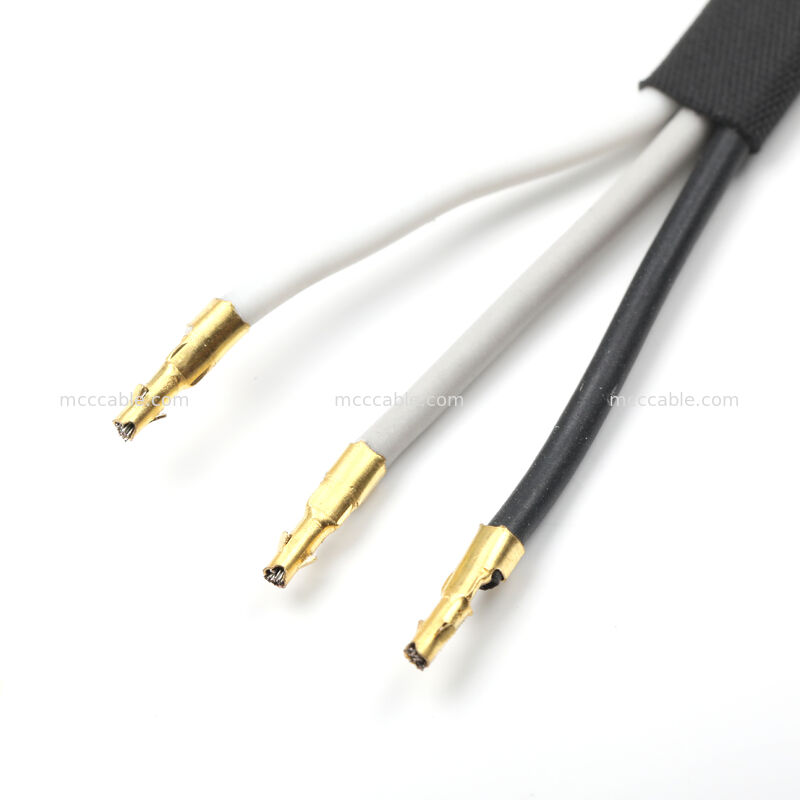

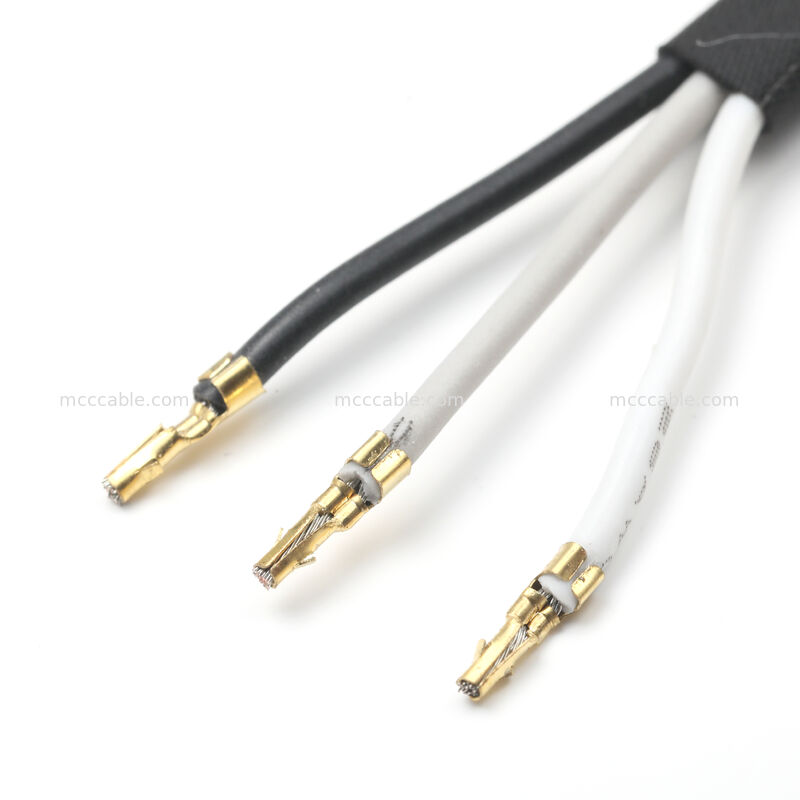

Crimped socket terminals for secure electrical contact
Compact connector design suitable for limited-space installations
Stable pin retention and consistent crimp quality
RoHS-compliant materials for global market requirements
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly Typical Applications:
Compact electronic modules
Industrial control systems
Sensor and signal transmission assemblies
Embedded device internal wiring
Low-voltage power and signal connections
Custom OEM electronic products
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly Technical Specifications:
| Item | Specification |
|---|---|
| Connector Type | Receptacle housing |
| Number of Positions | 3 Pins |
| Pitch | 1.50 mm |
| Terminal Type | Crimp socket terminal |
| Wire Type | Silicone insulated wire |
| Wire Gauge | 26 AWG |
| Wire Outer Diameter | 1.2 mm |
| Wire Colors | Black / Gray / White |
| Overall Length | 110 ± 3 mm |
| Rated Voltage | Up to 600 V |
| Operating Temperature | Up to 200 °C |
| Insulation Resistance | ≥ 10 MΩ |
| Compliance | RoHS |
| Assembly Standard | IPC/WHMA-A-620 |
3-Pin 1.50mm Pitch Silicone Wire Harness Assembly Customization Options:
Custom cable length and breakout dimensions
Wire color sequence and pin-out definition
Alternative wire gauges or insulation materials
Terminal plating options upon request
Connector housing alternatives with same pitch
Packaging and labeling options for OEM projects
