Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
GEOS Pyro Assembly 105307-1203 Wire Harness
GEOS Pyro Assembly 105307-1203 Wire Harness
Product Overview

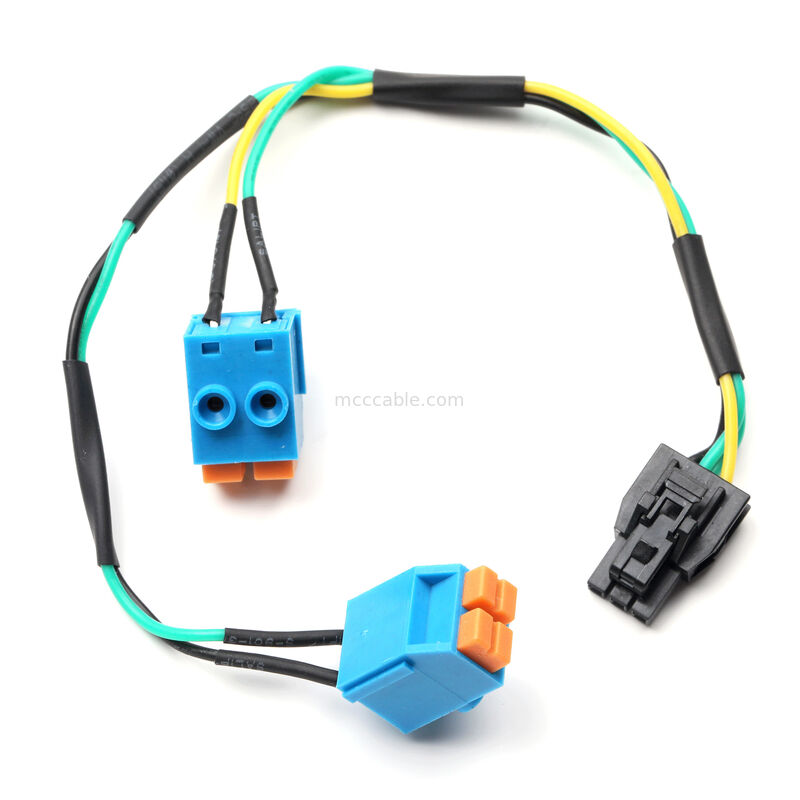

GEOS Pyro Assembly 105307-1203 Wire Harness:
The GEOS Pyro Assembly is a compact and reliable wire harness assembly designed for
power and signal transmission in industrial and control applications.
This assembly is built using a Molex Nano-Fit™ 2.5 mm pitch connector (105307-1203)
combined with high-temperature UL3132 wire, ensuring stable electrical performance,
secure locking, and excellent durability.
It is fully tested for continuity and insulation resistance and complies with RoHS requirements,
making it suitable for demanding environments.
GEOS Pyro Assembly 105307-1203 Key Features:
Uses Molex Nano-Fit™ TPA Power Housing, 2.5 mm pitch
High-temperature UL3132 wire, rated 150 °C / 300 V
Gold-plated Nano-Fit crimp terminals for low contact resistance
Multiple connectors integrated into one harness assembly
Heat shrink tubing for strain relief and insulation protection
100% electrical testing (open, short & intermittent)
GEOS Pyro Assembly 105307-1203 Typical Applications:
Pyrotechnic control systems
Industrial power distribution modules
Automation and control equipment
Test and measurement systems
Custom industrial wiring solutions
OEM electrical assemblies
GEOS Pyro Assembly 105307-1203 Technical Specifications:
| Item | Specification |
|---|---|
| Product Type | Wire Harness Assembly |

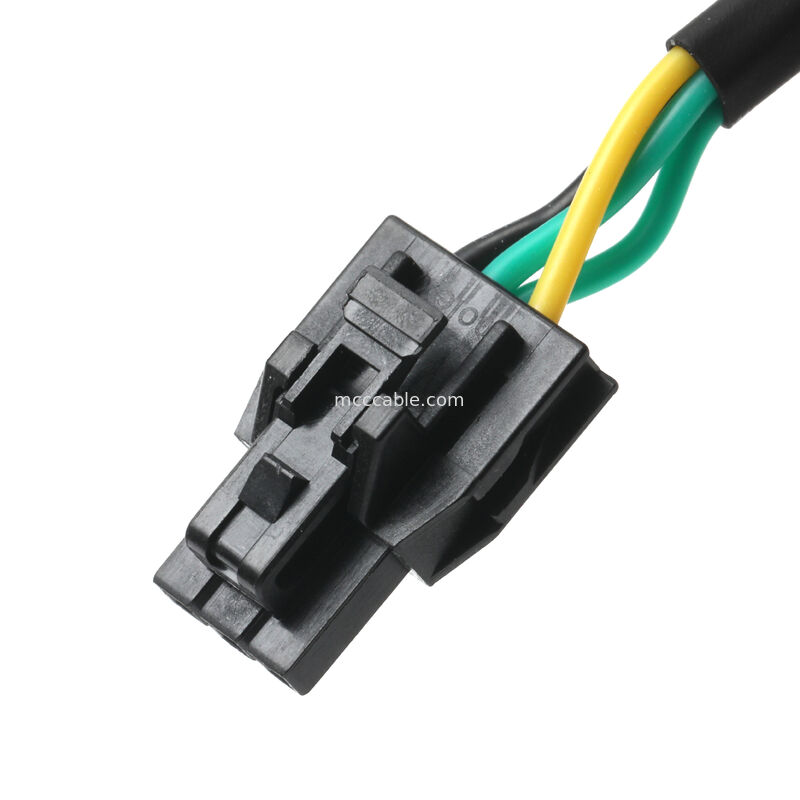

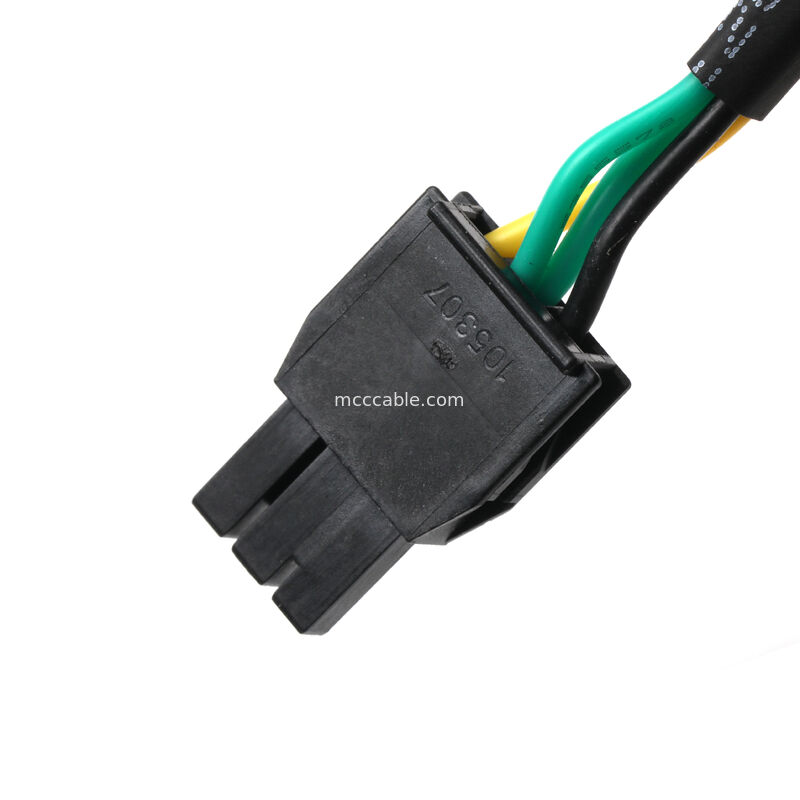

| Connector A | Molex Nano-Fit™, 2.5 mm Pitch, Black |
| Connector A P/N | 105307-1203 |
| Terminal Type | Nano-Fit Crimp Terminal, Gold Plated |
| Terminal P/N | 105300-1200 |

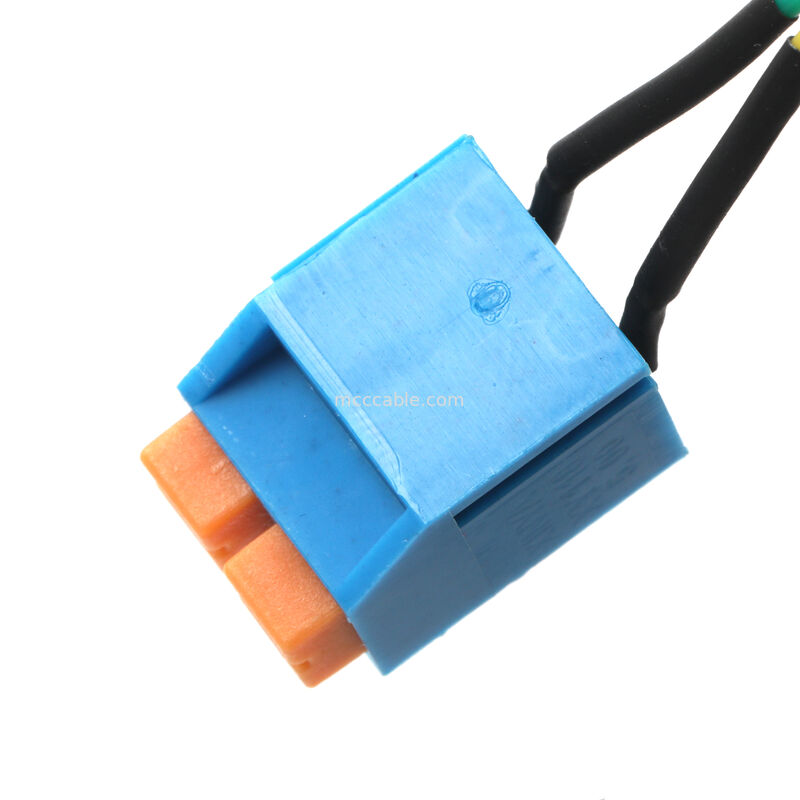

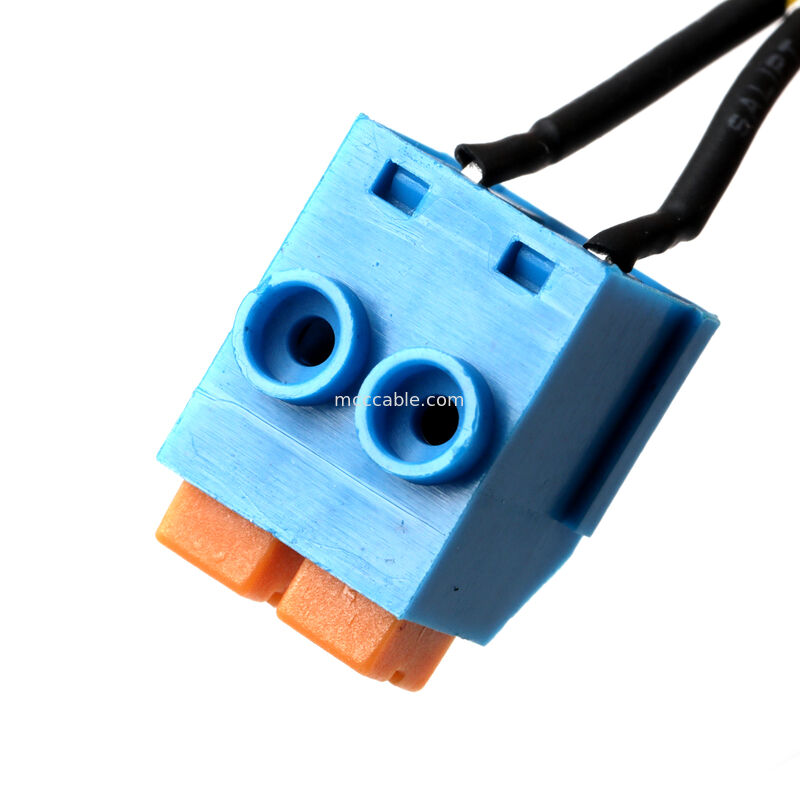

| Connector B | 2-Pin Power Connector |
| Connector B P/N | XY118 |
| Wire Type | UL3132 |
| Wire Gauge | 28 AWG |
| Wire Colors | Black / Yellow / Green |
| Rated Voltage | 300 V |
| Rated Temperature | 150 °C |
| Conductor Resistance | ≤ 1.0 Ω |
| Insulation Resistance | ≥ 10 MΩ @ 300 V DC |
| Length | As per drawing (customizable) |
| Compliance | RoHS |
GEOS Pyro Assembly 105307-1203 Customization Options:
Custom cable length
Alternative wire colors or gauges
Connector configuration changes
Additional overmolding or heat-shrink protection
Labeling or serial number marking
OEM / ODM harness design support
