Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
3 Pin Molex 1.50mm Wire Harness

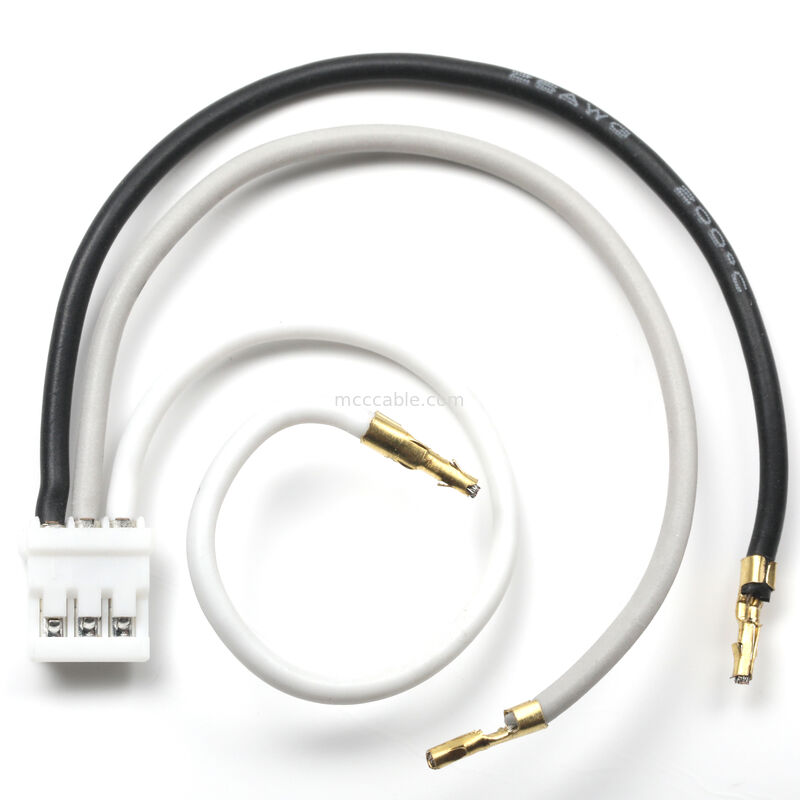

3 Pin Molex 1.50mm Wire Harness with Soft Silicone Cable
Assembly
3 Pin Molex 1.50mm Wire Harness:
This 3 Pin Molex 1.50mm wire harness assembly is manufactured using soft silicone wire
(26 AWG), designed for applications requiring high flexibility, stable electrical performance,
and compact connector solutions.

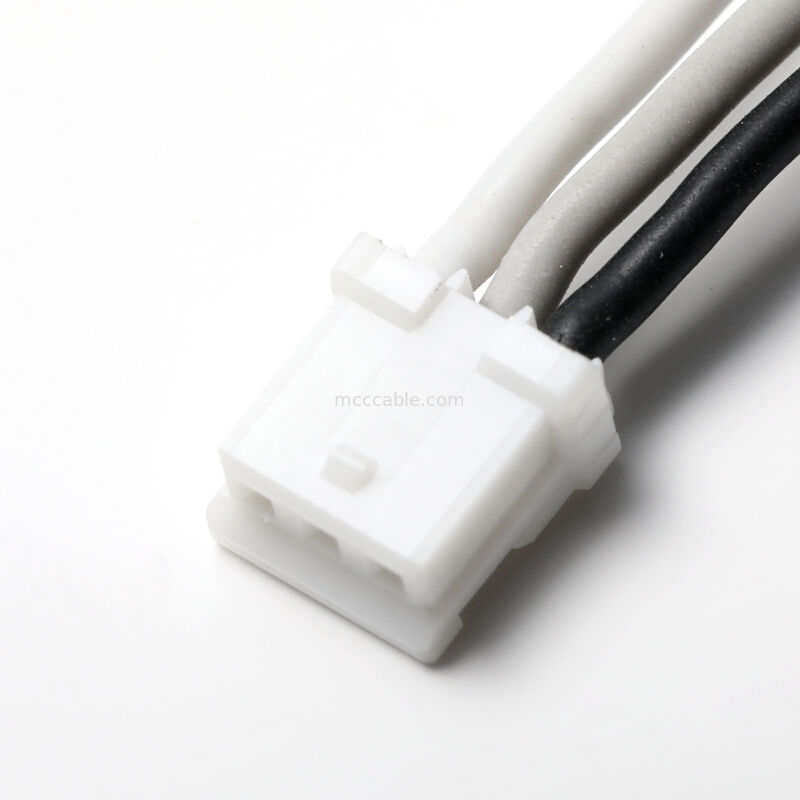

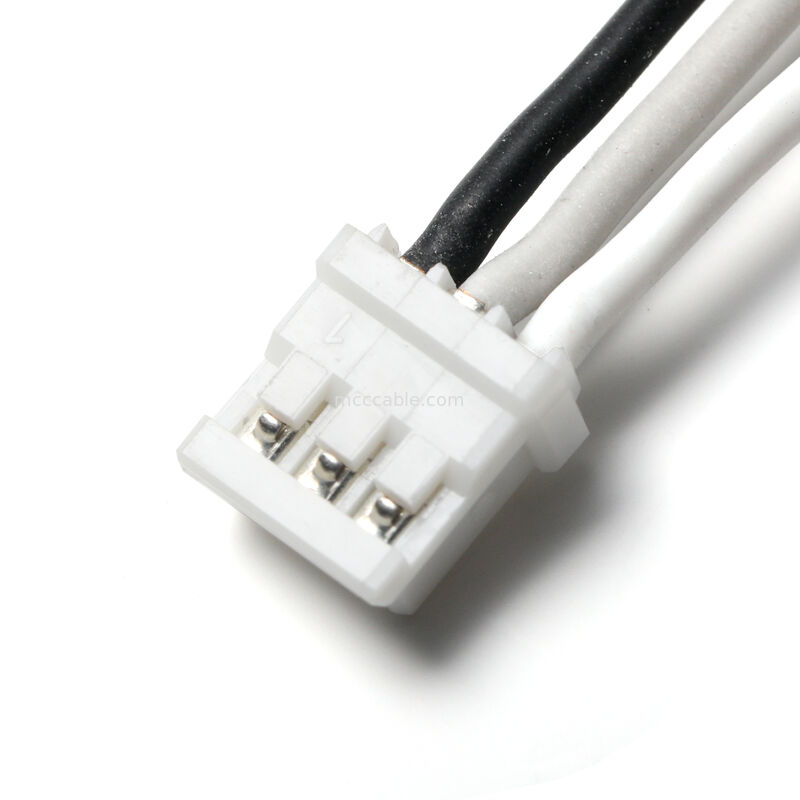

The assembly features a Molex 87439-0300 3-position receptacle housing with 87421-0000

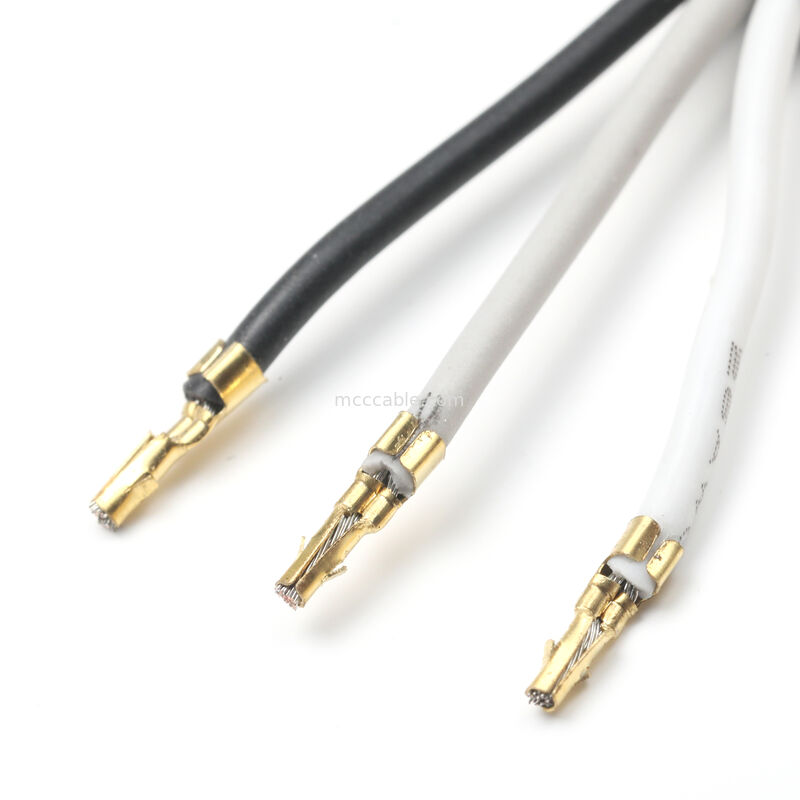

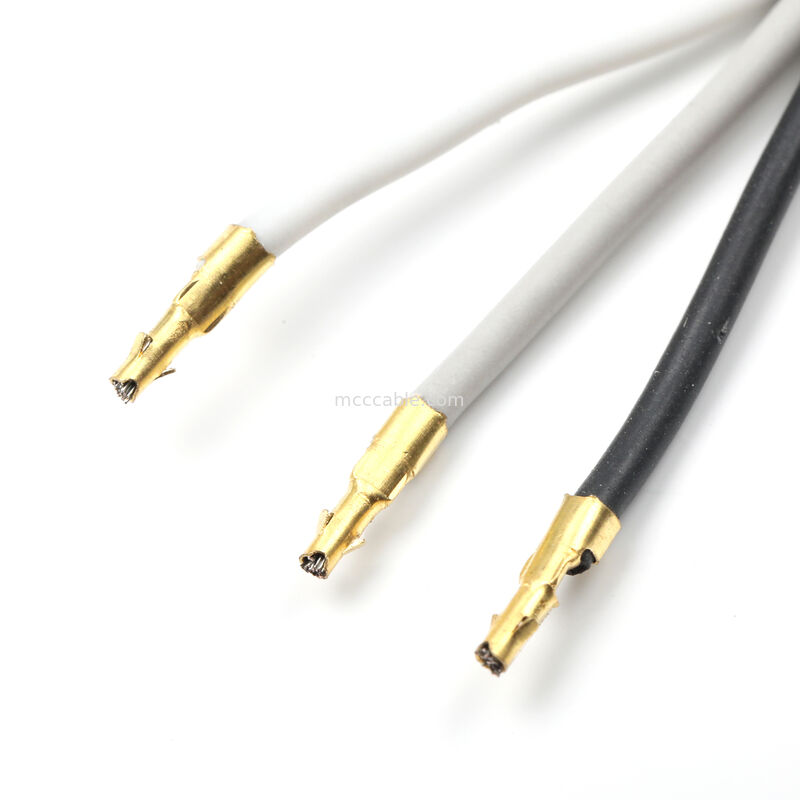

crimp terminals, ensuring reliable contact performance and secure mating.
All assemblies are produced in compliance with IPC/WHMA-A-620 Class 2 workmanship
standards and are 100% electrically tested before shipment.
OEM and ODM customization is available to meet specific application requirements.
Key features of the 3 Pin Molex 1.50mm Wire Harness:
Molex 1.50mm pitch, 3-position connector system
Soft silicone wire, excellent flexibility and heat resistance
26 AWG conductor, OD 1.2 mm
Crimped terminals, stable and reliable connection
Compact design, suitable for space-limited applications
100% open / short / intermittent test
RoHS 2.0 compliant
OEM / ODM supported
Typical Applications of the 3 Pin Molex 1.50mm Wire Harness:
Industrial control systems
Medical and healthcare devices
Precision electronic equipment
Sensors and small modules
Custom OEM electronic assemblie
Technical Specifications of the 3 Pin Molex 1.50mm Wire Harness:
| Item | Specification |
|---|---|
| Product Type | Wire Harness Assembly |
| Connector Housing | Molex 87439-0300 |
| Connector Type | Receptacle Housing |
| Pitch | 1.50 mm |
| Number of Positions | 3 Pin |
| Terminal | Molex 87421-0000 |
| Wire Type | Soft Silicone Wire |
| Wire Gauge | 26 AWG |
| Wire OD | 1.2 mm |
| Wire Length | 65 ± 3 mm |
| Insulation Material | Silicone |
| Color | Black / Gray / White |
| Conductor Resistance | ≤ 2 Ohms |
| Insulation Resistance | ≥ 10 MΩ @ 300V DC |
| Electrical Test | 100% Open / Short / Intermittent |
| Compliance | RoHS 2.0 |
| Manufacturing Standard | IPC/WHMA-A-620 Class 2 |
| Customization | Supported |
Customization Capability of the 3 Pin Molex 1.50mm Wire Harness:
We provide application-based custom wire harness solutions, including:
Custom wire length and color
Alternative wire gauge or insulation material
Connector or terminal replacement
Pin-out customization
OEM & ODM private labeling
Our engineering team can support drawing review and rapid prototyping.
Quality Control of the 3 Pin Molex 1.50mm Wire Harness:
100% electrical performance testing
Crimp force and visual inspection
Dimensional inspection per drawing
Stable batch traceability
