Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-012C

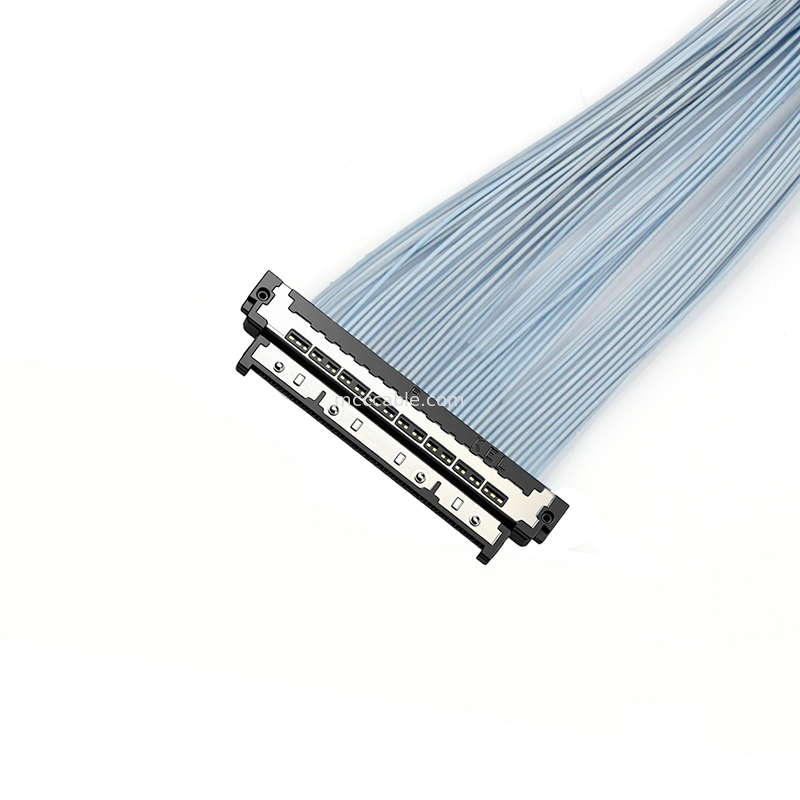

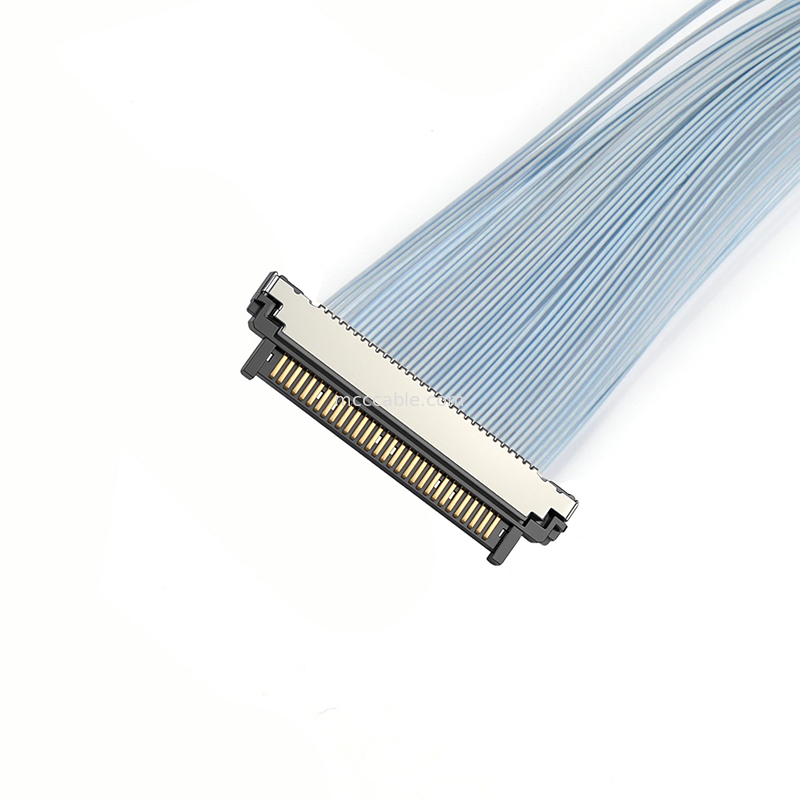

USL20-30SS-012C 0.4mm - Wholesale Supplier for
Digital Camera & IoT Device Makers
USL20-30SS-012C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-012C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-012C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we’re proud of our 15+ years of design and manufacturing expertise.
Q2. Is there any certification?
A:Indeed, our certifications cover ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:We specialize in designing products tailored to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Indeed, we accept OEM/ODM orders, with an MOQ of 100 units for OEM and 1,000 units
for ODM, plus a mould fee based on the design.
Q5. How long will it need for completing an order?
A: For small or available products, preparation and delivery take under 3 days, with shipping varying
from 7 days to 1 month based on client choice. For large orders, material prep and production take
5–21 working days, testing takes 1–3 days, and packing takes 1 day, so 7–25 days total, excluding
shipping.
Q6. As long term clients, what other service we can get?
A:As loyal clients, you’ll receive new products with orders to explore market opportunities and resell
in your district, discounted rates on smaller quantities, and assistance with logo-branded promotional
images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Cables come with a 12–36-month warranty. Big orders include 0.3%–0.5% extra units as defect
backups. If you have more than 5 faulty units (less than 0.1%), contact sales with images for a
replacement or refund.
Q8. Do you accept free sample order?
A: Absolutely, we offer sample orders, with some samples provided free, aside from shipping fees.
How to contact us?
Enter your inquiry details below and hit "send" now! Free samples and great prices are available.
If a product isn’t on our site, contact us, and we’ll source a quality alternative at a competitive price.
Send your inquiry directly to us
