Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-009C

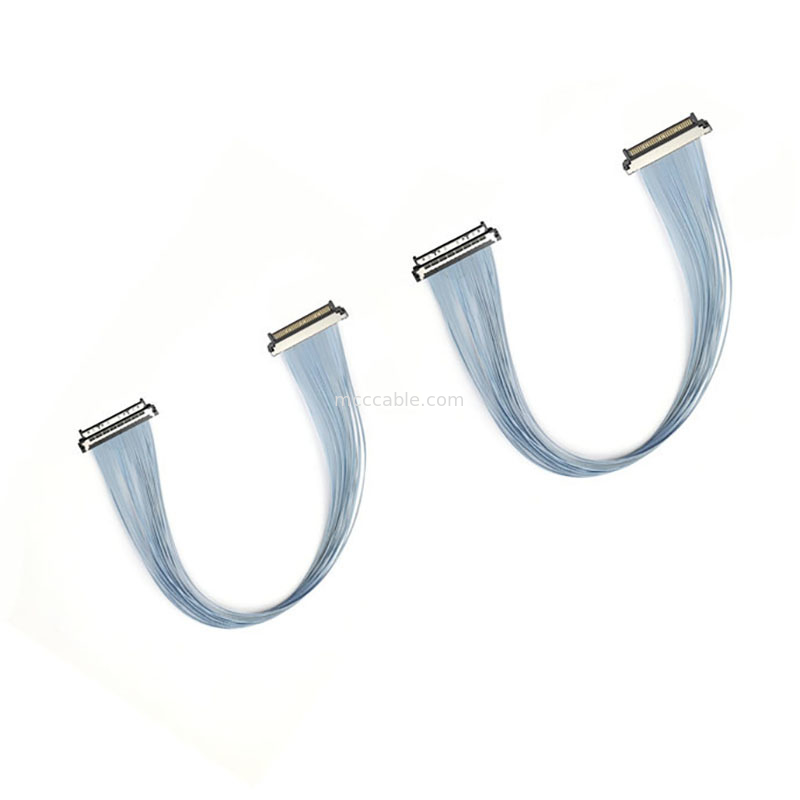

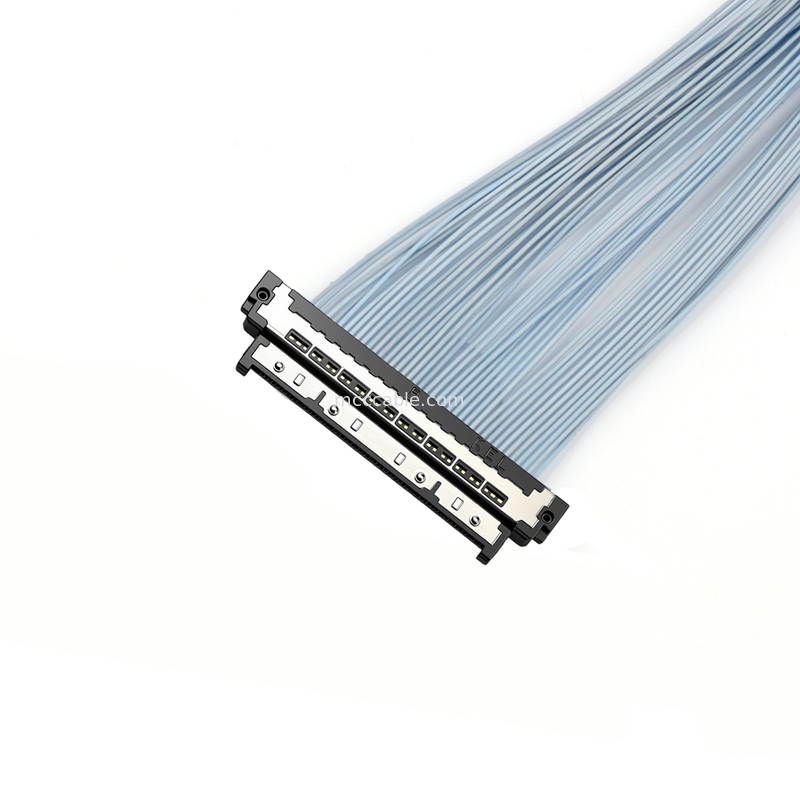

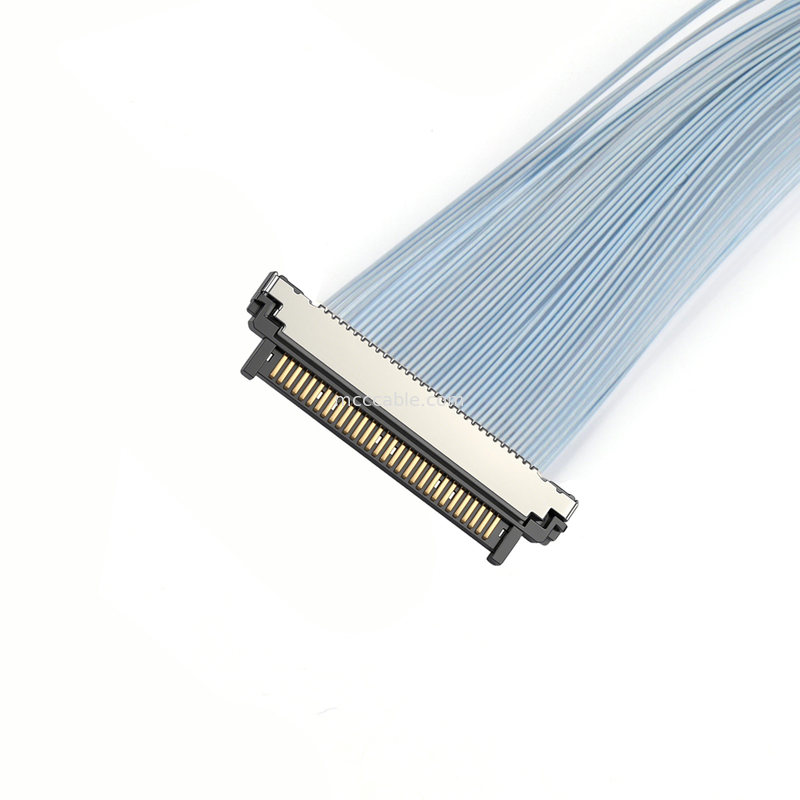

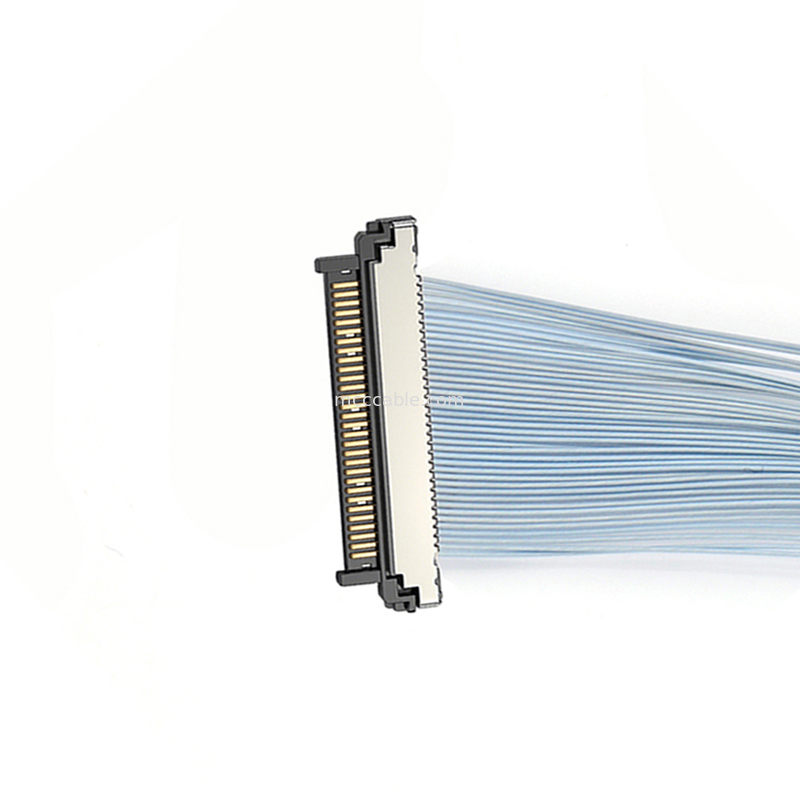

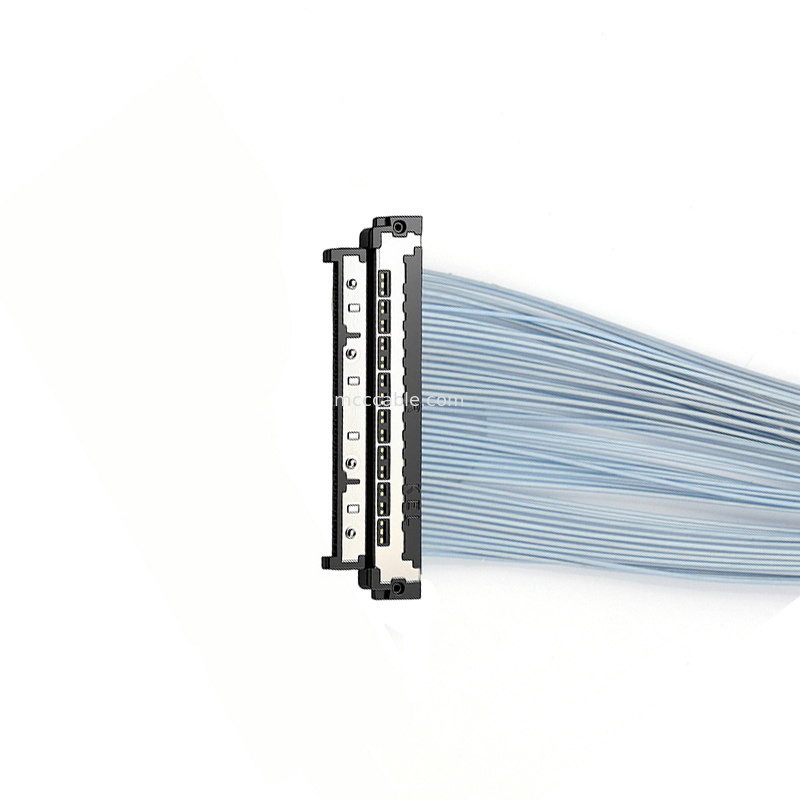

Buy 0.4mm Pitch USL20-30SS-009C ZIF Connector
for Digital Video & Surveillance Cameras
USL20-30SS-009C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-009C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-009C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we’re proud of our 15+ years of design and manufacturing expertise.
Q2. Is there any certification?
A:Yes, our certifications include ISO9001, ISO14001, TS16949, ISO13485, and UL certification.
Q3. What is our specialty?
A:We specialize in designing products tailored to specific applications.
Q4. Do you accept OEM/ODM orders?
A: Indeed, we accept OEM/ODM orders, with an MOQ of 100 units for OEM and 1,000 units
for ODM, plus a mould fee based on the design.
Q5. How long will it need for completing an order?
A: Small orders or items in stock are prepared and delivered in under 3 days, with shipping
taking 7 days to 1 month based on client preference. Large orders require 5–21 working days
for materials and production, 1–3 days for testing, and 1 day for packing, totaling 7–25 days
without shipment.
Q6. As long term clients, what other service we can get?
1. As valued long-term clients, you’ll get new products with orders to explore market fit and
resell in your region, reduced prices on smaller quantities, and assistance with branded
promotional images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. For bulk orders, we provide 0.3%–0.5%
additional units for defects. If you get over 5 faulty units (below 0.1%), notify sales with
photos, and we’ll replace or refund.
Q8. Do you accept free sample order?
A: Yes, we allow sample orders, and select samples are free, excluding shipping charges.
How to contact us?
Send your inquiry details below and press "send" now! Free samples and top pricing await.
If a product isn’t listed on our site, reach out, and we’ll find a high-quality equivalent at a
good price.
Send your inquiry directly to us
