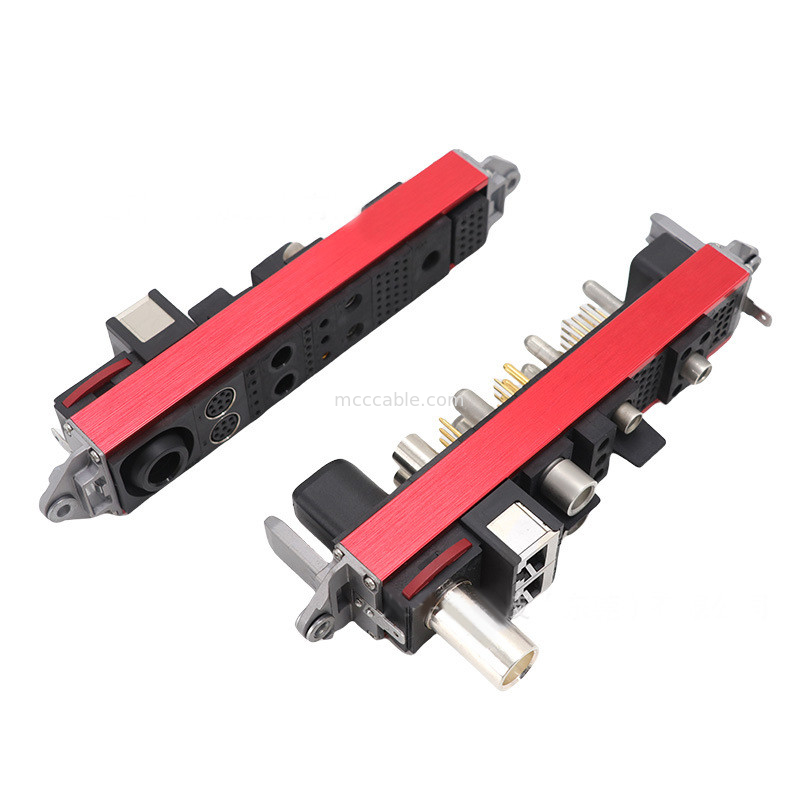

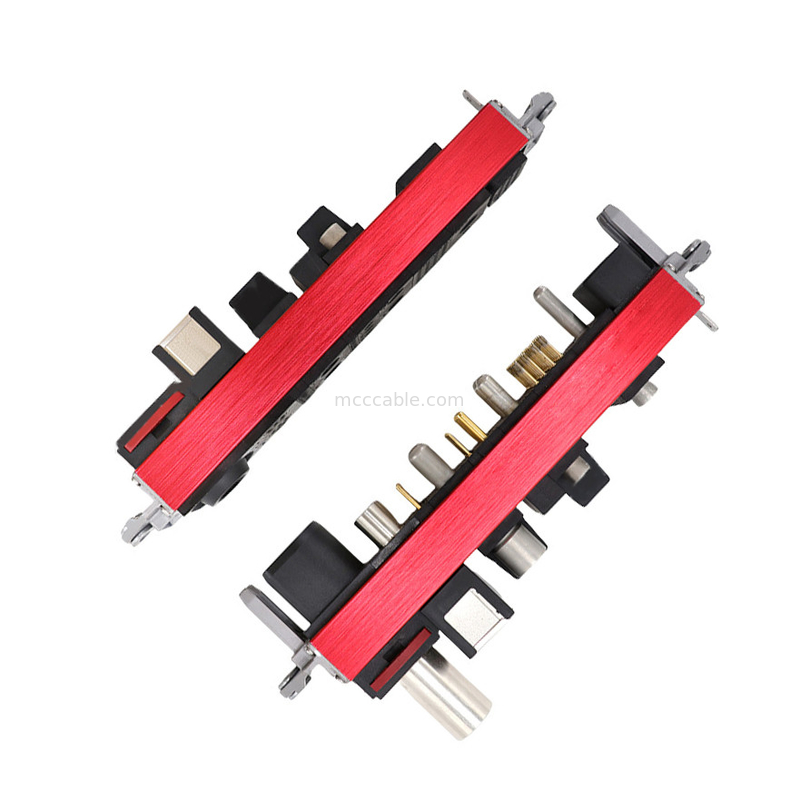

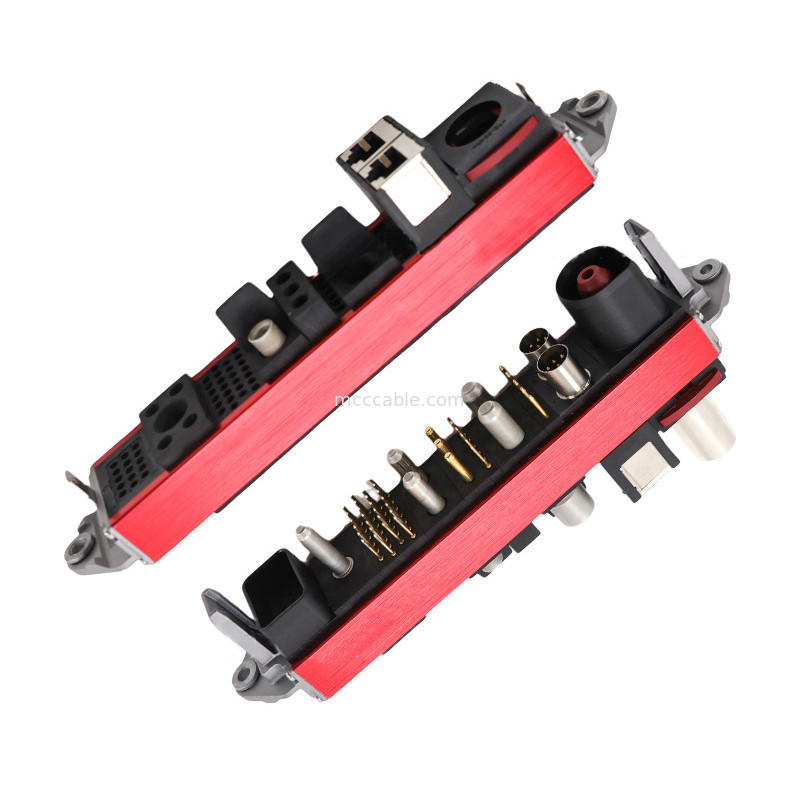

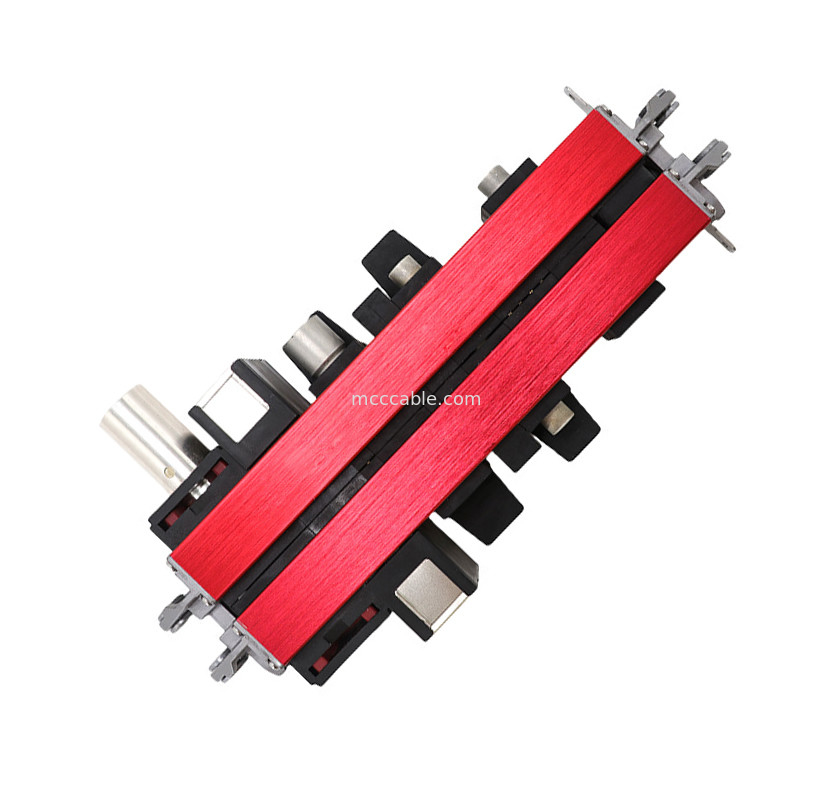

Combitac Mc Staubli Module Connector

C232HD-DDHSP-0 FT232 imported chip USB to high speed

UART serial adapter 3P cable

The CombiTac system allows connection of both fluid and electrical circuits in a single frame or housing.

Solutions are built according to the application specifications by assembling individually dedicated modules.

Quality components and compact design ensure high reliability as well as space-saving construction,

in both housing and rackable versions. High mating cycle contacts for high voltage or high currents guarantee

long-lasting performance even under the most demanding mechanical and environmental conditions.

Technical specifications • Electrical contacts Ø 3 – 12 mm for power, Ø 0.6, 1, 1.5 mm for signal

• Pneumatic and fluid couplings nominal diameters (mm): from 03 to 08

• Max. working pressure*:15 bar (217 PSI)

Energy sources and fluids

• Compressed air and industrial vacuum

• Cooling circuits

• Electrical power and signal circuits

• Thermocouple

• Coaxial contacts

• Fiber-optics

• Data bus contact (Ethernet, Profi-bus, Profi-net, Interbus, CAN-BUS)

Construction

• Stainless steel

• Nickel-plated brass

• Various seals available on request

• Gold- and silver-plated contacts Other features

• Compressed air and industrial vacuum

• Cooling circuits

• Electrical power and signal circuits

• Thermocouple

• Coaxial contacts

• Fiber-optics

• Data bus contact (Ethernet, Profi-bus, Profi-net, Interbus, CAN-BUS)
