|Product Name:||RF Cable Connector LMR-195 Cable||OPERATING TEMPERATURE RANGE:||-40 TO +85℃|
|Connector Type:||RF Male N Cable Connector||Body:||Brass, Nickel Plated|
|MOQ:||Quantity Can Be Negotiable||Insulator:||PTFE|
|Contact:||Brass, Gold Plated||O-Ring:||Silicon|
Nickel Plated RF Coaxial Connector,
PTFE Insulator RF Coaxial Connector,
Nickel Plated RF Cable Connector
Nickel Plated RF Coaxial Connector With PTFE Insulator Silicon O Ring
RF Cable Connector LMR-195 Cable male N 2GHz PLUG HEX NICKEL PLATED to R/A N PLUG with ROHS
|Attribute||RF Cable Connector|
|Open/Short Test||100% Open, Short Test|
|Operating Temperature Range||-40 to +85°C|
|Velocity of Propagation||80%|
|Voltage Withstand||1000 Volts|
|Bend Radius (Repeated)||2 inches|
|VSWR||1.35:1 up to 2GHz|
|IP Specification||Meets or exceeds IP67 when mated|
|Connector Style||Male N 2GHz Plug|
|Connector Plating||Hex Nickel Plated|
|Connection Type||Right Angle N Plug|
|Cable Connector||RF Cable Connector|
|Cable Outer Diameter||4.95mm|

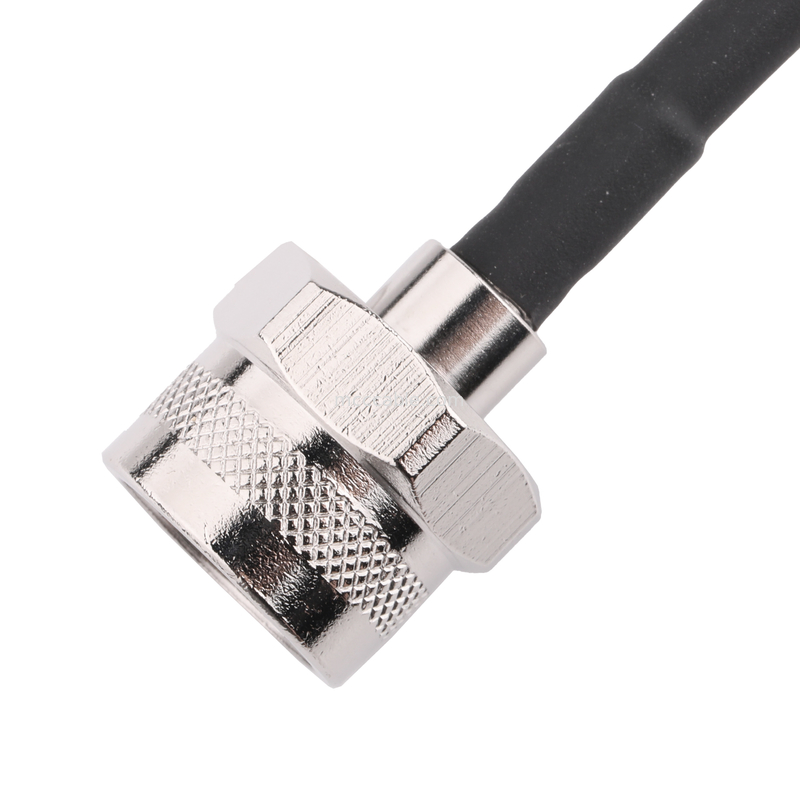

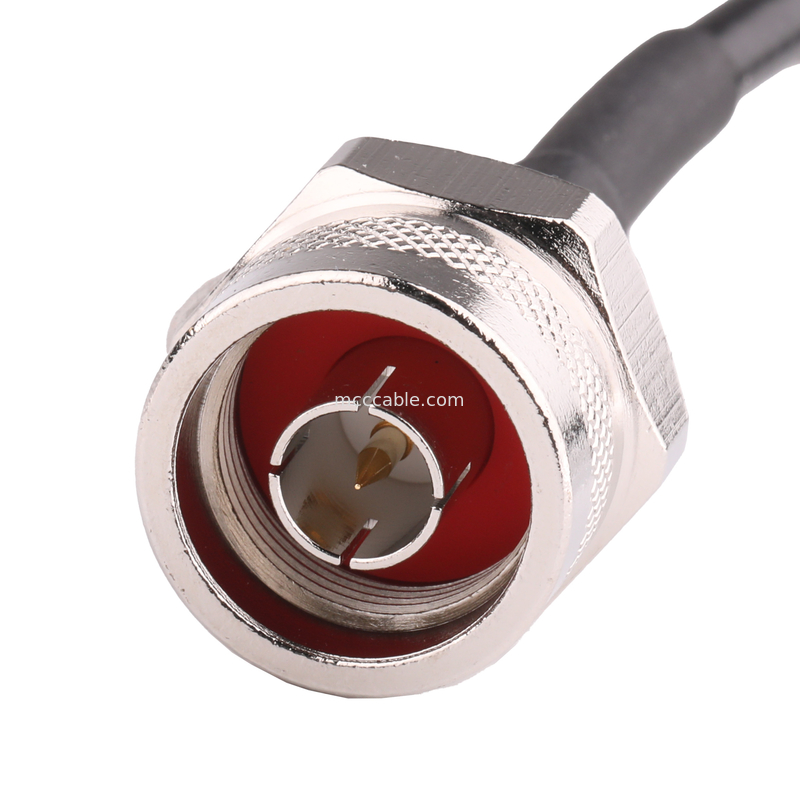

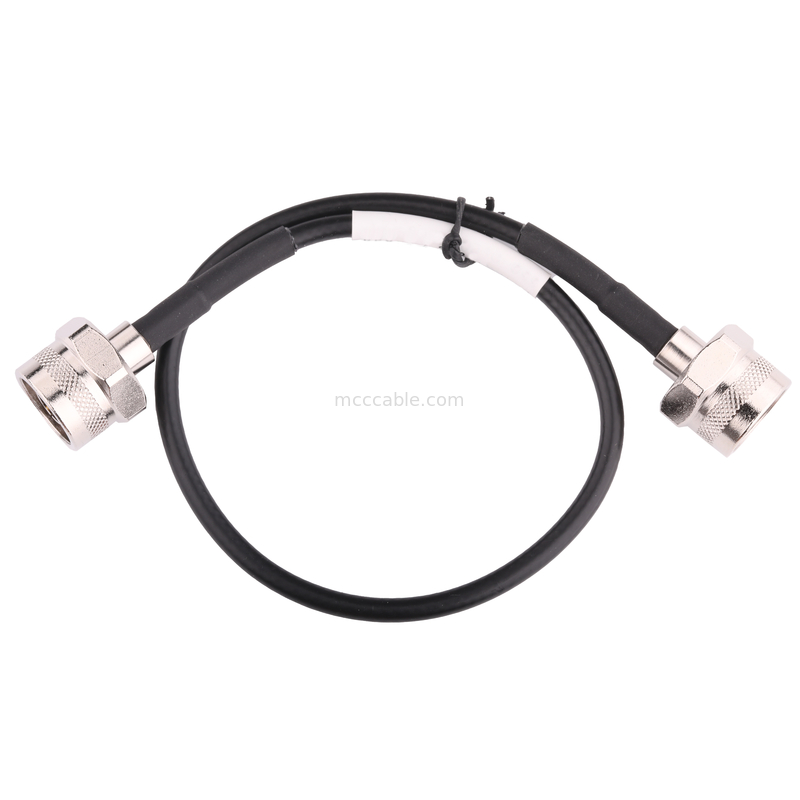

This product features a male N plug with a hexagonal nickel plating, designed for 2GHz frequency applications.
It is connected to a right-angle (R/A) N plug, ensuring a secure and reliable connection. The RF cable connector
is ROHS compliant, providing high-quality performance while meeting environmental standards. The cable used
is LMR-195, known for its durability and reliability. With an outer diameter of 4.95mm, this product is ideal for various
RF and telecommunications applications.
We offer our customers a small number of highly specialized cable and harness assemblies,
and our engineering department, production and quality control ensure the highest quality
of these unique components
Please feel free to contact us for custom OEM/ODM.
