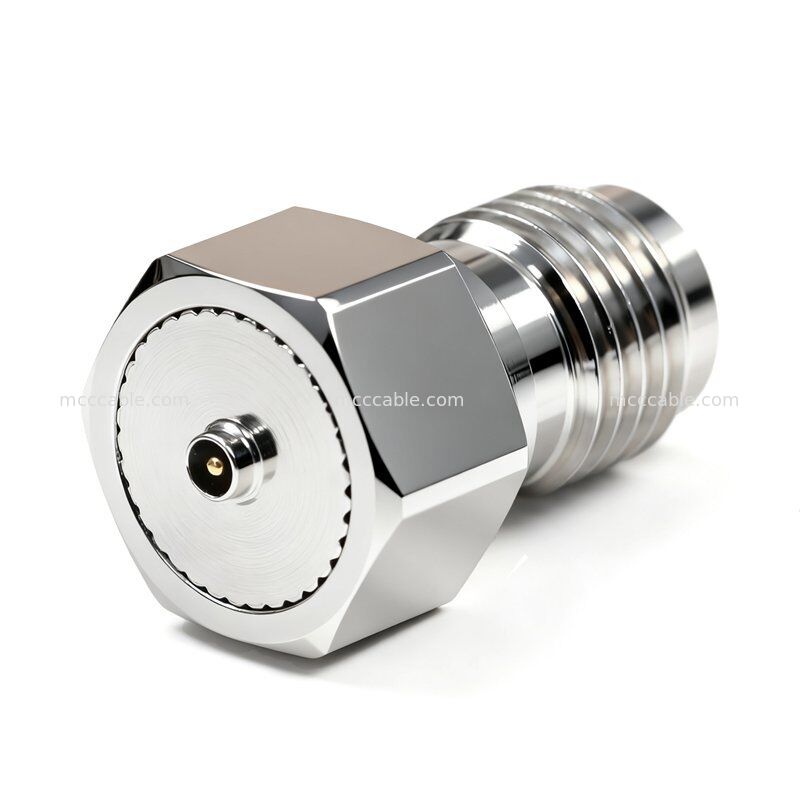

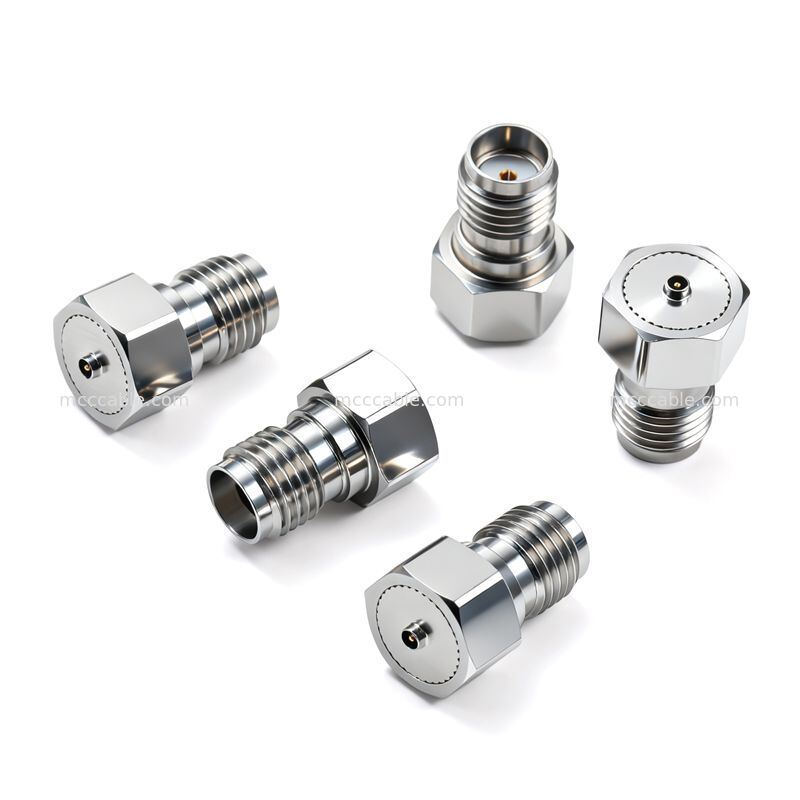

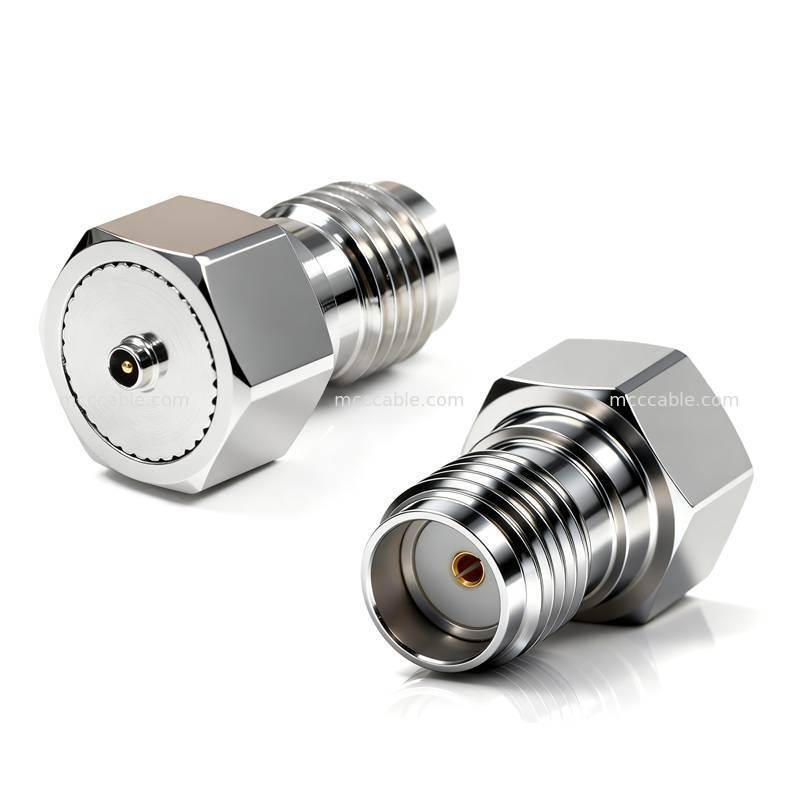

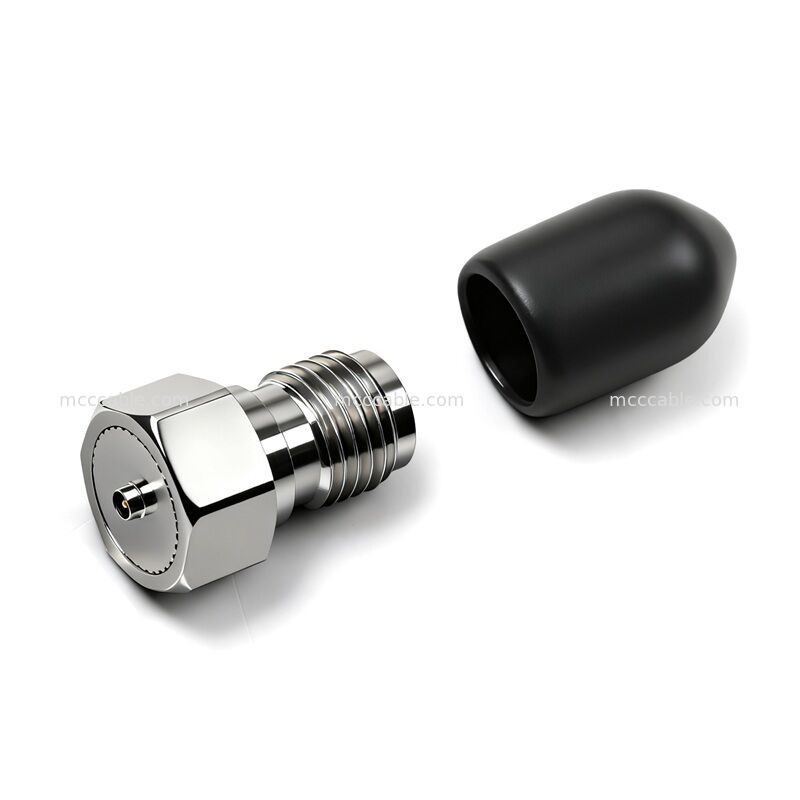

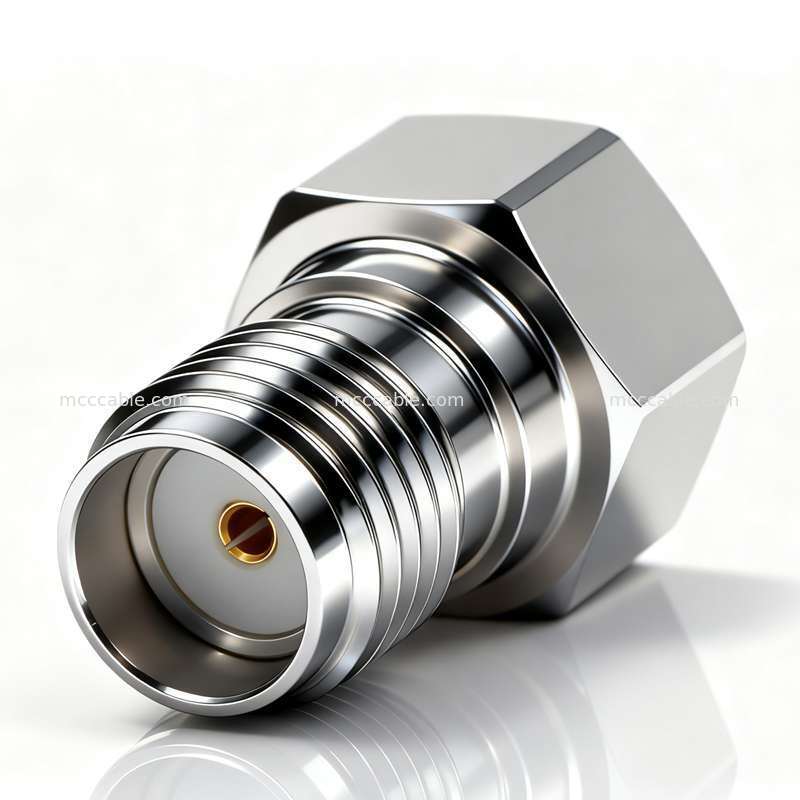

RF Termination Load Connector Overview

The RF Termination Load Connector is designed to absorb RF energy and provide precise
impedance matching in wireless communication, antenna systems, RF testing equipment,
and microwave transmission networks. By terminating unused RF ports with a stable 50-ohm
load, the device helps minimize signal reflections, reduce standing wave ratios, and protect
sensitive RF equipment from performance degradation.

Manufactured with a precision-machined metal housing and high-quality RF contact structure,
the termination load delivers excellent electrical stability and long-term durability in demanding
environments. The rugged threaded interface ensures secure installation in communication
systems, laboratory test equipment, base stations, distributed antenna systems (DAS), and RF
network infrastructures.

As a professional RF component manufacturer, Sino-conn provides customized impedance,
frequency range, power handling capability, connector interface options, and branding services
according to customer requirements.

RF Termination Load Connector Features

Precise Impedance Matching

Designed to provide stable 50Ω termination for RF transmission systems.

Reduced Signal Reflection

Helps minimize return loss and improve overall RF system performance.

Durable Metal Construction

Precision-machined housing offers excellent mechanical strength and environmental
resistance.

Reliable RF Performance

Suitable for continuous operation in communication and testing environments.

Compact Design

Space-saving structure for integration into RF systems and test platforms.

Customizable Configuration

Connector type, frequency range, power rating, and marking can be customized.

RF Termination Load Connector Applications

Cellular Base Stations

Used to terminate unused RF ports in communication equipment.

Antenna Systems

Provides proper impedance matching for antenna testing and deployment.

DAS Networks

Applied in distributed antenna systems for signal balancing and network optimization.

RF Laboratories

Suitable for RF measurement, calibration, and verification environments.

Microwave Communication Systems

Used in point-to-point microwave and wireless transmission equipment.

Aerospace Systems

Supports RF network integrity in mission-critical communication systems.

Why Use RF Termination Loads?

In RF communication systems, unused ports can cause signal reflections that negatively
affect transmission quality. Installing a properly matched RF termination load helps:

• Reduce VSWR (Voltage Standing Wave Ratio)
• Improve signal integrity
• Protect RF amplifiers
• Improve measurement accuracy
• Stabilize network performance
• Extend equipment lifespan

Customization Capabilities

As a custom RF component manufacturer, Sino-conn supports:

• 50Ω / 75Ω impedance options
• Low-power and high-power designs
• Various RF connector interfaces
• Different plating options
• Waterproof versions
• Outdoor communication applications
• Custom laser marking
• OEM branding
• Prototype development
• Volume production
