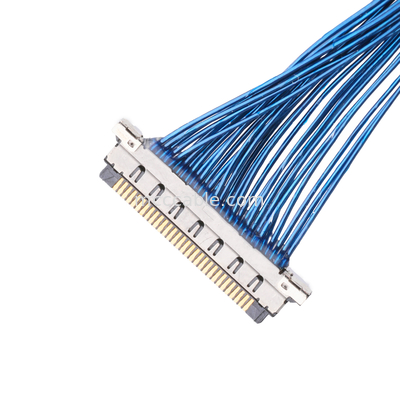

I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board

I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board
I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board

Large Image :  I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board

Product Details:
Place of Origin: China
Brand Name: Ipex
Certification: ISO9001
Model Number: 20345-025T-2R mini coaxial cable
Payment & Shipping Terms:
Minimum Order Quantity: quantity can be negotiable(Only Company, instead of personal use)
Price: Most favorable
Packaging Details: cartons
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 99999pcs per day

I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board

Description
Mating Direction: Horizontal Connector: 20345-025t-32r
Micro-Coaxial Cable (AWG): #40 #42 #44 #46 Available Pin: 10 15 20 25 30 35 40
Contact Pitch: 0.40 Mm Height: 1.15 Max (1.00 Nom.) ,
Depth: 5.65 Mm Ltem: Micro Coaxial Cable
Width Formula: 4.80+(0.4*?p) Mm Length: Customize
High Light:

lvds display mini coaxial cable

,

I-PEX CABLINE V mini coaxial cable

,

25 Pin Circuit Board mini coaxial cable

I-PEX CABLINE V mini coaxial cable 20345-025T-32R lvds display cable 25 pin circuit board pin connectors

Product parameter
Mating Direction
Horizontal
Contact pitch
0.40 mm
Height
1.15 Max (1.00 Nom.) ,
Depth
5.65 mm
Width Formula
4.80+(0.4*?p) mm
Pin count
10 15 20 25 30 35 40
Micro-Coaxial Cable (AWG)
#40 #42 #44 #46
Discrete Cable (AWG)
#36 #38 #39 #40 #42 #44 #46
Current rating
0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG #42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12 contacts
Applicable Standards (Reference Only)
USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
Full shielding (ZenShield®)
No
Mechanical lock
No
  • Narrow depth & width with friction lockI-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 0

  • Mechanical locking cover prevents incomplete mating and back-out/un-matingI-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 1

  • High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applicationsI-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 2

product advantages:

·Narrow depth & width with friction lock



·Mechanical locking cover prevents incomplete mating and back-out/un-mating

·High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications


Recommended models:
20345-010T-32R 20345-015T-32R 20345-020T-32R 20345-025T-32R 20345-030T-32R 20345-035T-32R
20345-040T-32R 20346-010T-32R 20346-015T-32R 20346-020T-32R 20346-025T-32R 20346-030T-32R
20346-035T-32R 20346-040T-32R 2047-0103 2047-0153 2047-0203 2047-0253
2047-0303 2047-0353 2047-0403 20347-310E-12R 20347-315E-12R 20347-320E-12R
20347-325E-12R 20347-330E-12R 20347-335E-12R 20347-340E-12R
I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 3
I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 4I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 5I-PEX CABLINE V Mini Coaxial Cable 20345-025T-32R Lvds Display 25 Pin Circuit Board 6

Q1. Is it a factory?
A: Yes,we have more than 19 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A: We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
