|Product Name:||RF Coaxial Connector||Material:||Brass|
|Keywords:||OEM Coaxial Connector||Function:||Dustproof|
|Usage:||Military/aerospace||Item:||Cable Joint Connector|
|Frequency Range:||DC - 26.5 GHz||Apply To:||Edge Mount PCB|

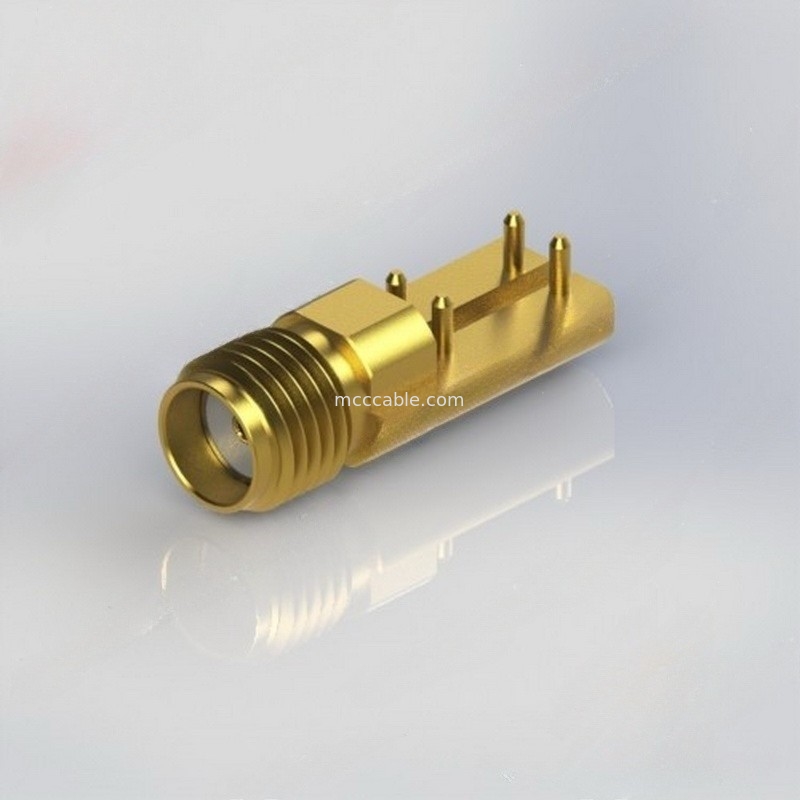

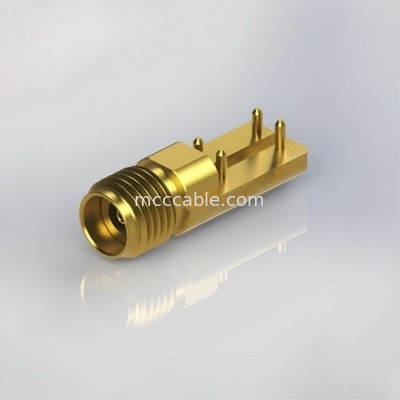

CONN SMA RF coax connector,
26.5 GHz RF coax connector,
Female RF Straight connector
with .015" Pin (with Feet) Edge Mount PCB CONN SMA RF Female Straight
coaxial connector 26.5 GHz
|VSWR:||1.30 Max @ 26.5 GHz|
|Frequency Range:||DC - 26.5 GHz|
|Durability:||≥ 500 Cycles|
|Apply to:||Edge Mount PCB|
● Impedance: 50 Ω ● Insulation Resistance: 5000 MΩ Min
● Frequency Range: DC - 26.5 GHz ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level)
● VSWR: 1.30 Max @ 26.5 GHz ● Contact Resistance: ≤ 3 mΩ (Center Contact)
● Insertion Loss: ≤ 0.31 dB @ 110 GHz ≤ 2 mΩ (Outer Contact)
● Mateable with 3.5 mm, 2.92 mm, SMK, K Series ● Center Contact Retention Force: 6 lbs Min
● Durability: ≥ 500 Cycles ● Coupling Torque: 7 - 10 lb-in Recommended
● Temperature Range: -65 ℃ to +165 ℃
Material & Finish
● Body: Brass, 10 μ" Gold ● Dielectric: Engineering Plastic, Natural
● Center Contact: Beryllium Copper, 30 μ" Gold
● High Volume Production Test Stations ● PCB Connections
● Research & Development Labs
● RoHS Compliant ● Good Stability Design ● High Performance
Typical Performance Data (@ 25℃)
DUT: 2 PCS SMA Female, Straight Connectors (Back to Back)
