|Product Name:||RF Coaxial Connector||Material:||Brass|
|Keywords:||OEM Coaxial Connector||Function:||Dustproof|
|Usage:||Military/aerospace||Item:||Cable Joint Connector|
|Frequency Range:||DC - 34 GHz||Apply To:||Edge Launch PCB|
3.5mm Cable Joint Connector,
Edge Launch RF Coaxial Connector,
Dustproof RF Coaxial Connector

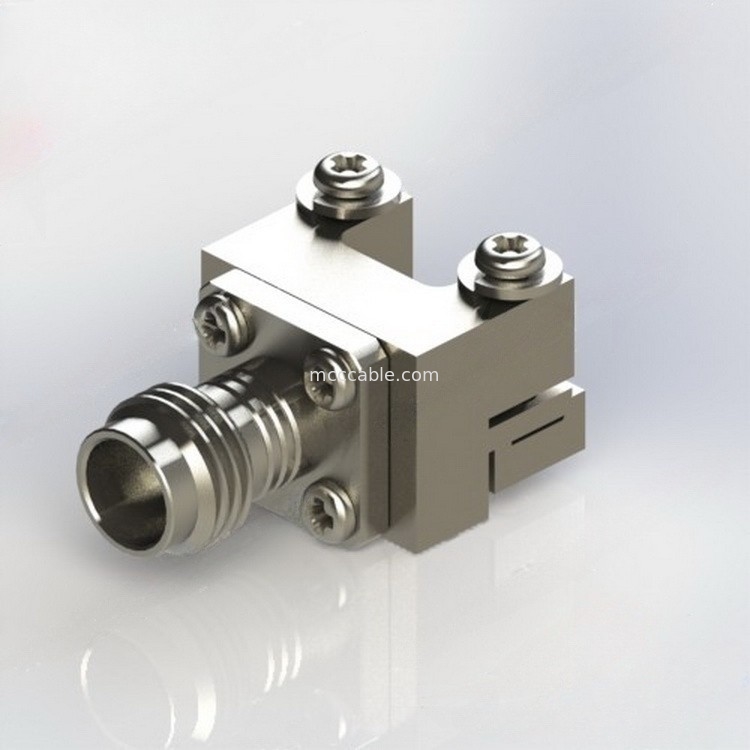

3.5 mm Board Connector Female To PCB Edge Launch
RF Coaxial Connector 34GHz with .007" Pin (Solderless)
|VSWR:||1.30 Max @ 34 GHz|
|Frequency Range:||DC - 34 GHz|
|Durability:||≥ 500 Cycles|
|Apply to:||Edge Launch PCB|
● Mateable with SMA, 2.92 mm, SMK, K Series ● Center Contact Retention Force: 6 lbs Min
● Durability: ≥ 500 Cycles ● Coupling Torque: 7 - 8 lb-in Recommended
● Temperature Range: -55 ℃ to +85 ℃
Material & Finish
● Body: Stainless Steel, Passivated ● Dielectric: Engineering Plastic, Natural
● Center Contact: Beryllium Copper, 30 μ" Gold
● High Volume Production Test Stations ● PCB Connections
● Research & Development Labs
● RoHS Compliant ● Good Stability Design ● High Performance
● Solderless & Removable Design (Optional) ● Stainless Steel for Long Mating-cycle Life
Typical Performance Data (@ 25℃)
DUT: 2 PCS 3.5 mm Female, Straight Connectors (Back to Back)
We offer our customers a small number of highly specialized cable and harness assemblies,
and our engineering department, production and quality control ensure the highest quality
of these unique components
Please feel free to contact us for custom OEM/ODM.
