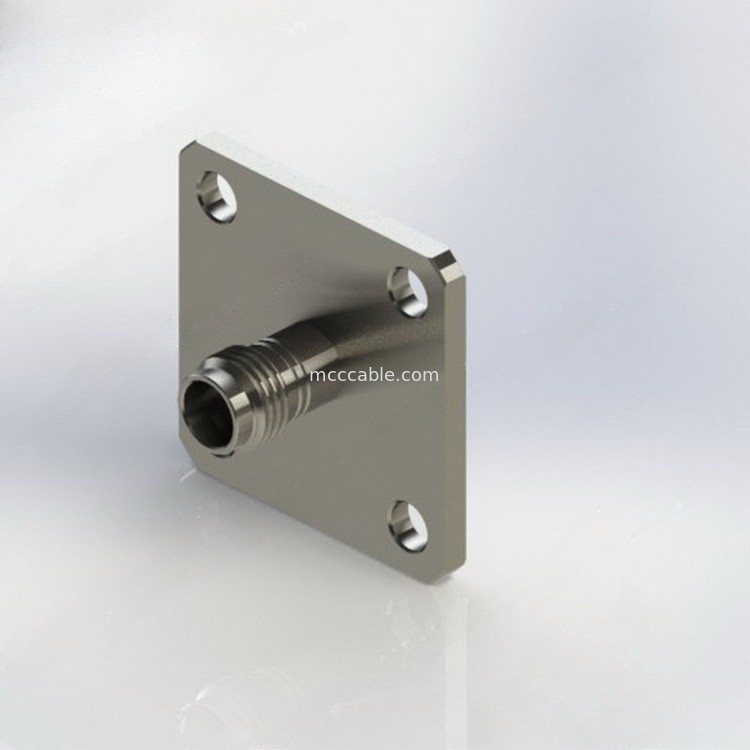

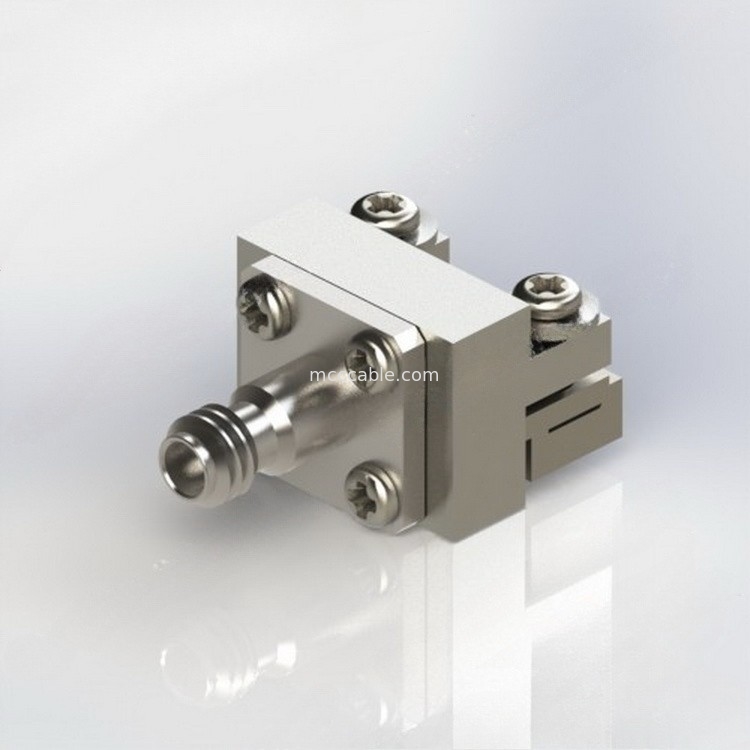

1mm RF Coaxial Connector Female W1 MmWave Straight 110 GHz Side Mount

Description
Product Name: RF Coaxial Connector Material: Brass
Keywords: OEM RF Coaxial Connector Function: Dustproof
Usage: Military/aerospace Frequency Range: DC - 110 GHz
Apply To: End Launch PCB Signal Aperture Size: With .005" Pin
High Light:

1mm RF coaxial connector

,

Side Mount RF coaxial connector

,

110 GHz RF coax connector

1 mm Connector Side Mount with .005" Pin (Solderless) Split

Female 1.0mm W1 mmWave Straight 110 GHz



Products Description

Impedance: 50 Ω
VSWR: 1.50 Max @ 110 GHz
Frequency Range: DC - 110 GHz
Durability: ≥ 500 Cycles
Apply to: End Launch PCB

Electrical

● Impedance: 50 Ω ● Insulation Resistance: 1000 MΩ Min

● Frequency Range: DC - 110 GHz ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level)

● VSWR: 1.50 Max @ 110 GHz ● Contact Resistance: ≤ 3 mΩ (Center Contact)

● Insertion Loss: ≤ 1.47 dB @ 110 GHz ≤ 2 mΩ (Outer Contact)
Mechanical

● Mateable with W1 Series ● Center Contact Retention Force: 3 lbs Min

● Durability: ≥ 500 Cycles ● Coupling Torque: 3.6 - 4.4 lb-in Recommended
Environmental

● Temperature Range: -55 ℃ to +165 ℃
Material & Finish

● Housing: Stainless Steel, Passivated ● Center Contact: Beryllium Copper, 50 μ" Gold

● Base: Brass, 100 μ" Nickel ● Dielectric: Engineering Plastic, Natural
Applications

● High Volume Production Test Stations ● PCB Connections
● Research & Development Labs
Features

● RoHS Compliant ● Good Stability Design ● High Performance

● Solderless & Removable Design (Optional) ● Stainless Steel for Long Mating-cycle Life
Typical Performance Data (@ 25℃)

DUT: 2 PCS 1 mm Female, Straight Connectors (Back to Back)
