|Product Name:||RF Coaxial Connector||Material:||Brass|
|Keywords:||Edge Mount RF Connector||Function:||Dustproof|
|Usage:||Military/aerospace||Item:||RF Straight Connector|
|Frequency Range:||DC - 40 GHz||Apply To:||Through Hole PCB|
Female RF Coaxial Connector,
Through Hole RF Coaxial Connector,
40GHz RF Female Connector

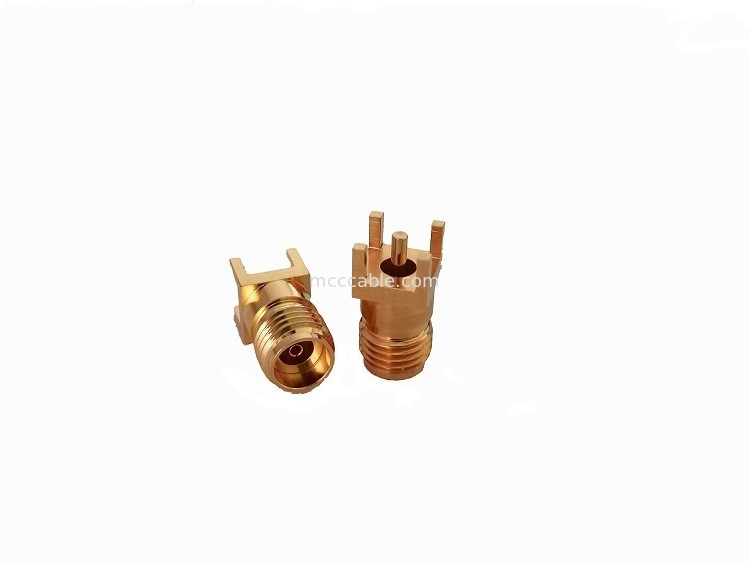

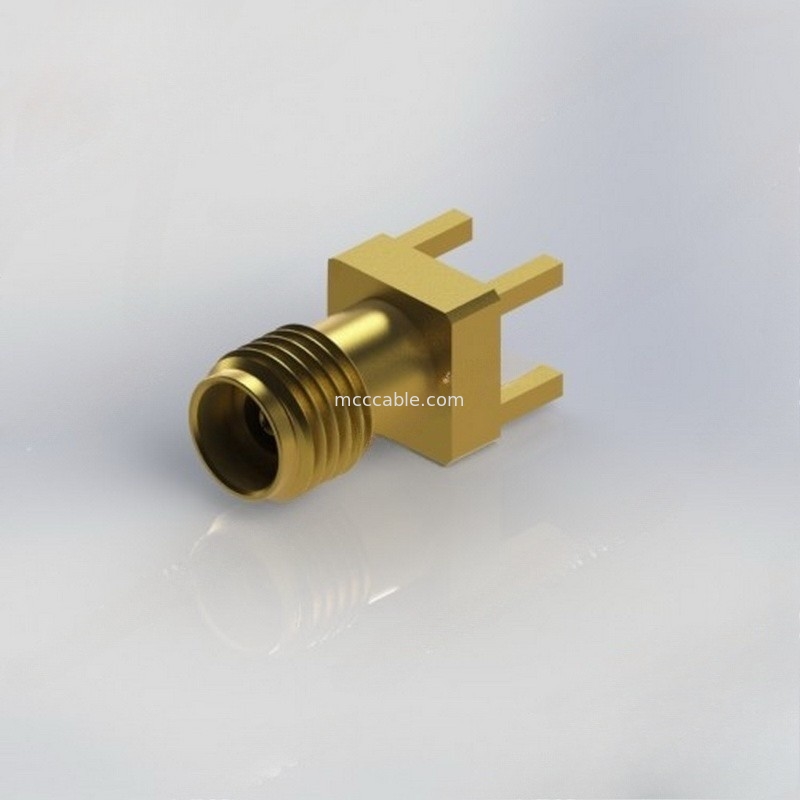

2.92 RF Connector Female Through Hole RF Coaxial 40GHz
Female Connector Amphenol 1521-60210
|VSWR:||1.30 Max @ 40 GHz|
|Frequency Range:||DC - 40 GHz|
|Durability:||≥ 500 Cycles|
|Apply to:||Through Hole PCB|
● Impedance: 50 Ω ● Insulation Resistance: 5000 MΩ Min
● Frequency Range: DC - 40 GHz ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level)
● VSWR: 1.30 Max @ 40 GHz ● Contact Resistance: ≤ 3 mΩ (Center Contact)
● Insertion Loss: ≤ 0.38 dB @ 40 GHz ≤ 2 mΩ (Outer Contact)
● Mateable with SMA, 3.5 mm, SMK, K Series ● Center Contact Retention Force: 6 lbs Min
● Durability: ≥ 500 Cycles ● Coupling Torque: 7 - 8 lb-in Recommended
● Temperature Range: -55 ℃ to +85 ℃
Material & Finish
● Body: Brass, 10 μ" Gold ● Dielectric: Engineering Plastic, Natural
● Center Contact: Beryllium Copper, 30 μ" Gold
● High Volume Production Test Stations ● PCB Connections
● Research & Development Labs
● RoHS Compliant ● Good Stability Design
● High Performance
Typical Performance Data (@ 25℃)
DUT: 2 PCS 2.92 mm Female, Straight Connectors (Back to Back)
We offer our customers a small number of highly specialized cable and harness assemblies,
and our engineering department, production and quality control ensure the highest quality
of these unique components
Please feel free to contact us for custom OEM/ODM.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the Amphenol 1521-60210 cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
