CABLINE V 20345-010T-32R 20346-010T-32R 0.5 mm pitch, Horizontal mating type micro-coaxial connector

Customer Reviews
Quick response with high quality, very professional in this area.

—— Samuel Kanu

Really happy working with them, Very professional.

—— Abas Pourhadi

I'm Online Chat Now

CABLINE V 20345-010T-32R 20346-010T-32R 0.5 mm pitch, Horizontal mating type micro-coaxial connector

CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector

Large Image :  CABLINE V 20345-010T-32R 20346-010T-32R 0.5 mm pitch, Horizontal mating type micro-coaxial connector

Product Details:
Place of Origin: China
Brand Name: Ipex
Certification: ISO9001
Model Number: CABLINE V 20345-10
Payment & Shipping Terms:
Minimum Order Quantity: quantity can be negotiable(Only Company, instead of personal use)
Price: Most favorable
Packaging Details: cartons
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 99999 pcs per day

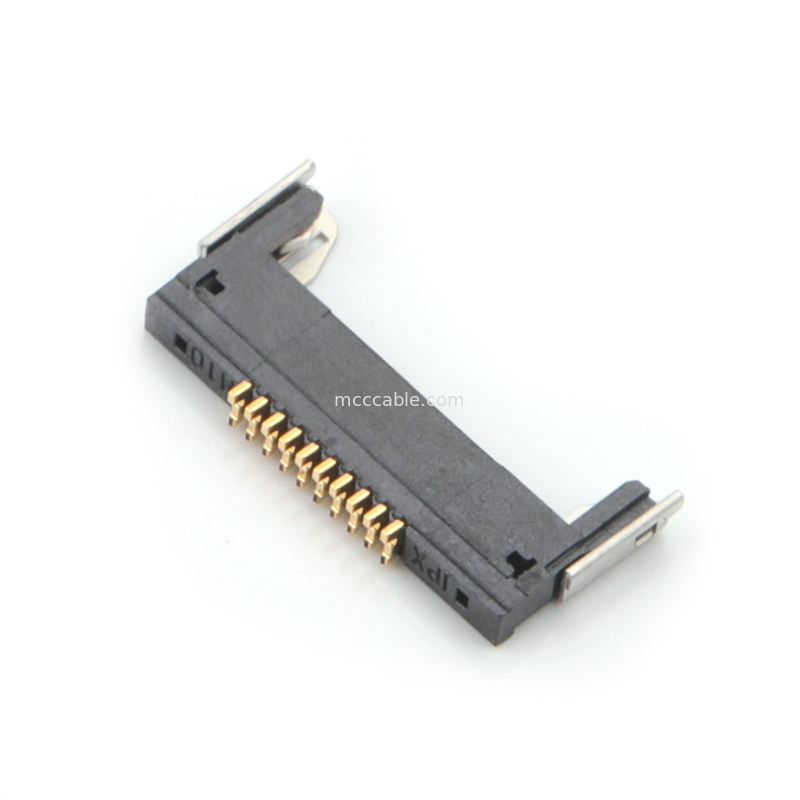

CABLINE V 20345-010T-32R 20346-010T-32R 0.5 mm pitch, Horizontal mating type micro-coaxial connector

Description
Mating Direction: Horizontal Contact Pitch: 0.40 Mm
Height: 1.15 Max (1.00 Nom.) , Depth: 5.65 Mm
Width Formula: 4.80+(0.4*10p) Mm Pin Count: 10 15 20 25 30 35 40
Micro-Coaxial Cable (AWG): #40 #42 #44 #46 Discrete Cable (AWG): #36 #38 #39 #40 #42 #44 #46
Current Rating: 0.1A AC/DC [AWG #44] Per Contact/up To 40 Contacts 0.24A AC/DC [AWG #42] Per Contact/up To 40 Contacts 0.3A AC/DC [AWG #40] Per Contact/up To 40 Contacts 0.8A AC/DC [AWG #36] Per Contact/up To 12 Contacts Applicable Standards (Reference Only): USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) EDP (2.7 Gbps) MiPi Standards
Full Shielding (ZenShield): No Mechanical Lock: No
High Light:

Narrow depth micro coaxial lvds cable

,

0.40 mm micro coaxial lvds cable

,

micro coaxial lvds connector cable

CABLINE V 20345-010T-32R 20346-010T-32R 2047-0103 20347-310E-12R

micro-coaxial lvds cable

  • Narrow depth & width with friction lock

  • Mechanical locking cover prevents incomplete mating and back-out/un-mating

  • High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications

Contact Pitch (mm):
0.400
Height:
1.15 Max (1.00 Nom.) ,
Available Pin Count:
10 15 20 25 30 35 40
Micro-Coaxial Cable (AWG):
#40 #42 #44 #46
Mating Direction:
Horizontal
Mating Direction Horizontal
Contact pitch 0.40 mm
Height 1.15 Max (1.00 Nom.) ,
Depth 5.65 mm
Width Formula 4.80+(0.4*?p) mm
Pin count 10 15 20 25 30 35 40
Micro-Coaxial Cable (AWG) #40 #42 #44 #46
Discrete Cable (AWG) #32 #34 #36 #38 #39 #40 #42 #44 #46
Current rating 0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG #42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12 contacts
Applicable Standards (Reference Only) USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
Mechanical lock No
Full shielding (ZenShield®) No



Narrow depth & width with friction lock

lvds cable

Mechanical locking cover prevents incomplete mating and

back-out/un-matin

CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector 1

High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane)

applications

CABLINE V 20345-010T-32R 20346-010T-32R  0.5 mm pitch, Horizontal mating type micro-coaxial connector 2
