|Mating Direction:||Horizontal||Contact Pitch:||0.40 Mm|
|Height:||1.10 Max (1.00 Nom.) ,||Depth:||5.73 Mm|
|Width Formula:||6.95+(0.4*?p) Mm||Pin Count:||10 12 20 30 40 50 60|
|Micro-Coaxial Cable (AWG):||#38 #40 #42 #44 #46||Discrete Cable (AWG):||#34 #36 #38 #39 #40 #42 #44 #46|
|Current Rating:||0.1A AC/DC [AWG #44] Per Contact/up To 60 Contacts 0.24A AC/DC [AWG #42] Per Contact/up To 50 Contacts 0.3A AC/DC [AWG #40] Per Contact/up To 40 Contacts 0.5A AC/DC [AWG #38] Per Contact/up To 14 Contacts 0.8A AC/DC [AWG #36] Per Contact/up To 6 Contacts 1||Applicable Standards (Reference Only):||USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) EDP HBR 3 (8.1 Gbps) EDP HBR 2 (5.4 Gbps) EDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi Standards|
|Full Shielding (ZenShield®):||No||Mechanical Lock:||Yes|

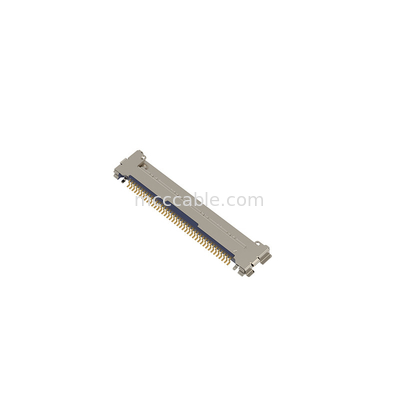

5.73 mm micro coaxial lvds cable,
Mechanical lock micro coaxial lvds cable,
0.40 mm lvds Micro Coaxial Cable
|Height||1.10 Max (1.00 Nom.) ,|
|Width Formula||6.95+(0.4*?p) mm|
|Pin count||10 12 20 30 40 50 60|
|Micro-Coaxial Cable (AWG)||#38 #40 #42 #44 #46|
|Discrete Cable (AWG)||#34 #36 #38 #39 #40 #42 #44 #46|
|Current rating||0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 4 contacts|
|Applicable Standards (Reference Only)||USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards|
|Full shielding (ZenShield®)||NO|
LVDS 1994 is a signal transmission mode proposed by National Semiconductor. It has very low power consumption while increasing the data transmission rate. In addition, it has many other advantages:
1. Low voltage power supply compatibility
2. Low noise
3. High noise suppression function
4. Reliable signal transmission
5. Ability to integrate within a system-level IC
SINO-TECH is a cable component manufacturer with more than 11 years of history. It is widely used in
industrial control large or small equipment. Video transmission cable with LCD screen and motherboard cable ,
Most of the current products are used in liquid crystal electronic products, such as our current Video transmission
cable with LCD screen and motherboard cable lvds cable, lcd cable. edp cable, usually used in computers,
televisions, mobile phones, cameras, treadmills, etc.
