| Mating Direction: | Horizontal | Contact Pitch: | 0.50 Mm |
|---|---|---|---|
| Height: | 1.10 Max (1.00 Nom.) , | Depth: | 5.80 Mm |
| Width Formula: | 7.55+(0.5*?p) Mm | Pin Count: | 20 30 40 50 |
| Micro-Coaxial Cable (AWG): | #36 #38 #40 #42 #44 #46 | Discrete Cable (AWG): | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current Rating: | 0.1A AC/DC [AWG #44] Per Contact/up To 50 Contacts 0.24A AC/DC [AWG #42] Per Contact/up To 50 Contacts 0.3A AC/DC [AWG #40] Per Contact/up To 50 Contacts 0.5A AC/DC [AWG #38] Per Contact/up To 14 Contacts 0.8A AC/DC [AWG #36] Per Contact/up To 10 Contacts | Applicable Standards (Reference Only): | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) EDP HBR 3 (8.1 Gbps) EDP HBR 2 (5.4 Gbps) EDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi Standards |
| Full Shielding (ZenShield®): | No | Mechanical Lock: | Yes |
| High Light: | CABLINE-VS micro coaxial cable connector,Mechanical lock micro coaxial cable connector,0.50 mm pitch micro coax connector |
||

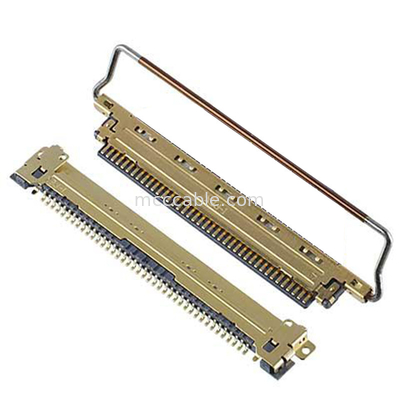

CABLINE-VS 20453 20454 20455-240T A40E-76 2574 2576-0402
Coaxial cable RECEPTACLE plug shell housing lock cover
| Mating Direction | Horizontal |
| Contact pitch | 0.50 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.80 mm |
| Width Formula | 7.55+(0.5*?p) mm |
| Pin count | 20 30 40 50 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Mechanical lock | Yes |
| Full shielding (ZenShield®) | No |
