Product Details:
|

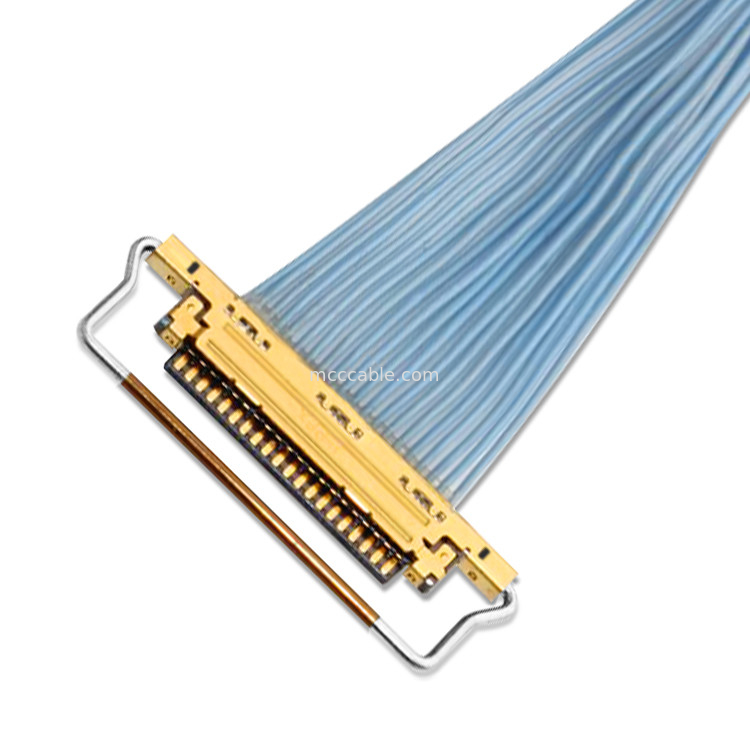

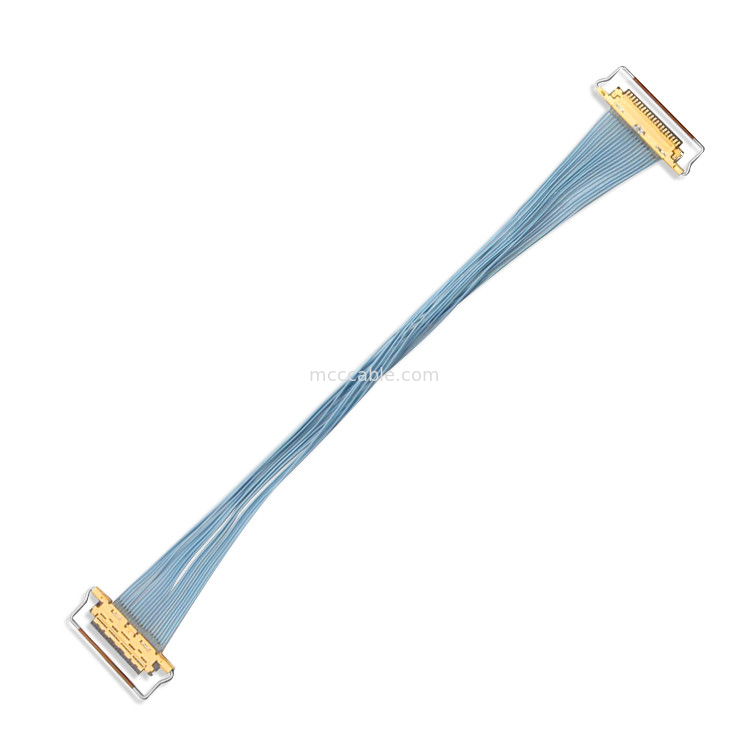

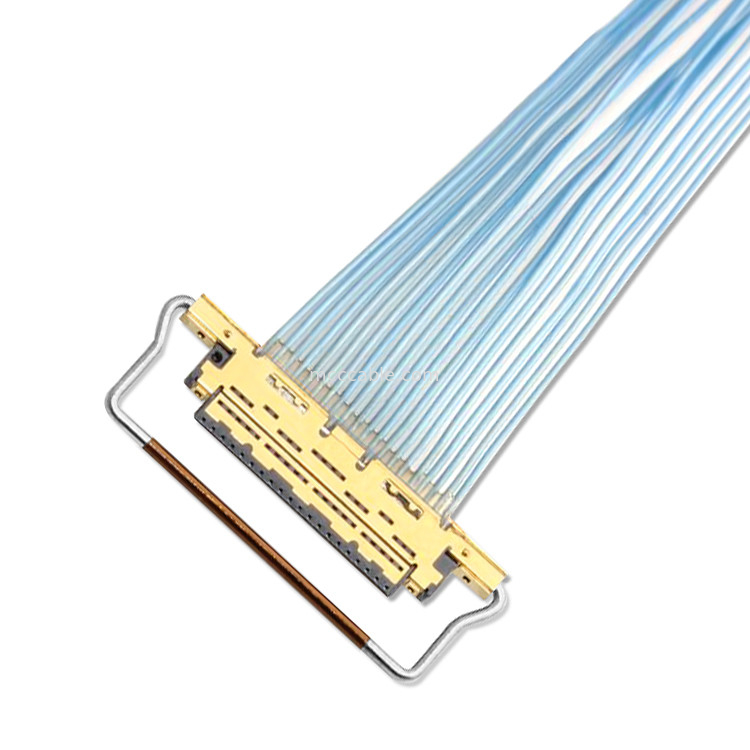

| Product Name: | I-PEX 0.4pitch 20633-220T-01S To 20633-220T-01S Lvds Edp MICRO COAXIAL Cable Assembly | Connector A: | I-pex 20633-220T-01S |
|---|---|---|---|
| Item: | 20pin | Service: | Design |
| Express: | DHL FEDEX UPS TNT | Contact Pitch: | 0.4mm Pitch |
| Pin Count: | 20 | Type: | I-PEX |
| High Light: | Lvds Edp Coaxial Cable Assembly,SGC Edp Coaxial Cable Assembly,20P Micro Coax Cable Assembly |
||
| Pin count | 10 12 20 30 40 50 60 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) |
#34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 4 contacts |
| Cable assembly and harness assembly types | LVDS cable, eDP cable, MCX cable, SGC cable |
| Types of miniature coaxial cable assemblies | welding, crimping, IDC, forming |
The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial
cable assembly, LVDS eDP transmission,HRS cable, I-PEX cable, Hirose Micro Shaft cable, KEL micro
coaxial cable, ACES micro coaxial cable, etc.
ACES cable ,LVDS cable assembly,LCD cable,eDP cable,IPEX LVDS cable,LCD Ribbon cable
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tablet PC Application of Mini Coaxial Cable Assembly
Conductor size: 36AWG, 40AWG and 42AWG
Flexible and twistable fine pitch coaxial cable assembly
Fine pitch connector termination (0.4mm, 30-pin)
Ultra-thin wire harness for mobile equipment
Transition application: 480Mbps
Enhanced EMI/EMC solution fine pitch coaxial cable assembly
Notebook computer application of thin coaxial cable assembly
Conductor size: 36AWG, 40AWG and 42AWG
Flexible and twistable thin coaxial cable
Fine pitch connector termination (0.4mm, 30-pin)
Cable bundle application with slim hinge: eDP, bandwidth up to 7GHz
Our factory uses the following internal equipment to ensure the highest quality mini coaxial cable assemblies.
Company Profile
1.SINO-TECH has more than 10 years of experience in designing and customizing cable assemblies and
waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial
cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable
assemblies.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
