|Contact Pitch:||0.5 Mm Pitch||Product Name:||20846-040T-01 Micro Coaxial Cable Lvds Cable|
|Micro-Coaxial Wire (AWG):||#42 #44 #46||Connector::||20846-040T-01|
|Type:||Micro Coaxial Cable||Express:||DHL FEDEX UPS TNT|
6 PIN Micro Coaxial Cable,
I Pex 20788 060T 01 6 coaxial cable,
I Pex 20788 060T 01 Micro Coaxial Cable
CABLINE-CA II PLUS
|Contact pitch||0.40 mm|
|Width Formula||6.95+(0.4*?p) mm|
|Micro-Coaxial Cable (AWG)||#38 #40 #42 #44 #46|
|Discrete Cable (AWG)||#34 #36 #38 #39 #40 #42 #44 #46|
|Current rating||0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 60 contacts 0.3A AC/DC [AWG #40] per contact/up to 60 contacts 0.5A AC/DC [AWG #38] per contact/up to 18 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts|
|Applicable Standards (Reference Only)||USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards|
|Full shielding (ZenShield®)||Yes|
VR HEADSET / Dual Display (LCoS, RPDs)
Laptop Board / Flex-to-Board

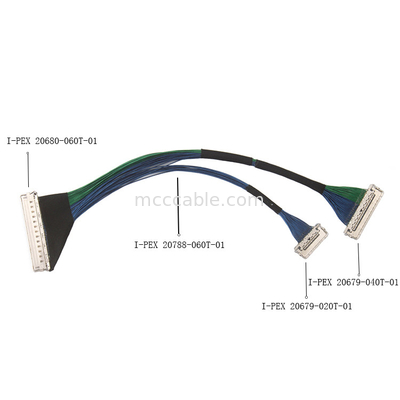

I-PEX CABLINE CA-II Plus (20788-060T-01) is a 0.4 mm pitch, which one has been selected by Mellanox Technologies as a provider for low-profile cable assembly connectors on part of their high-speed network ConnectX-6 adapters and BlueField controllers portfolio.
Besides, I-PEX 20788-060T-01 is available in several sizes. The Plus version has expanded ground contacts to allow for easier routing. The system offers full EMI shielding around the terminations and board connector.
We Now Support
Support of popular connector manufacturers such as IPEX, ACES, UJU, JAE,kel and others
Free Engineering Support / Low MOQ’s (10pcs in most cases, samples when available)
Turnkey solutions from Prototype to Production
Twisted Pair and Micro Coax (LVDS & eDP Transmission)
Complete custom micro coaxial cable assemblies
Micro Coax to standard hookup wire (28AWG) transition boards (LVDS)
Micro Coax to 28AWG flying leads (via transition board) (LVDS)
Value added services (such as EMI shielding)
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
