Dual-Angle USB 3.0 Type-A Expansion Bracket for Internal Motherboard Headers

PH22C Dual-Angle USB 3.0 Expansion Bracket Overview

The PH22C is an internal USB 3.0 header expansion bracket designed to provide

dual-angle USB 3.0 Type-A connectivity. It offers a practical solution for extending

internal motherboard USB connections to accessible mounting positions.

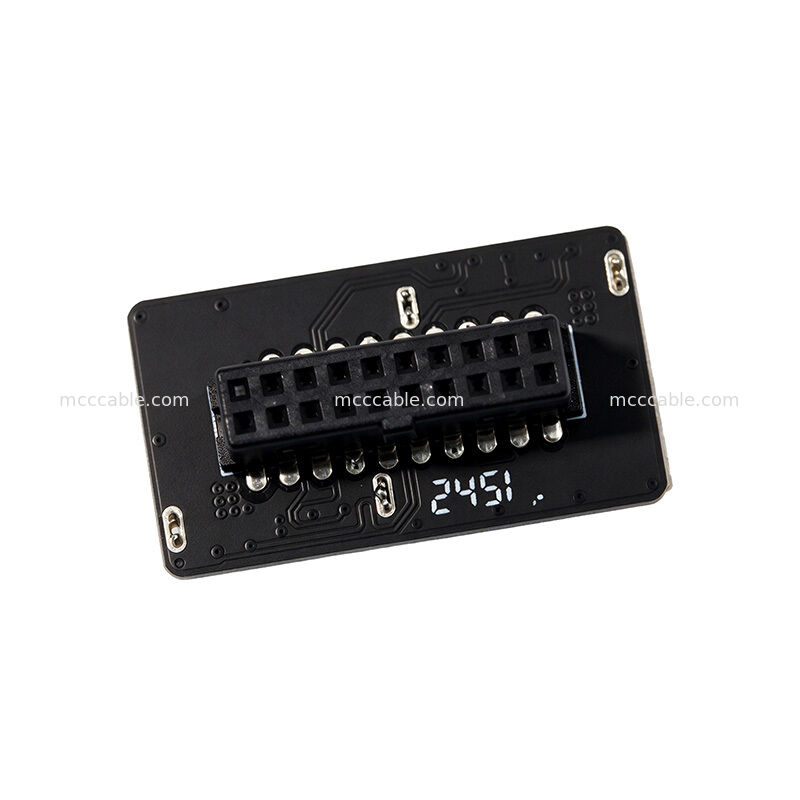

PH22C Internal USB 3.0 Header Connection

The PH22C is designed for connection to a compatible internal USB 3.0 motherboard

header. It supports internal USB interface expansion for PC builds and other compatible

electronic configurations.

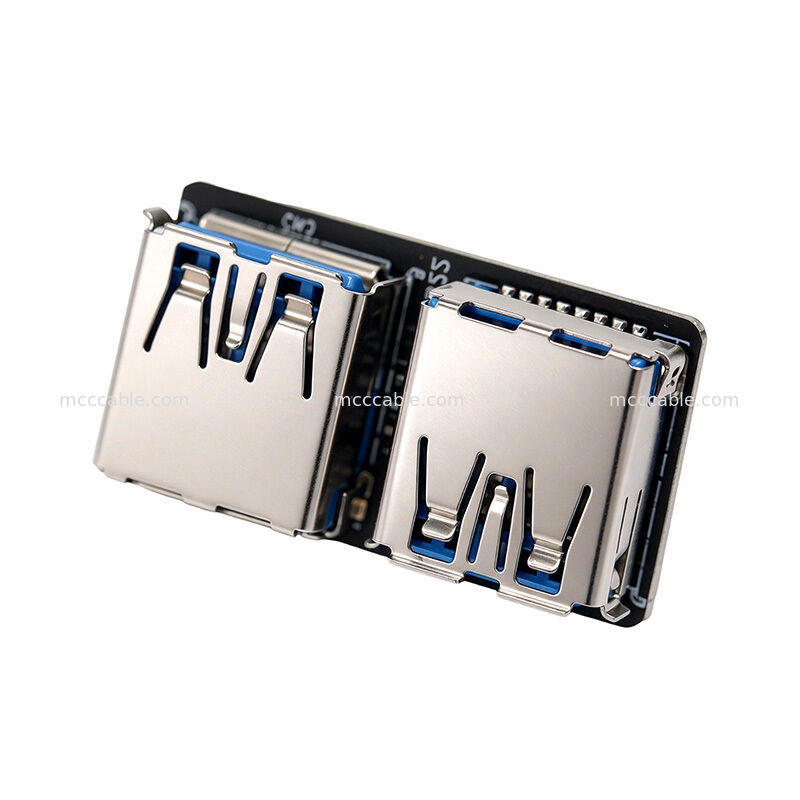

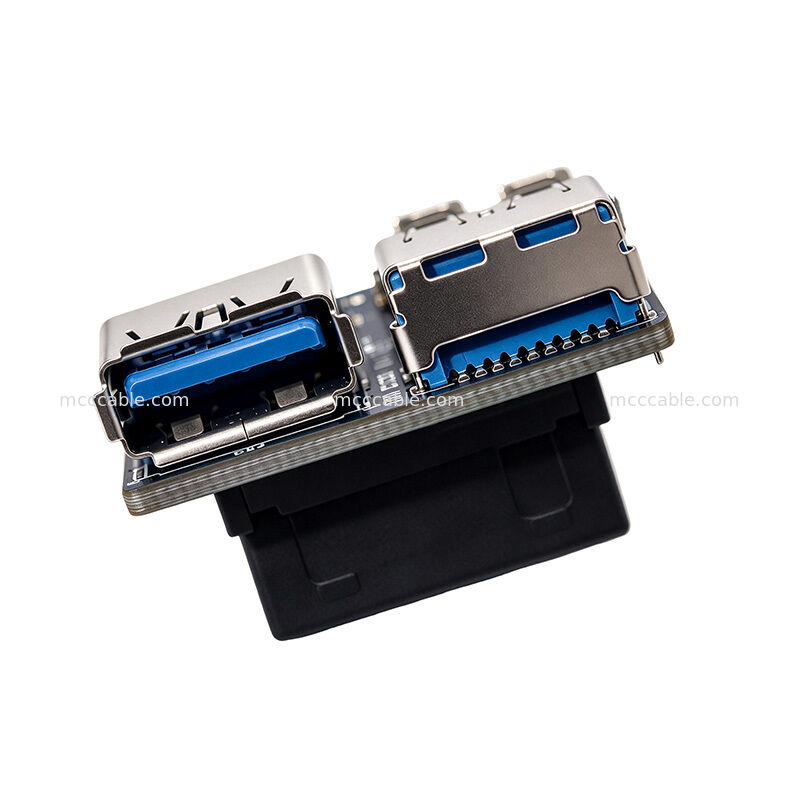

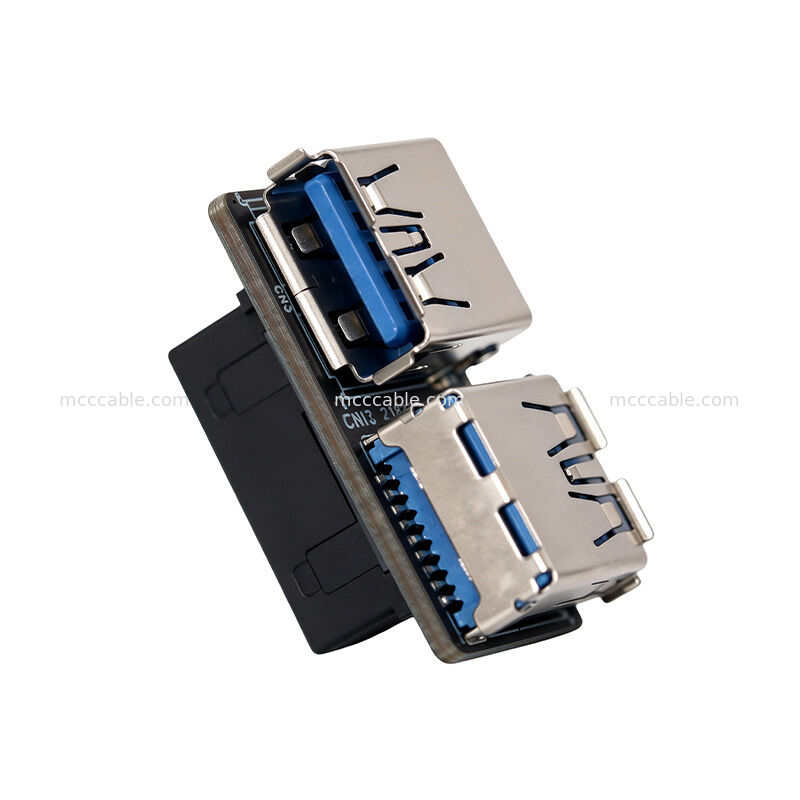

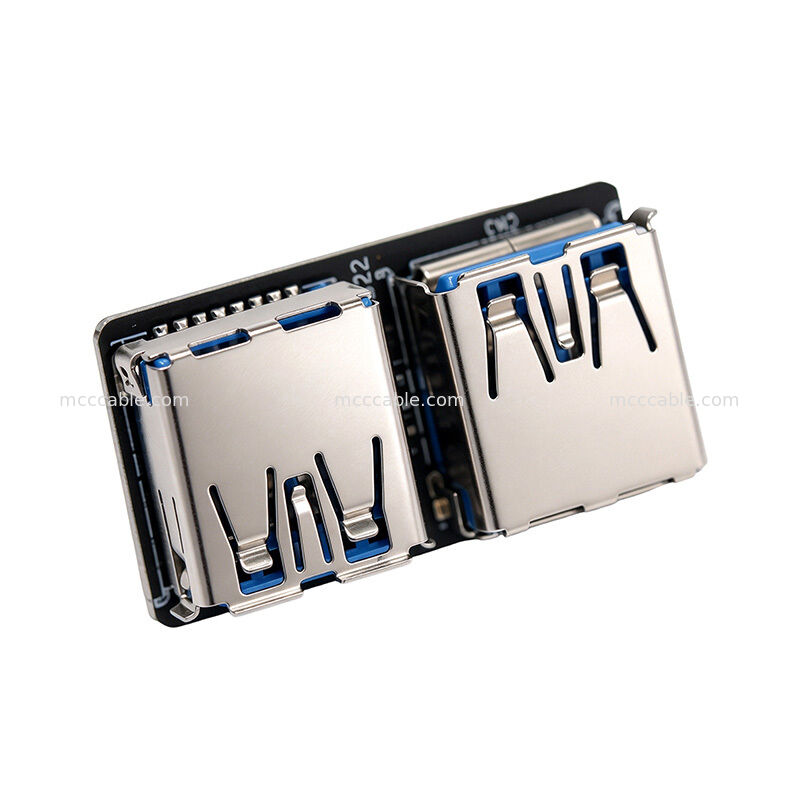

PH22C Dual-Angle Connector Design

Featuring a dual-angle layout, the PH22C is designed to accommodate different connector

orientations and installation requirements. Its configuration can help simplify USB port

positioning within space-constrained enclosures.

PH22C USB 3.0 Type-A Expansion Interface

The PH22C provides USB 3.0 Type-A expansion interfaces for compatible hardware setups.

It is suitable for applications that require additional USB port access through an internal

motherboard connection.

PH22C Product Specifications

PH22C Applications and Integration

The PH22C expansion bracket can be considered for desktop PC assembly, custom computer

builds, and compatible electronic systems requiring internal USB 3.0 header expansion. Please

verify motherboard header compatibility, mounting requirements, and connector orientation

before ordering.
