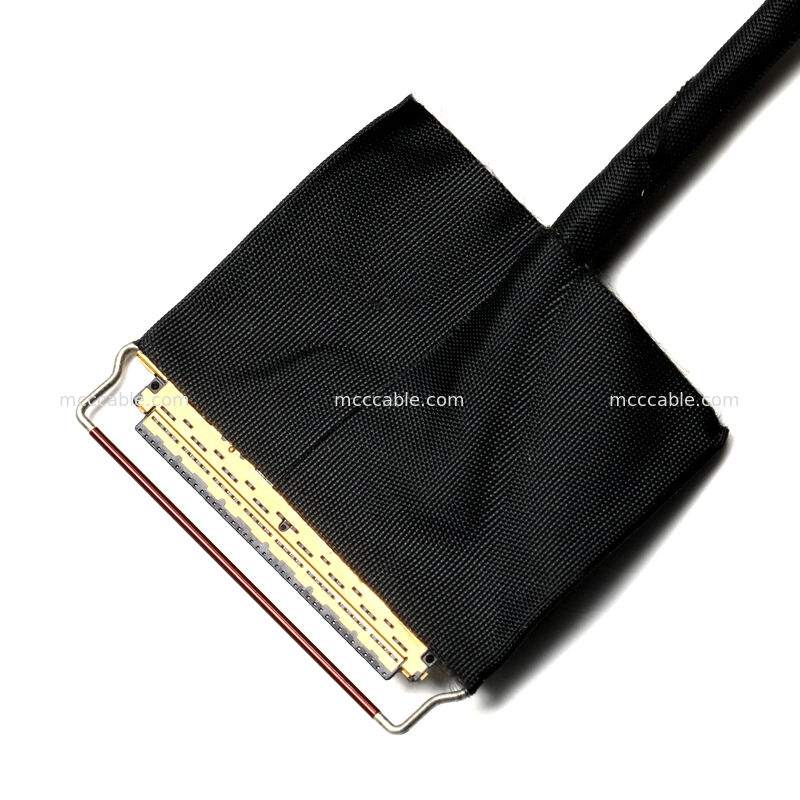

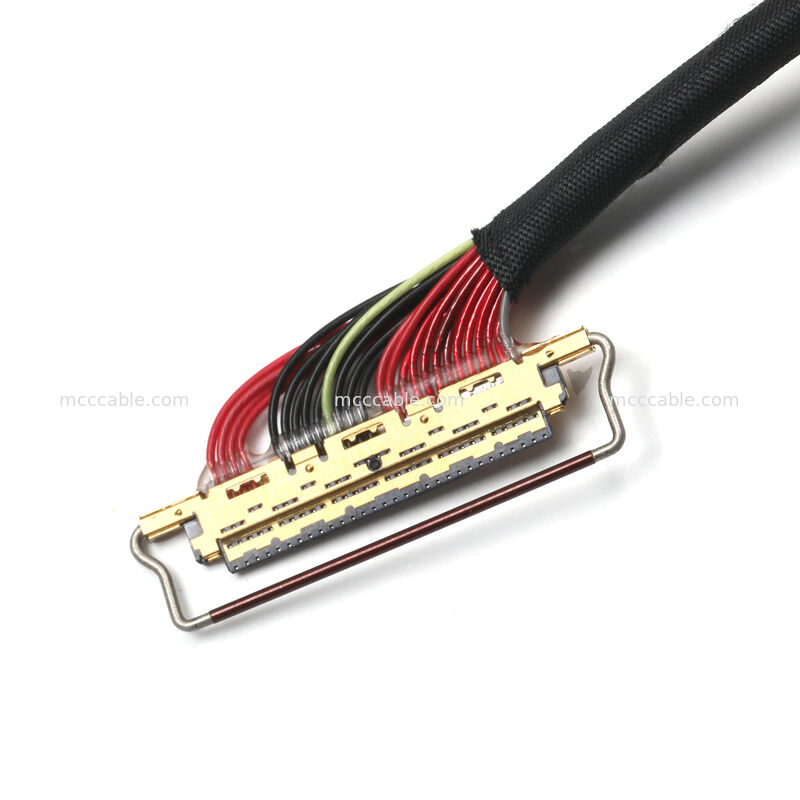

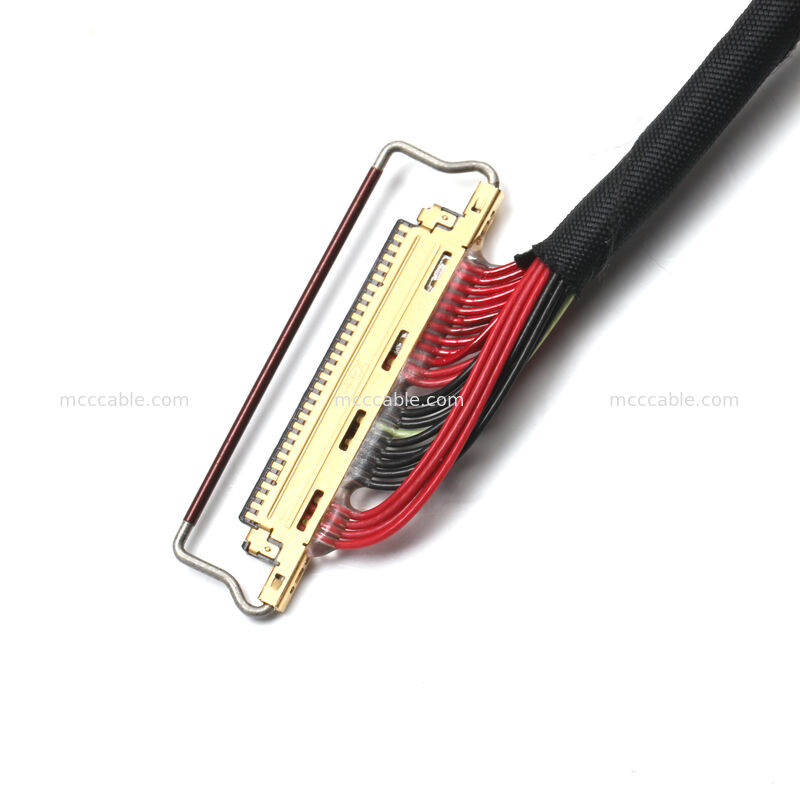

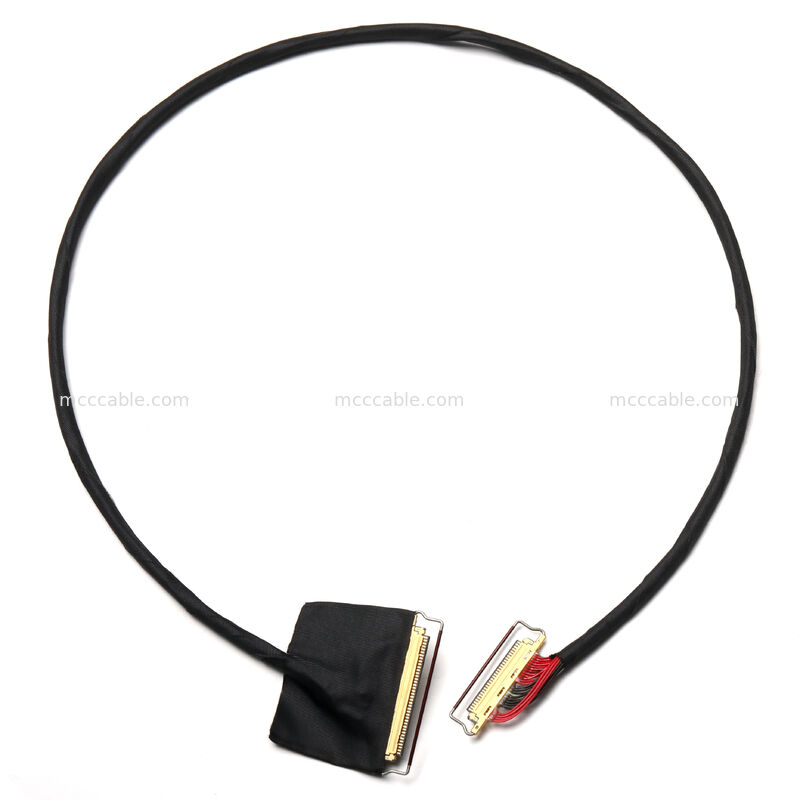

20453-030T to 20453-040T eDP Micro Coax Cable Assembly
20453-030T to 20453-040T eDP Micro Coax Cable Assembly
for LCD Display
eDP Cable Assembly Overview:
This eDP cable assembly is designed for high-speed signal transmission between embedded
display panels and mainboards in electronic systems. The cable connects a 20453-040T 40-pin
display interface connector to a 20453-030T 30-pin display connector, enabling reliable
transmission of Full HD video signals.
The assembly integrates micro-coaxial signal cables and discrete power wires, ensuring stable
high-speed differential signal performance required for embedded DisplayPort (eDP) communication.
A conductive shielding sleeve is used to reduce electromagnetic interference and maintain signal
integrity during high-speed signal transmission. The entire cable is protected by an outer
non-conductive sleeve to improve durability and installation reliability.
This cable assembly is widely used in industrial computers, embedded systems, LCD monitors,
panel PCs, and medical display equipment where stable display signal transmission is required.
As a professional custom cable assembly manufacturer, we provide OEM and ODM services
according to customer drawings or technical specifications.
eDP Cable Assembly Construction:
Connector A
Connector B
Cable structure
Cable protection
Signal wiring
All structural details follow the approved engineering drawings.
eDP Cable Assembly Electrical Data:
| Item | Specification |
|---|---|
| Cable Type | eDP Micro-Coax Cable Assembly |
| Connector A | 20453-040T 40 Pin |
| Connector B | 20453-030T 30 Pin |
| Cable Length | 350 mm |
| Signal Interface | Embedded DisplayPort (eDP) |
| Signal Type | High-Speed Differential Signal |
| Display Support | Full HD eDP Transmission |
| Wire Gauge | #32 / #36 |
| Shielding | Conductive Shield Sleeve |
| Assembly Type | LCD Display Cable Assembly |
eDP Cable Assembly Applications:
This cable assembly is suitable for high-speed display connections in various electronic
systems, including:
The cable provides stable transmission between embedded display panels and system
mainboards through the eDP interface.
eDP Cable Assembly Customization:
The cable assembly can be customized according to project requirements, including:
OEM and ODM cable assembly services are supported. Custom display cable assemblies
can be manufactured according to customer drawings or technical requirements.
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
