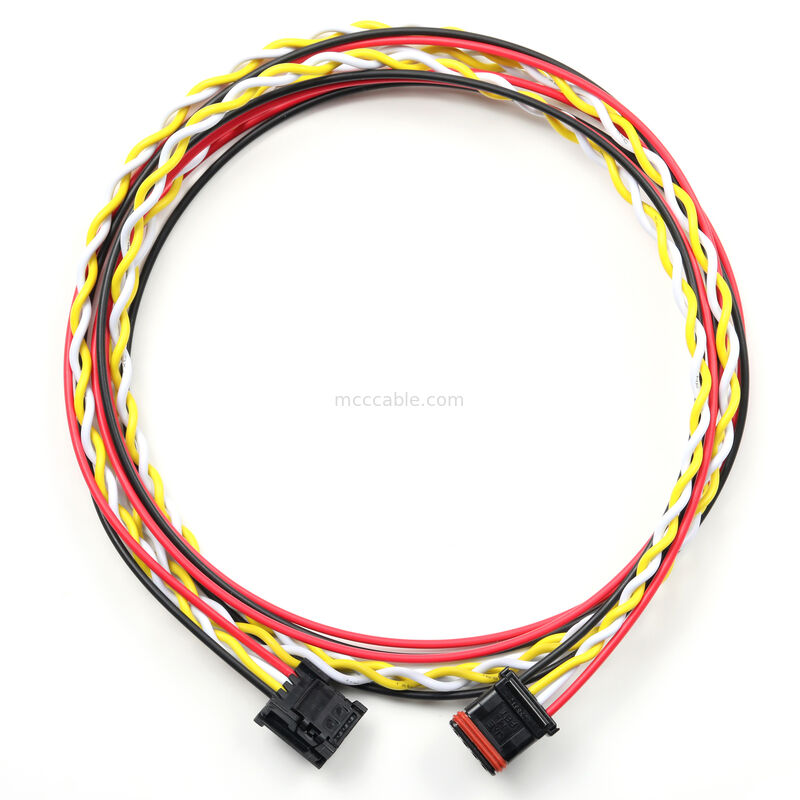

Industrial Camera Cable Assembly with JAE & Molex
Connectors 1000mm
Industrial Camera Cable Assembly:
This industrial camera cable assembly is designed for reliable signal and power transmission
between a camera board and a receiver board, featuring a JAE MX19004 series connector
on the camera side and a Molex 347910040 connector on the receiver side.
The cable integrates twisted differential signal pairs for data transmission and separate power
and ground lines to ensure stable performance and reduced electromagnetic interference.
With a standard length of 1000 ±100 mm, this assembly is suitable for industrial vision systems,
embedded imaging equipment, and automation applications.
All assemblies are manufactured under strict quality control and are 100% electrically tested
before delivery.
Key Features OF Industrial Camera Cable Assembly:
Designed for industrial camera & receiver board connection

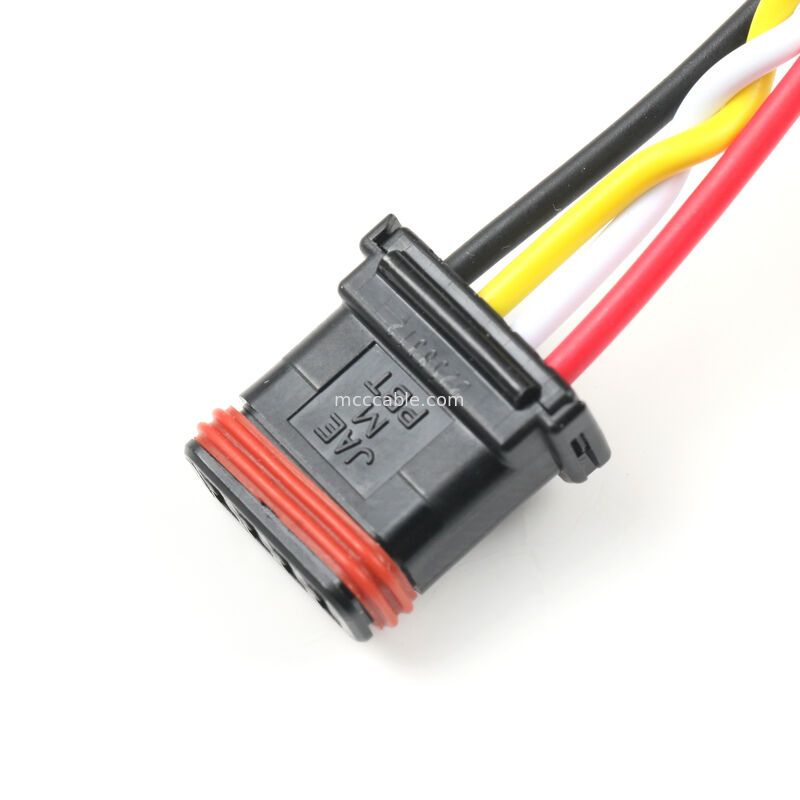

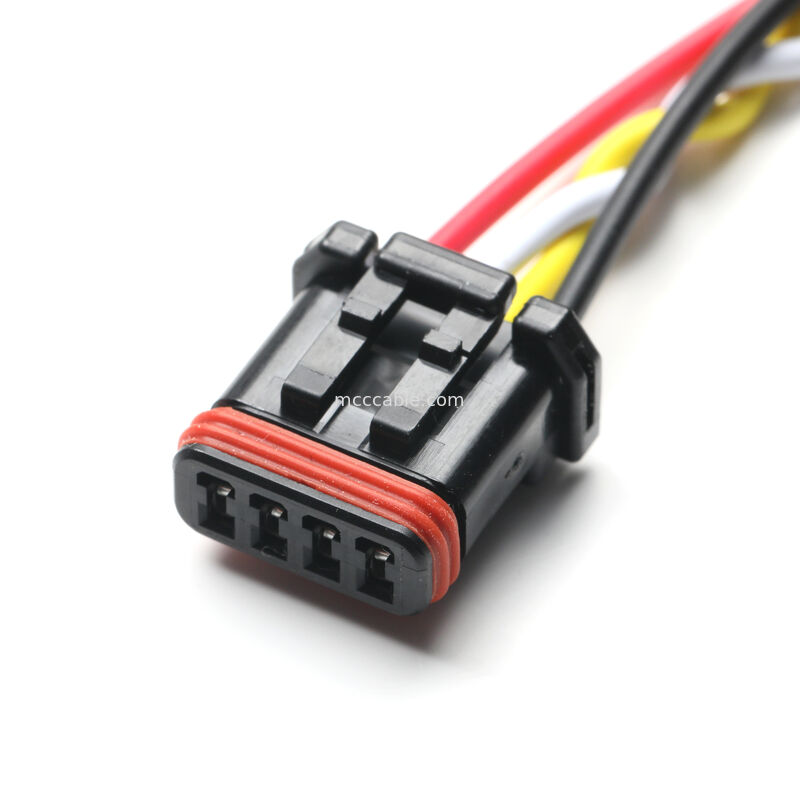

JAE MX19004 housing + MX19S10K451 crimp

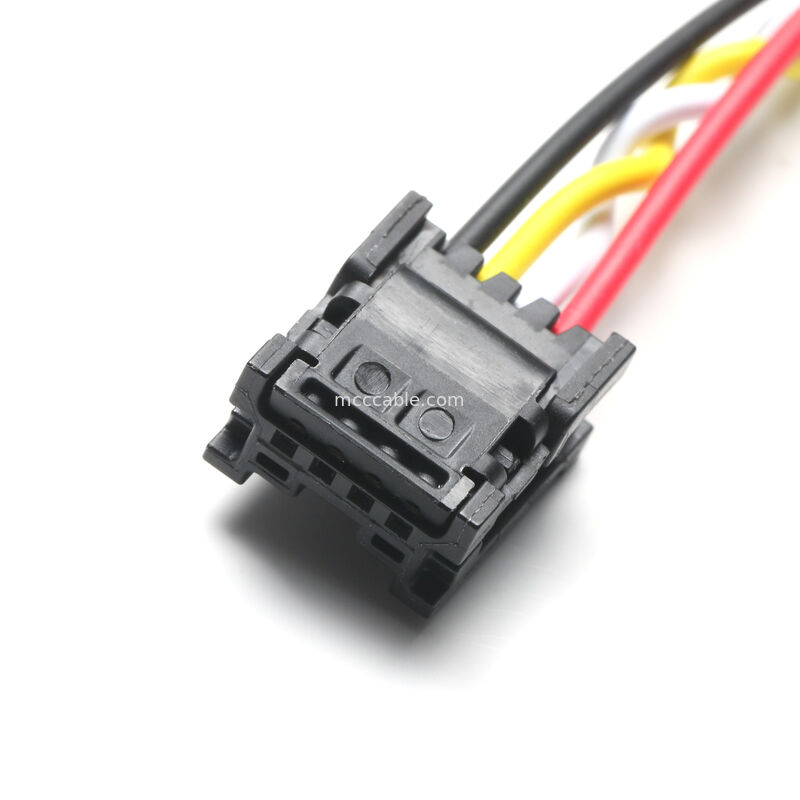

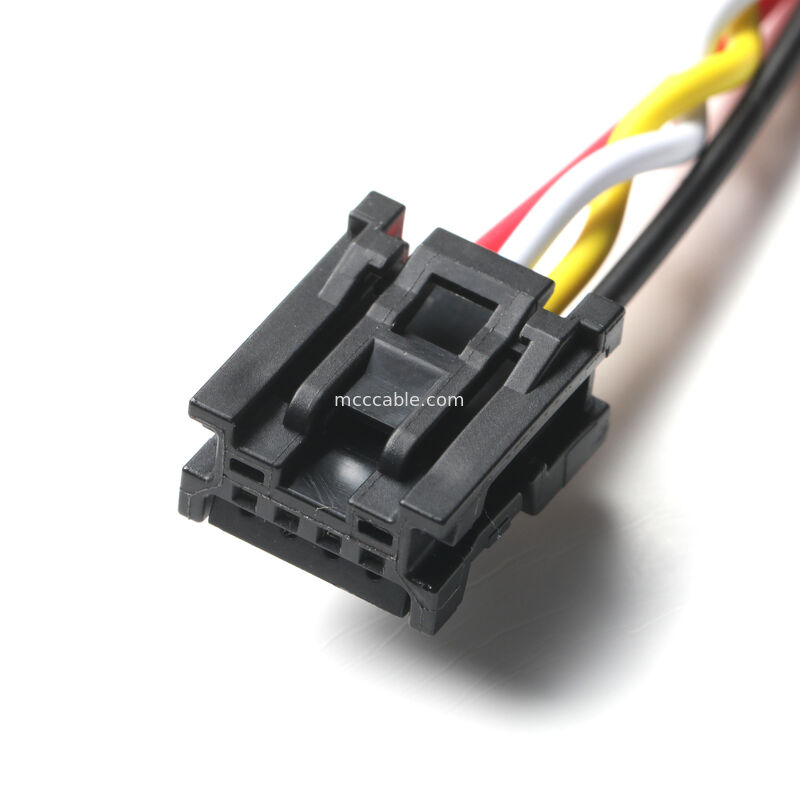

Molex 347910040 housing + 5600230750 terminal
Twisted pair signal structure (4 twists per inch)
Stable signal transmission with low noise
Power + differential data in one cable
Compact 4-pin connector design
Standard length 1000 mm (customizable)
OEM / ODM customization supported
RoHS compliant materials
Typical Applications OF Industrial Camera Cable Assembly:
Industrial vision systems
Machine vision cameras
Embedded imaging modules
Automation inspection equipment
Robotics & control systems
Technical Specifications OF Industrial Camera Cable Assembly:
| Item | Specification |
|---|---|
| Product Type | Industrial Camera Cable Assembly |
| Connector P1 (Camera Side) | JAE MX19004S51 |
| Crimp Terminal (P1) | JAE MX19S10K451 |
| Connector P2 (Receiver Side) | Molex 347910040 |
| Crimp Terminal (P2) | Molex 5600230750 |
| Number of Positions | 4 Pins |
| Cable Length | 1000 ±100 mm |
| Signal Structure | Twisted pair (4 twists/inch) |
| Signal Type | Power + Differential Data |
| Wire Colors | Red / White / Yellow / Black |
| Manufacturing Standard | IPC/WHMA-A-620 |
| Compliance | RoHS |
| Customization | Length, pinout, connector optional |
Customization Capability OF Industrial Camera Cable Assembly:
We support full customization, including:
Cable length adjustment
Alternative JAE / Molex / equivalent connectors
Pin assignment modification
Wire gauge & jacket material selection
Application-based design optimization
Engineering drawing confirmation is available before mass production.
Quality Control OF Industrial Camera Cable Assembly:
100% continuity & short test
Visual inspection of crimp & housing
Twisted pair consistency check
Batch traceability control
