Place of Origin:
China
Brand Name:
SINO-CONN
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:

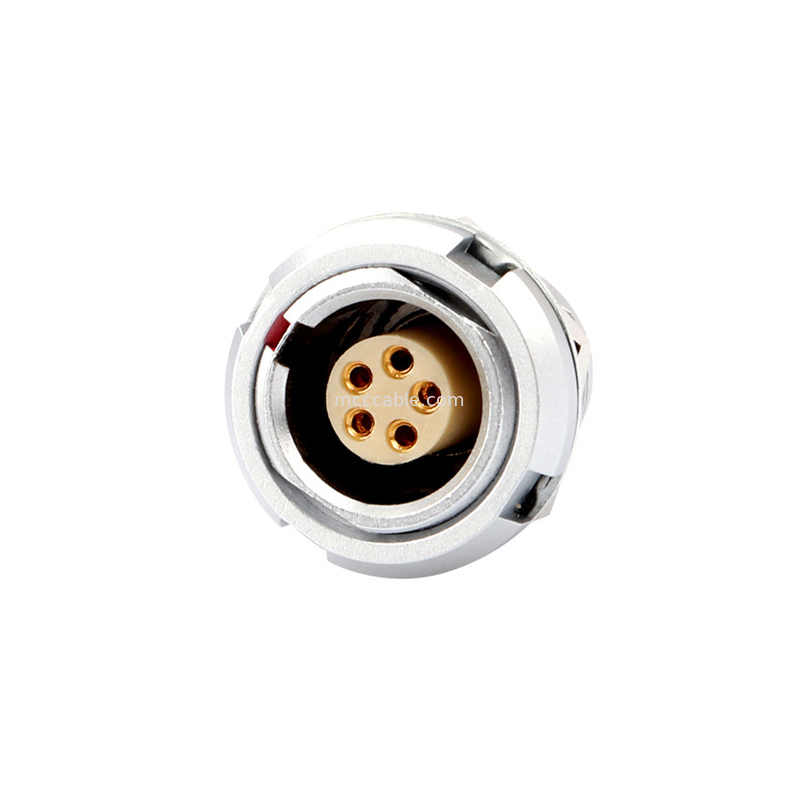

B Series Z2 5Pin female Circular Connectors

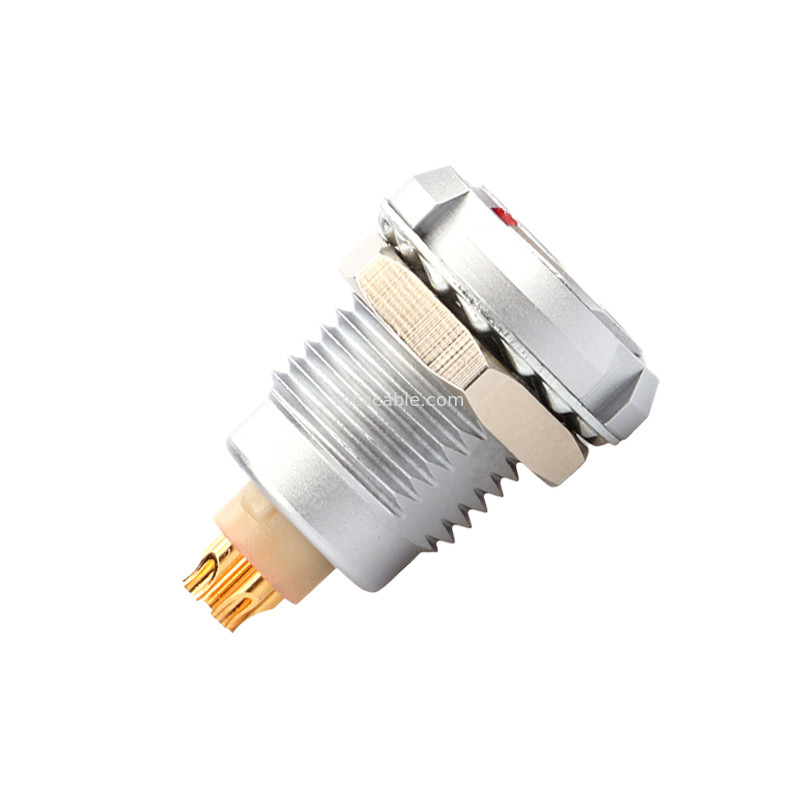

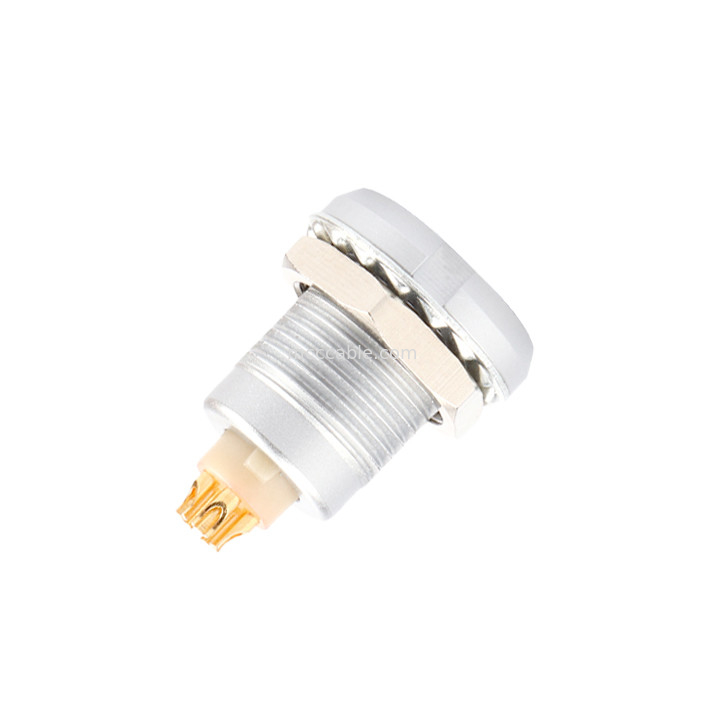

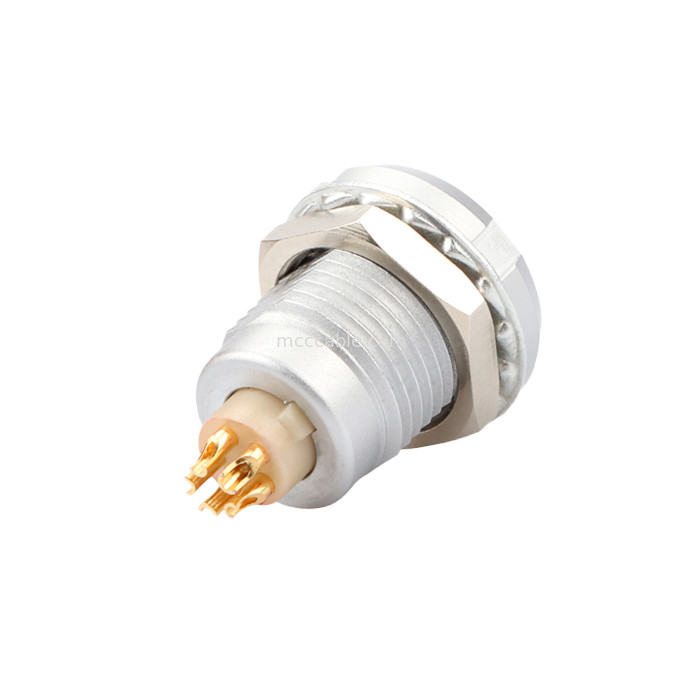

Industrial waterproof connector B series Z2 5PIN double nut welding
printed circuit board pin core (straight and angled)
| Parameter | Specification |
|---|---|
| Maximum Humidity | Up to 95% at 60°C / 140°F |
| Locking Type | Push-pull self-latching type |
| Protection Index (mated) | IP50 |
| Endurance | 5000 cycles |
| Shock Resistance | 100g, 6ms |
| Salt Spray Corrosion Test | 96 hours |
| Resistance to Vibration | 15g [10Hz ~ 2000Hz] |
| Shielding Efficiency | 75dB (10MHz), 40dB (1GHz) |
| Working Temperature | -55°C to +250°C |
Safe Push-Pull Self-Locking System
Multi-core types with 2-30 cores
Solder PCB pin terminals (available in straight and right-angle types)
High-density installation, saving space
Multiple keying options to prevent cross-mating between similar connectors
Positioning pin system
360° Shielding for Full EMC Protection
