|Product Name:||RF Coaxial Connector||Material:||Brass|
|Keywords:||OEM Coaxial Connector||Function:||Dustproof|
|Usage:||Telecommunication||Item:||Cable Joint Connector|
|Frequency Range:||DC - 50 GHz||Apply To:||End Launch PCB|
Telecommunication RF coaxial cable connectors,
Straight Through RF coaxial cable connectors,
OEM 50 ohm coax connectors

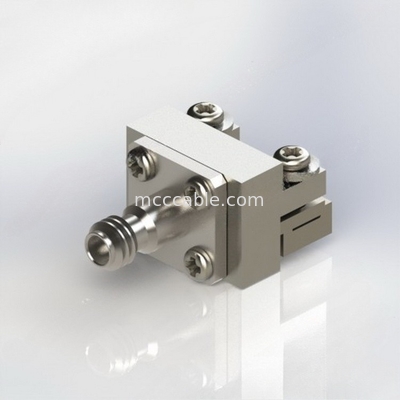

2.4-KHD RF coaxial cable connectors DC-50G flange straight-through
PCB with .007" Pin (Solderless) connector
|VSWR:||1.30 Max @ 50 GHz|
|Frequency Range:||DC - 50 GHz|
|Durability:||≥ 500 Cycles|
|Apply to:||End Launch PCB|
● Impedance: 50 Ω ● Insulation Resistance: 5000 MΩ Min
● Frequency Range: DC - 50 GHz ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level)
● VSWR: 1.30 Max @ 50 GHz ● Contact Resistance: ≤ 3 mΩ (Center Contact)
● Insertion Loss: ≤ 0.42 dB @ 50 GHz ≤ 2 mΩ (Outer Contact)
● Mateable with 1.85 mm, V Series ● Center Contact Retention Force: 6 lbs Min
● Durability: ≥ 500 Cycles ● Coupling Torque: 7 - 8 lb-in Recommended
● Temperature Range: -55 ℃ to +85 ℃
Material & Finish
● Body: Stainless Steel, Passivated ● Center Contact: Beryllium Copper, 30 μ" Gold
● Base: Brass, 100 μ" Nickel ● Dielectric: Engineering Plastic, Natural
● High Volume Production Test Stations ● PCB Connections
● Research & Development Labs
● RoHS Compliant ● Good Stability Design ● High Performance
● Solderless & Removable Design (Optional) ● Stainless Steel for Long Mating-cycle Life
Typical Performance Data (@ 25℃)
DUT: 2 PCS 2.4 mm Female, Straight Connectors (Back to Back)
We offer our customers a small number of highly specialized cable and harness assemblies,
and our engineering department, production and quality control ensure the highest quality
of these unique components
Please feel free to contact us for custom OEM/ODM.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the RF COAXIAL CONN, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
