I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch

Customer Reviews
Quick response with high quality, very professional in this area.

—— Samuel Kanu

Really happy working with them, Very professional.

—— Abas Pourhadi

I'm Online Chat Now

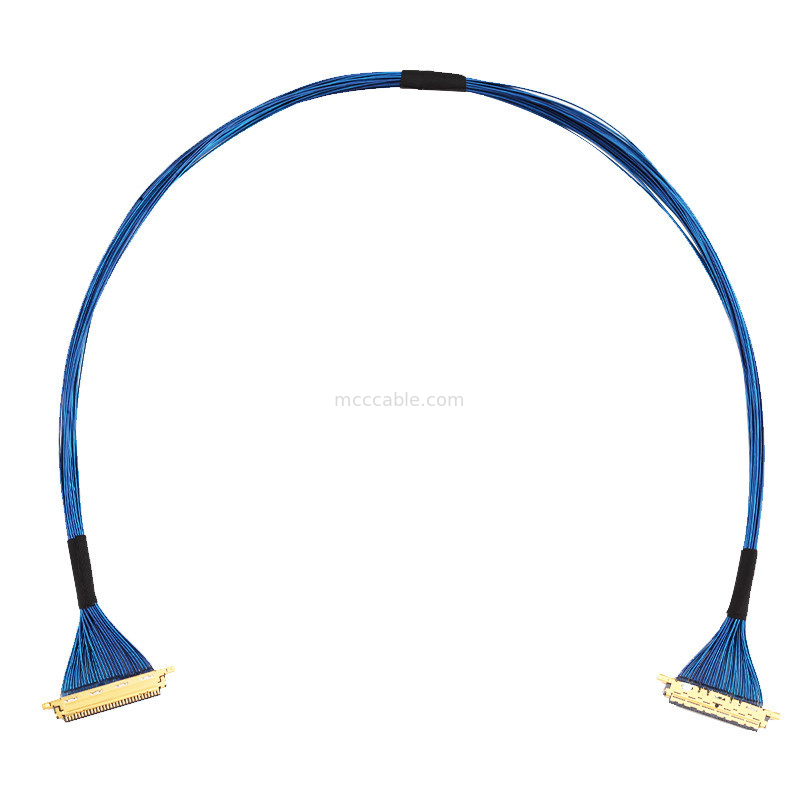

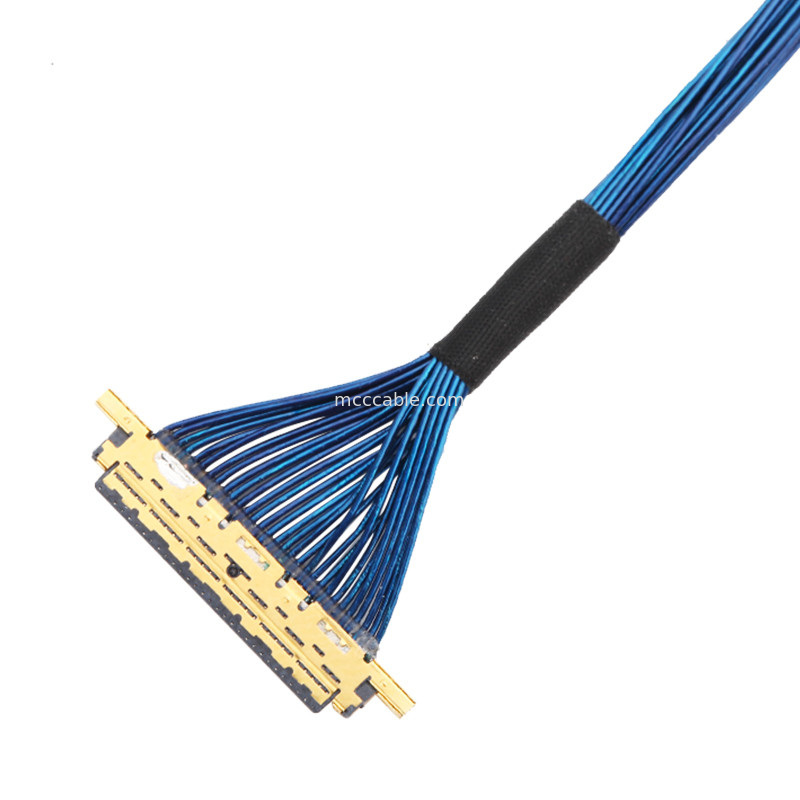

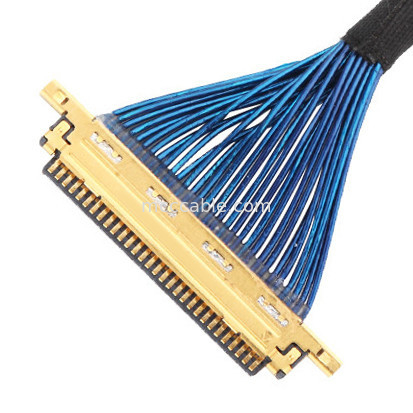

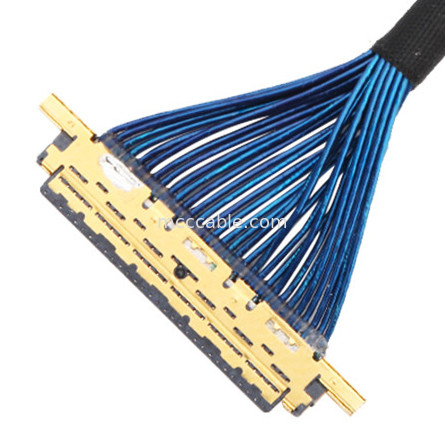

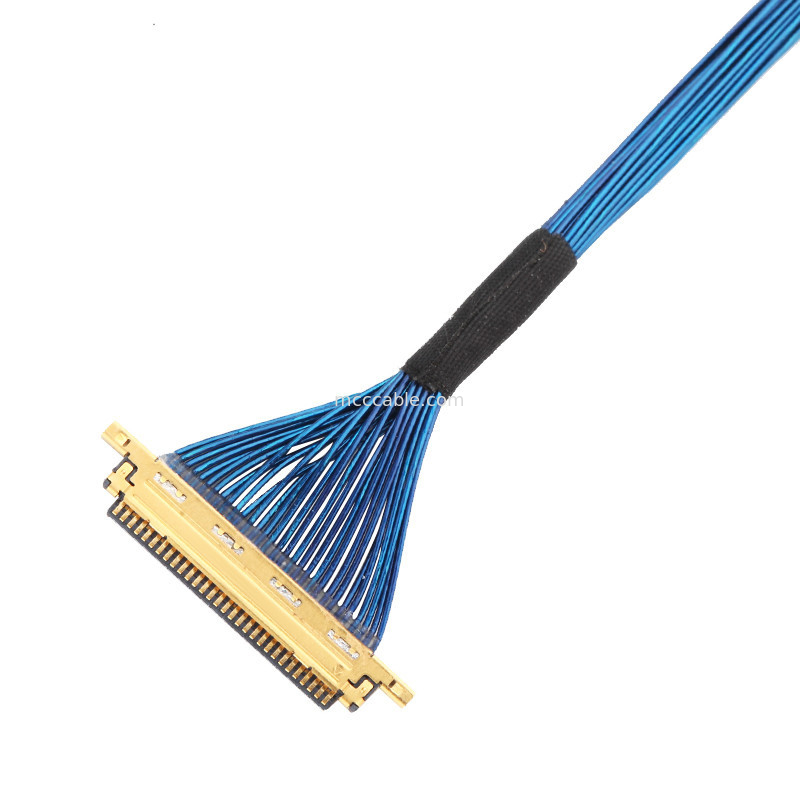

I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch

I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch
I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch
I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch

Large Image :  I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch

Product Details:
Place of Origin: China
Brand Name: SINO-TECH
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: 20453-030T
Payment & Shipping Terms:
Minimum Order Quantity: quantity can be negotiable
Price: Most favorable
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week

I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch

Description
Product Name: I-Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly Connector A: I-pex 20453-030T
Connector B: 20453-030T Item: 30pin/30pin
Service: Design Express: DHL FEDEX UPS TNT
Contact Pitch: 0.500 Mm Pin Count: 20 30 40 50
Type: I-PEX MOQ: 100
High Light:

UL Lvds Edp Cable Assembly

,

30P Lvds Edp Cable Assembly

,

42AWG LVDS Micro Coaxial Cable

0.5mm Pitch I-Pex Micro Coaxial 20453-030T To 20453-030T

Lvds Edp Cable Assembly



Micro-Coaxial Cable (AWG) #36 #38 #40 #42 #44 #46
Contact pitch 0.500 mm
Discrete Cable (AWG) #32 #34 #36 #38 #39 #40 #42 #44 #46
Applicable Standards (Reference Only) Thunderbolt™ 3 (20 Gbps/lane)
USB® 3.1 Gen 2 (10 Gbps)
eDP HBR 3 (8.1 Gbps)
HDMI® 2.0 (6 Gbps)
MiPi Gear 3 (5.8 Gbps)
eDP HBR 2 (5.4 Gbps)
USB® 3.1 Gen 1 (5 Gbps)
V-By-One HS 1.4 (4 Gbps)
eDP (2.7 Gbps)
Cable assembly and harness assembly types LVDS cable, eDP cable, MCX cable, SGC cable
Types of miniature coaxial cable assemblies welding, crimping, IDC, forming


I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 0

The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial

cable assembly, LVDS eDP transmission,HRS cable, I-PEX cable, Hirose Micro Shaft cable, KEL micro

coaxial cable, ACES micro coaxial cable, etc.
ACES cable ,LVDS cable assembly,LCD cable,eDP cable,IPEX LVDS cable,LCD Ribbon cable



I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 1

Part Number Description Pin count Part Number
PLUG FOR CABLE ASSEMBLY 20 20453-220T-03
30 20453-230T-03
40 20453-240T-03
50 20453-250T-03S
Plug parts PLUG HOUSING 20 20454-220T
30 20454-230T
40 20454-240T
50 20454-250T-01
PLUG SHELL 20 2574-0202
30 2574-0302
40 2574-0402
50 2574-0502
PLUG PULL BAR 20 2576-120-00
30 2576-130-00
40 2576-140-00
50 2576-150-00
RECEPTACLE 20 20455-A20E-76
30 20455-030E-76
40 20455-040E-76
50 20455-050E-76







I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 2

Tablet PC Application of Mini Coaxial Cable Assembly
Conductor size: 36AWG, 40AWG and 42AWG
Flexible and twistable fine pitch coaxial cable assembly
Fine pitch connector termination (0.4mm, 30-pin)
Ultra-thin wire harness for mobile equipment
Transition application: 480Mbps
Enhanced EMI/EMC solution fine pitch coaxial cable assembly
Notebook computer application of thin coaxial cable assembly
Conductor size: 36AWG, 40AWG and 42AWG
Flexible and twistable thin coaxial cable
Fine pitch connector termination (0.4mm, 30-pin)
Cable bundle application with slim hinge: eDP, bandwidth up to 7GHz
Our factory uses the following internal equipment to ensure the highest quality mini coaxial cable assemblies.



I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 3

Company Profile


1.SINO-TECH has more than 16 years of experience in designing and customizing cable assemblies and

waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial

cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable

assemblies.

I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 4

I Pex Micro Coaxial 20453-030T To 20453-030T Lvds Edp Cable Assembly 0.5mm Pitch 5

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.



How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
