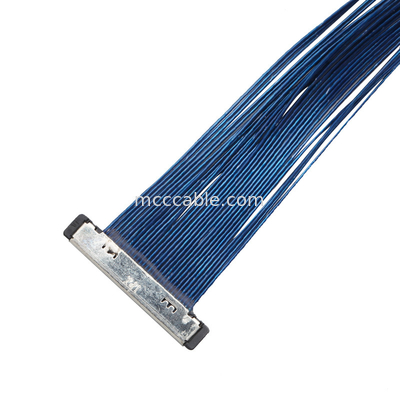

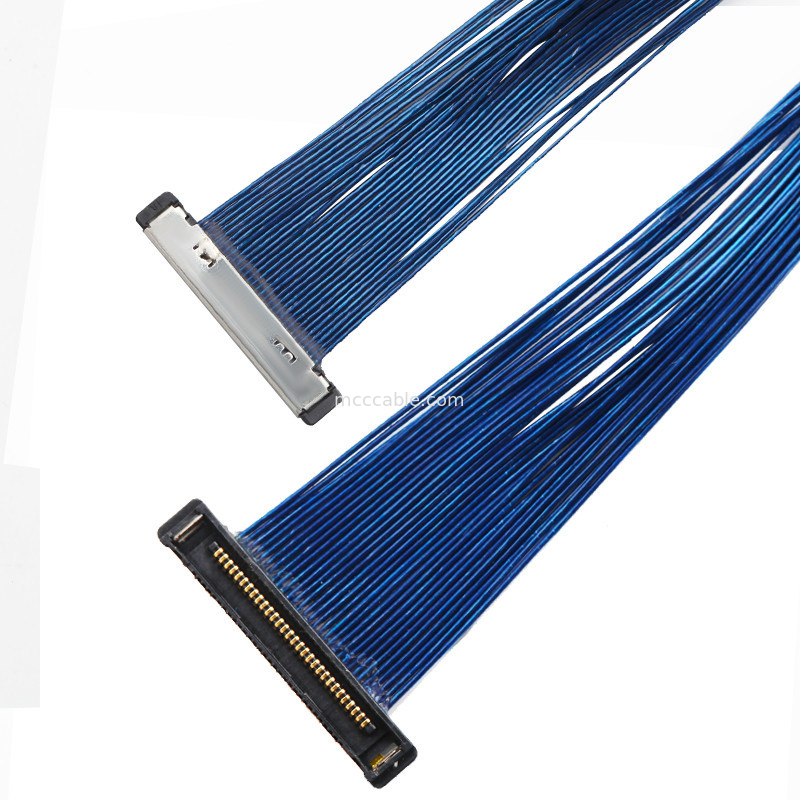

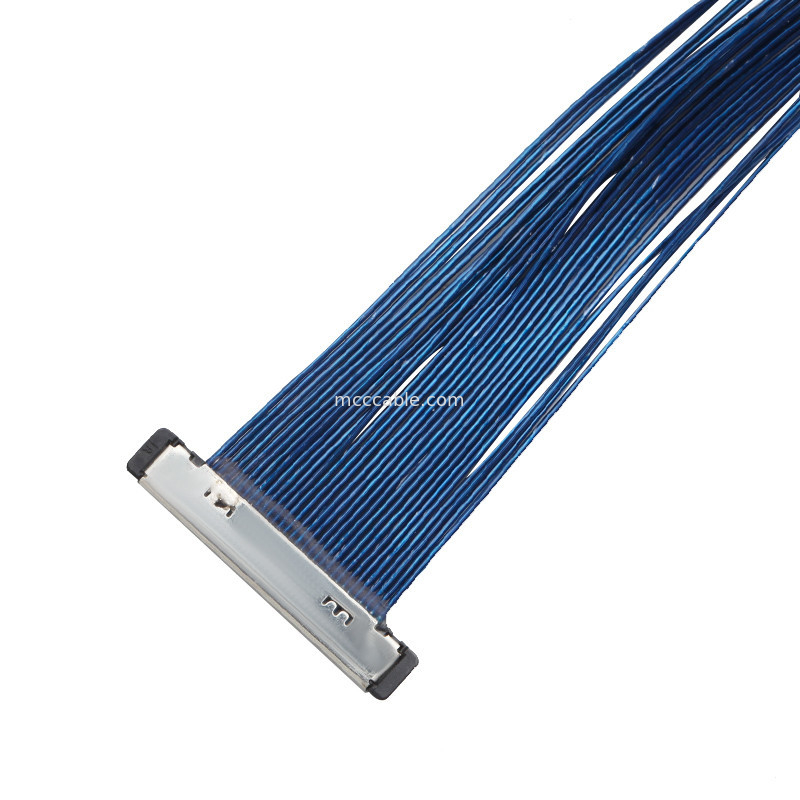

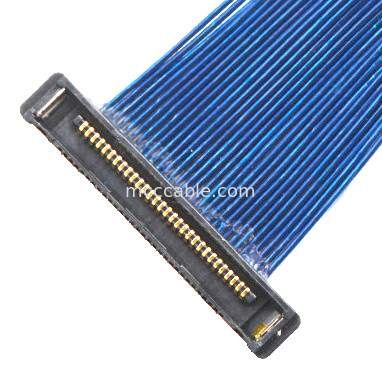

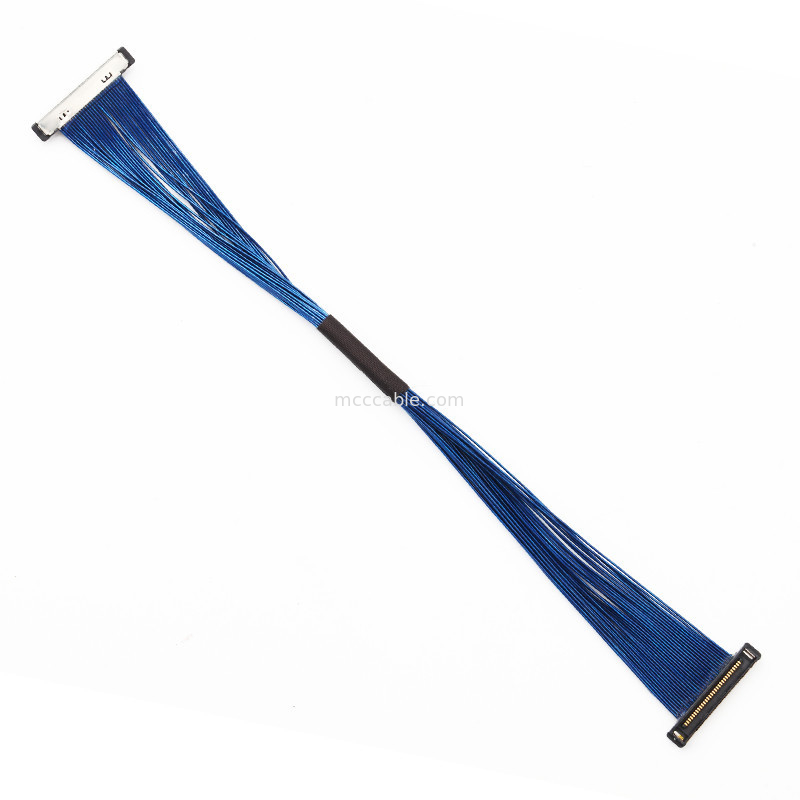

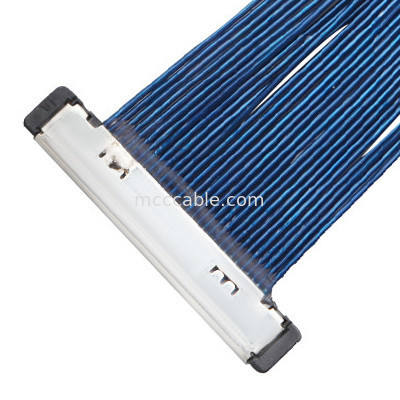

30 Pin EDP Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector

30 Pin EDP Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector

Micro Coaxial Cable Assembly

EDP Micro Coaxial Cable Assembly

30 Pin Micro Coax Cable

Place of Origin:

China

Brand Name:

Customization

Certification:

UL ,ISO13485 , ISO9001.2005 , ISO14001

Model Number:

20380-R30T-06

Contact Us
Request A Quote
Product Details
Product Name:
30pin EDP Cable Assemblies 20380-R30T-06 Micro Coaxial Cable Assembly
Contact Pitch:
0.4 Mm Pitch
Connector:
20380-R30T-06
Item:
30PIN
Service:
Design
Length:
Customize
Micro-Coaxial Wire (AWG):
#38 #40 #42 #44 #46
Express:
DHL FEDEX UPS TNT
Highlight:

Micro Coaxial Cable Assembly

,

EDP Micro Coaxial Cable Assembly

,

30 Pin Micro Coax Cable

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Contact our sales
Packaging Details
PE inner, carton outer
Delivery Time
2-10 days for samples,3-4 weeks for massive
Payment Terms
T/T, PayPal
Supply Ability
15,000pcs/week
Product Description

30pin eDP cable assemblies 20380-R30T-06 micro coaxial cable assembly



Pin count 10 14 20 30 32 35 40 50
Current rating

0.24A AC/DC [AWG #42] per contact/up to 50 contacts
0.25A AC/DC [AWG #40] per contact/up to 50 contacts
0.30A AC/DC [AWG #40] per contact/up to 32 contacts
0.35A AC/DC [AWG #36] Pper contact/up to 50 contacts
0.40A AC/DC [AWG #36] per contact/up to 37 contacts
0.35A AC/DC [AWG #34] per contact/up to 50 contacts
1.00A AC/DC [AWG #34] per contact/up to 2 contacts

Applicable Standards (Reference Only) eDP HBR 3 (8.1 Gbps)
HDMI® 2.0 (6 Gbps)
MiPi Gear 3 (5.8 Gbps)
eDP HBR 2 (5.4 Gbps)
USB® 3.1 Gen 1 (5 Gbps)
V-By-One HS 1.4 (4 Gbps)
eDP (2.7 Gbps)


30 Pin EDP  Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector 0



The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial

cable assembly, LVDS eDP transmission,HRS cable,  cable, Hirose Micro Shaft cable, KEL micro

coaxial cable, ACES micro coaxial cable, etc.
LVDS cable,LCD cable,eDP cable, LVDS cable,LCD Ribbon cable
20380 Common used connector part number:
20380-R10T-06 20380-R14T-06 20380-R20T-06 20380-R30T-06
20380-R32T-06 20380-R35T-06 20380-R40T-16 20380-R50T-16



30 Pin EDP  Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector 1

Application


VR HEADSET/Dual Display (LCoS, RPDs)
AR/Liquid Crystal Display
Laptop/Camera
Laptop/LCD Connection
DRONE MAIN BODY/Gimbal Motor Connection-Camera
Automotive/Cluster Displa
y

30 Pin EDP  Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector 230 Pin EDP  Micro Coaxial Cable Assembly 20380-R30T-06 lvds display connector 3

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.



How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
