JST ZH 4 Pin Wire Harness

Customer Reviews
Quick response with high quality, very professional in this area.

—— Samuel Kanu

Really happy working with them, Very professional.

—— Abas Pourhadi

I'm Online Chat Now

JST ZH 4 Pin Wire Harness

JST ZH 4 Pin Wire Harness
JST ZH 4 Pin Wire Harness JST ZH 4 Pin Wire Harness JST ZH 4 Pin Wire Harness JST ZH 4 Pin Wire Harness

Large Image :  JST ZH 4 Pin Wire Harness

Product Details:
Place of Origin: China
Brand Name: SINO-TECH
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: ZH
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD 4.6-5.2 PCS
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week

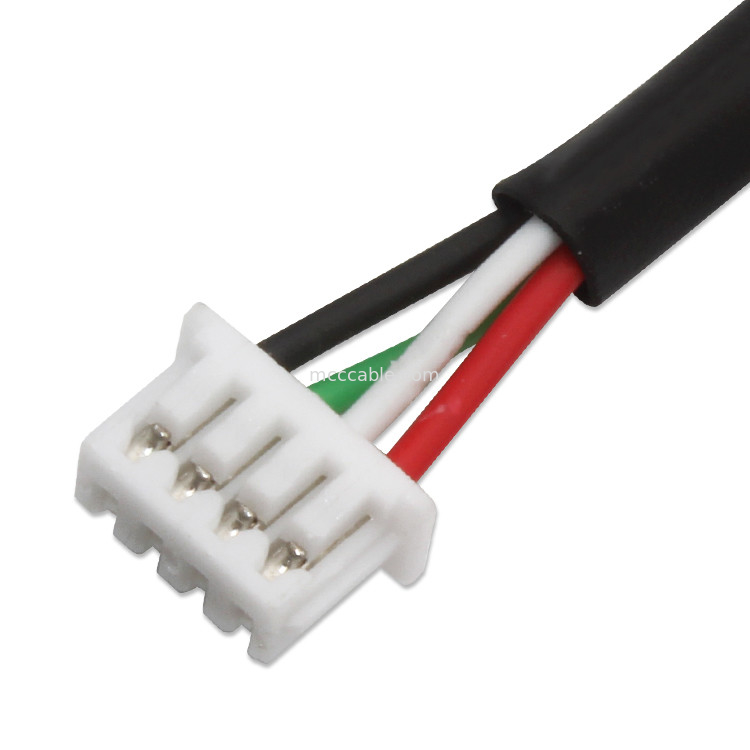

JST ZH 4 Pin Wire Harness

Product Name: JST ZH 1.5MM PITCH 4PIN Wire Harness Assembly Connector: Zh
Item: 4pin Pitch: 1.5mm
Service: Design Length: 500mm
High Light:

JST ZH 4 Pin Wire Harness


1.5mm 4 Pin Wire Harness


jst zh cable

JST ZH 1.5MM PITCH 4PIN Wire Harness assembly


Product Profile Specification
Series ZH connector Pitch 1.5 mm
Category Crimp Style Connectors (Wire-to-Board type) Current rating 1.0A (AWG#26)
Type Disconnectable type Voltage rating 50V
Crimp style, Compact type PC board Top entry, Side entry
    mounting direction
• Contact resistance: Initial value/ 20 mΩ max.After environmental tests/ 30 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: AWG #32 to #26
• Applicable PC board thickness: 0.6 to 1.2 mm, 1.6 mm

JST ZH 4 Pin Wire Harness 0


JST ZH 4 Pin Wire Harness 1

JST ZH 4 Pin Wire Harness 2

sino-tech produces various cable assemblies in the field of drones, AR/VR, AR, VR and other micro coaxi

al cables, radar/navigation, cameras, security monitors, facial recognition payment, and has established c

ooperative relationships with customers. We have a strong and experienced technical team that can provi

de you with efficient solutions.

JST ZH 4 Pin Wire Harness 3

JST ZH 4 Pin Wire Harness 4

JST ZH 4 Pin Wire Harness 5JST ZH 4 Pin Wire Harness 6

JST ZH 4 Pin Wire Harness 7

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
