SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies

SHR 07V S B JST Wire Harness

7PIN Wire To Board Cable Assemblies

shr 07v sb wire

Place of Origin:

China

Brand Name:

SINO-TECH

Certification:

UL ,ISO13485 , ISO9001.2005 , ISO14001

Model Number:

JST SHR-07V-S-B

Contact Us
Request A Quote
Product Details
Product Name:
JST 1.0mm SHR-07V-S-B Wire To Board Type Connector Cable Leads Plug Male Female Wire Harness
Connector:
SHR-07V-S-B
Item:
7PIN
Pitch:
1.0mm
Service:
Design
Length:
Customize
Express:
DHL FEDEX UPS TNT
Highlight:

SHR 07V S B JST Wire Harness

,

7PIN Wire To Board Cable Assemblies

,

shr 07v sb wire

Payment & Shipping Terms
Minimum Order Quantity
quantity can be negotiable(Only Company, instead of personal use)
Price
Most favorable
Packaging Details
PE inner, carton outer
Delivery Time
10-28 days upon receipt of payment
Payment Terms
T/T, Western Union
Supply Ability
500,000pcs/week
Product Description

JST 1.0mm SHR-07V-S-B Wire To Board Type Connector Cable Leads Plug Male Female Wire Harness





• Current rating: 1.0 A AC, DC (AWG #28)
• Voltage rating: 50 V AC, DC
• Temperature range: -25°C to +85°C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 20 mΩ max.
After environmental tests/ 40 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: Conductor size/ AWG #32 to #28
Insulation O.D./ 0.4 to 0.8 mm

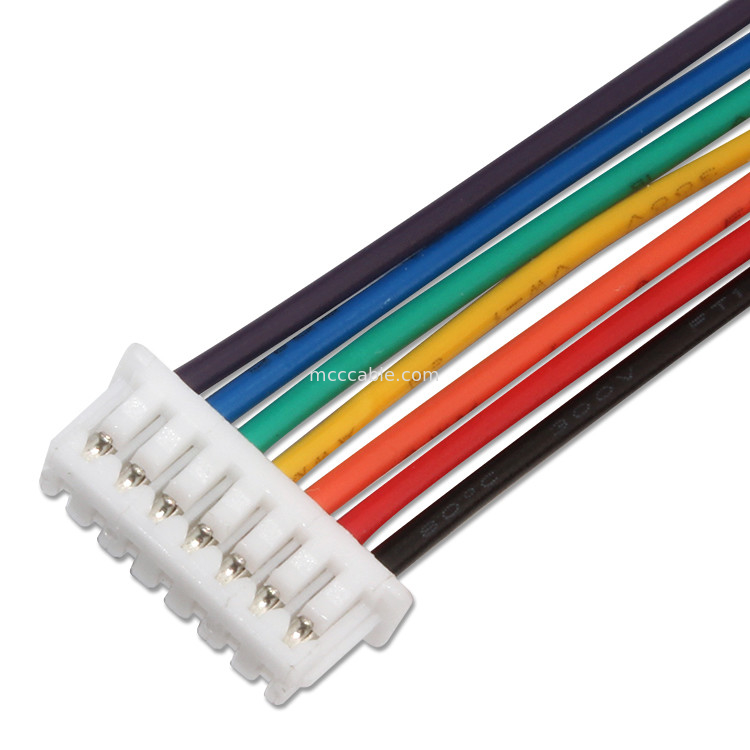

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 0

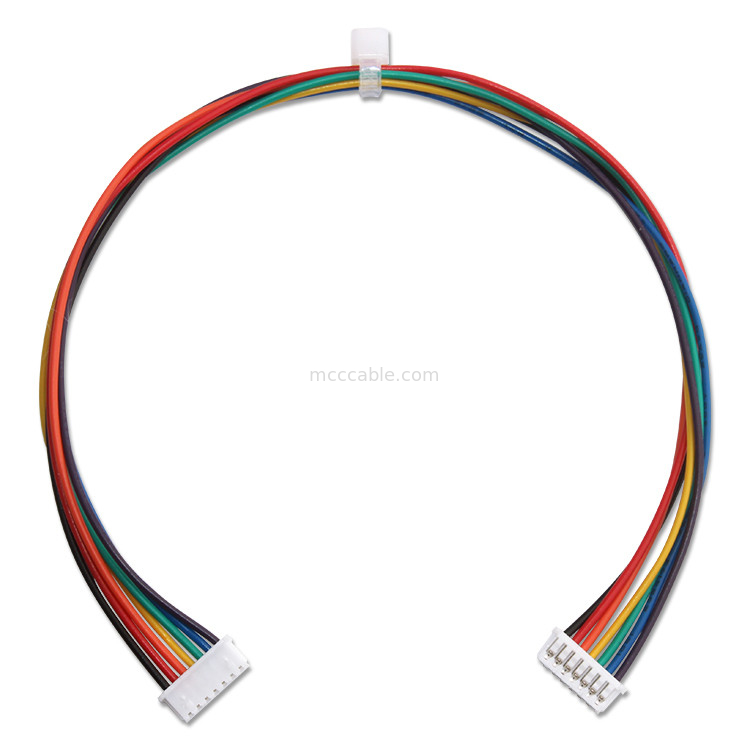

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 1

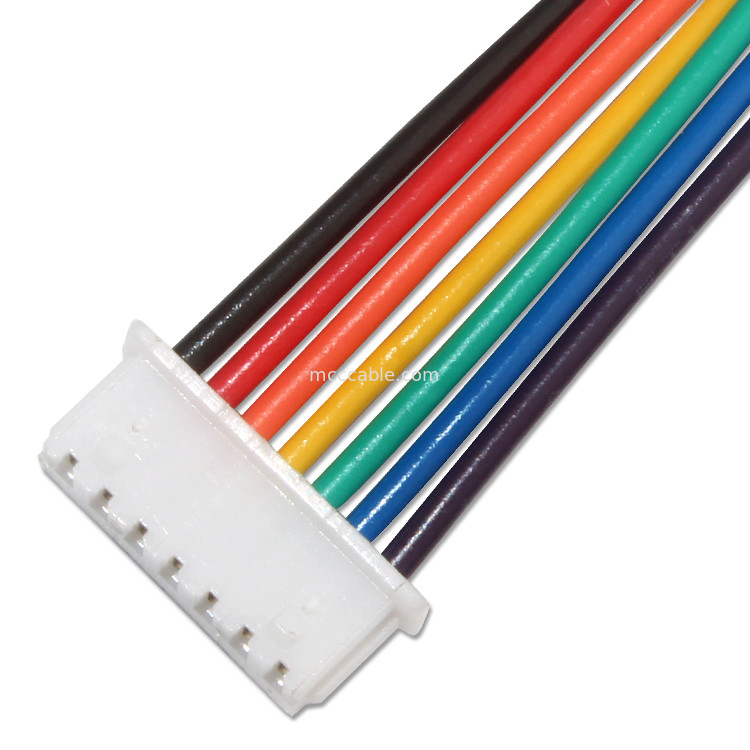

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 2

sino-tech produces various cable assemblies in the field of drones, AR/VR, AR, VR and other micro coaxi

al cables, radar/navigation, cameras, security monitors, facial recognition payment, and has established c

ooperative relationships with customers. We have a strong and experienced technical team that can provi

de you with efficient solutions.

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 3

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 4

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 5SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 6

SHR 07V S B JST Wire Harness , 7PIN Wire To Board Cable Assemblies 7

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
