Product Details:
|
| Mating Direction: | Horizontal | Contact Pitch: | 0.40 Mm |
|---|---|---|---|
| Height: | 1.10 Max | Depth: | 6.20 Mm |
| Width Formula: | 6.95+(0.4*?p) Mm | Pin Count: | 20 30 40 50 |
| Length: | Customize | MOQ: | Quantity Can Be Negotiable |
| Certification: | ISO9001 | Express: | UPS DHL TNT FEDEX |
| High Light: | LVDS EDP Cable Harness Assembly,LED TV LVDS EDP Cable,0.4mm Pitch Cable Harness Assembly |
||

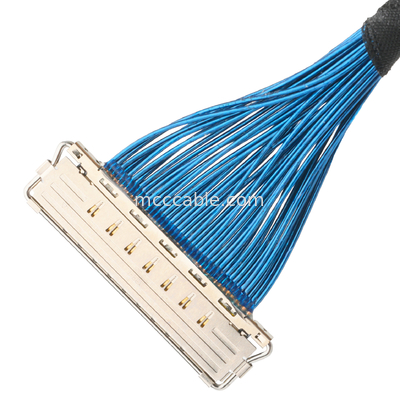

I-PEX LVDS EDP Cable Harness Assembly 0.4mm Pitch For LED TV
CABLINE-CA II 20679 LVDS EDP CABLE Fully-shielded with mechanical lock 0.4mm pitch 20 Gbps/lane Horizontal
CABLINE-CA II 20679 Parameter:
| Mating Direction | Horizontal |
| Contact pitch | 0.40 mm |
| Height | 1.10 Max |
| Depth | 6.20 mm |
| Width Formula | 6.95+(0.4*?p) mm |
| Pin count | 20 30 40 50 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 18 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Mechanical lock | Yes |
| Full shielding (ZenShield®) | Yes |
CABLINE-CA II 20679 Advantage:
LVDS and eDP are standard interfaces used to connect display panels and motherboards in electronic devices.
A cable with a shielded mechanical lock means that it has shielding to reduce electromagnetic interference, thereby
improving signal quality and stability. The mechanical lock refers to the cable connector having a special locking function
to prevent accidental disconnection or loosening.
CABLINE-CA II 20679 Series:
| Part Number Description | Pin count | Part Number | |
| PLUG FOR CABLE ASSEMBLY | 20 | 20679-020T-01 | |
| 30 | 20679-030T-01 | ||
| 40 | 20679-040T-01 | ||
| 50 | 20679-050T-01 | ||
| Plug parts | PLUG HOUSING | 20 | 20680-020T-01 |
| 30 | 20680-030T-01 | ||
| 40 | 20680-040T-01 | ||
| 50 | 20680-050T-01 | ||
| PLUG SHELL | 20 | 3204-0201 | |
| 30 | 3204-0301 | ||
| 40 | 3204-0401 | ||
| 50 | 3204-0501 | ||
| PLUG LOCK BAR | 20 | 20681-020T-01 | |
| 30 | 20681-030T-01 | ||
| 40 | 20681-040T-01 | ||
| 50 | 20681-050T-01 | ||
| RECEPTACLE | 20 | 20682-020E-02 | |
| 30 | 20682-030E-02 | ||
| 40 | 20682-040E-02 | ||
| 50 | 20682-050E-02 | ||
Micro-Coaxial Cable Assembly Capabilities:
1.Structure of Coaxial Cables 2.Micro-Coaxial Cables
3.High Flexibility 4.Excellent Impedance Controllability
5.Excellent Shielding Function 6.Micro-coaxial Cable Harness Assembly Process
7.High-Performance EMC Shielding 8.Product Assembly Process that takes Advantage of High Flexibility
Our team:
·16years coaxial cable experience
·15000 square meters factory area
· Excellent after-sale service
· Focus on creating high-quality craftsmanship
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
