Product Details:
|
| Mating Direction: | Vertical | Contact Pitch: | 0.50 Mm |
|---|---|---|---|
| Height: | 2.40 Max (2.20 Nom.) , | Depth: | 6.10 Mm |
| Width Formula: | 5.8+(0.5*50P) Mm | Pin Count: | 30 40 50 |
| High Light: | FPL II lvds micro coax cable,50pin Lvds Micro Coax Cable,2496-050 Micro Coax Cable |
||

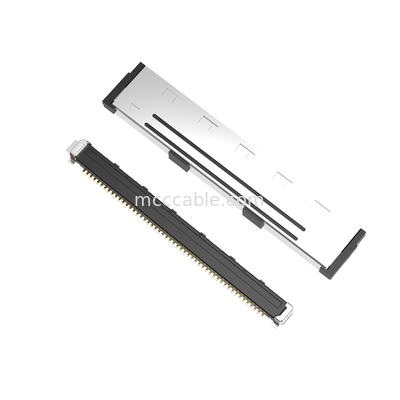

FPL II 50pin lvds micro coax cable 20437-050T-01 20438-050T-01 2496-050 20439-050E-01
| Contact Pitch (mm): | 0.5 |
| Height: | 2.40 Max (2.20 Nom.) , |
| Available Pin Count: | 30 40 50 |
| Micro-Coaxial Cable (AWG): | #36 #38 #40 #42 #44 #46 |
| Mating Direction: | Vertical |
Maximum power delivery (AWG #32)
Simultaneous soldering of different size cables for micro-coaxial and discrete wire
Several ground points durable to noise
1. 20437-050T-01 MICRO COAX CABLE DETAIL
2.FPL II RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number | |
| PLUG FOR CABLE ASSEMBLY | 30 | 20437-030T-01 | |
| 40 | 20437-040T-01 | ||
| 50 | 20437-050T-01 | ||
| PLUG HOUSING | 30 | 20438-030T-01 | |
| 40 | 20438-040T-01 | ||
| 50 | 20438-050T-01 | ||
| PLUG SHELL | 30 | 2496-030 | |
| 40 | 2496-040 | ||
| 50 | 2496-050 | ||
| RECEPTACLE | 30 | 20439-030E-01 | |
| 40 | 20439-040E-01 | ||
| 50 | 20439-050E-01 | ||
3.SINO-MEDIA introduction
SINO-MEDIA is a professional manufacturer of coaxial coax cables. LVDS cable, SGC cable, MCC cable, micro coaxial cable assembly, LVDS eDP transmission,HRS cable, I-PEX cable, Hirose Micro Shaft cable, KEL micro coaxial cable, ACES micro coaxial cable, etc.
4.Relevant information
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept 20437-050T-01 free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
