|Mating Direction:||Horizontal||Contact Pitch:||0.40 Mm|
|Height:||1.20 Max||Depth:||6.70 Mm|
|Width Formula:||6.95+(0.4*?p) Mm||Micro-Coaxial Cable (AWG):||#38 #40 #42 #44 #46|
|Discrete Cable (AWG):||#34 #36 #38 #39 #40 #42 #44 #46||Current Rating:||0.1A AC/DC [AWG #44] Per Contact/up To 60 Contacts 0.24A AC/DC [AWG #42] Per Contact/up To 60 Contacts 0.3A AC/DC [AWG #40] Per Contact/up To 60 Contacts 0.5A AC/DC [AWG #38] Per Contact/up To 18 Contacts 0.8A AC/DC [AWG #36] Per Contact/up To 6 Contacts 1|
|Applicable Standards (Reference Only):||USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) EDP HBR 3 (8.1 Gbps) EDP HBR 2 (5.4 Gbps) EDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi Standards||Full Shielding (ZenShield®):||Yes|

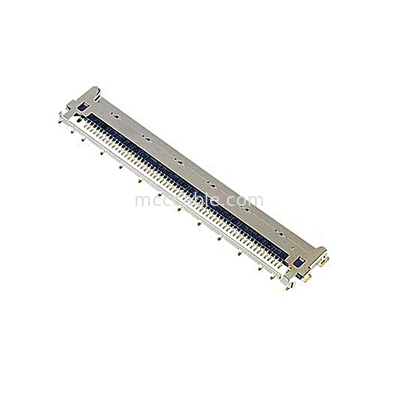

CABLINE-CA II PLUS micro coax connector,
60 Pin micro coax connector,
Horizontal Mating micro coaxial connector

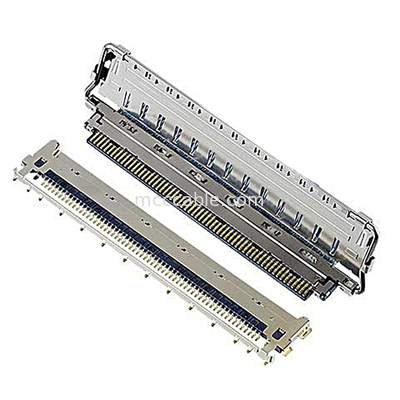

CABLINE-CA II PLUS 20680 20788 20789 20790 receptacle Plug housing shell lock bar for cable assembly
I-PEX CABLINE CA-II Plus (20788-060T-01) is a 0.4 mm pitch, which one has been selected by Mellanox Technologies as a provider for low-profile cable assembly connectors on part of their high-speed network ConnectX-6 adapters and BlueField controllers portfolio.
Besides, I-PEX 20788-060T-01 is available in several sizes. The Plus version has expanded ground contacts to allow for easier routing. The system offers full EMI shielding around the terminations and board connector.
SINO-TECH is a cable component manufacturer with more than 11 years of history. It is widely used in
industrial control large or small equipment. Video transmission cable with LCD screen and motherboard cable ,
Most of the current products are used in liquid crystal electronic products, such as our current Video transmission
cable with LCD screen and motherboard cable lvds cable, lcd cable. edp cable, usually used in computers,
televisions, mobile phones, cameras, treadmills, etc.
