|Product Name:||Jae Hd1p040-Csh2 Lcd Lvds Cable HRS DF80D-40P-0.5SD Lvds Edp Cable Display||Contact Pitch:||0.5mm|
|Connector A:||Hd1p040-Csh2||Connector B:||DF80D-40P-0.5SD|
|Length:||50MM||Express:||DHL FEDEX UPS TNT|
HD1P040-CSH2 Micro Coaxial Cable,
40 Pin JAE Micro Coaxial Cable,
DF80D-40P-0.5SD LVDS EDP Cable

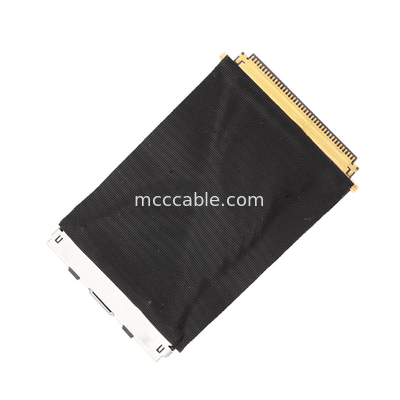

Jae Hd1p040-Csh2 Lcd Lvds Cable HRS DF80D-40P-0.5SD Lvds Edp Cable Display
Hirose lvds cable Parameters Table
|Opening pitch||0.5 mm|
|PIN number||30, 40, 50|
|Plating thickness||0.05, 1.0 μm|
|(Max.) Operating temperature range||85℃|
|(Min.) Operating temperature range||-35℃|
|Applicable wire size (AWG)||#36/#42|
JAE lvds cable Parameters Table
|Number of Positions||40 pos|
|Rated Voltage (V)||100 V|
|onnector Type||Cable side plug|
|Applicable Wire Size (AWG)||#36 to #32 AWG (discrete wire), #44 to #36 AWG (fine-wire coaxial)|
SINO-TECH is a professional manufacturer of miniature coaxial cables. The micro coaxial cables we can
produce include #36#38#40#42#44#46 AWG, LVDS cable, SGC cable, MCC cable, micro coaxial cable
assembly, LVDS eDP transmission,HRS cable, JAE cable, Hirose Micro Shaft cable, KEL micro coaxial
cable, ACES micro coaxial cable, etc.
Hd1p040 To DF80 40pin micro coaxial cable
VR HEADSET/Dual Display (LCoS, RPDs)
AR/Liquid Crystal Display
DRONE MAIN BODY/Gimbal Motor Connection-Camera
1. SINO-TECH has more than 10 years of experience in designing and customizing cable assemblies and
waterproof cables, depending on your needs.
2. The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial
cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable
Q1. Is it a factory?
A: Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A: We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
