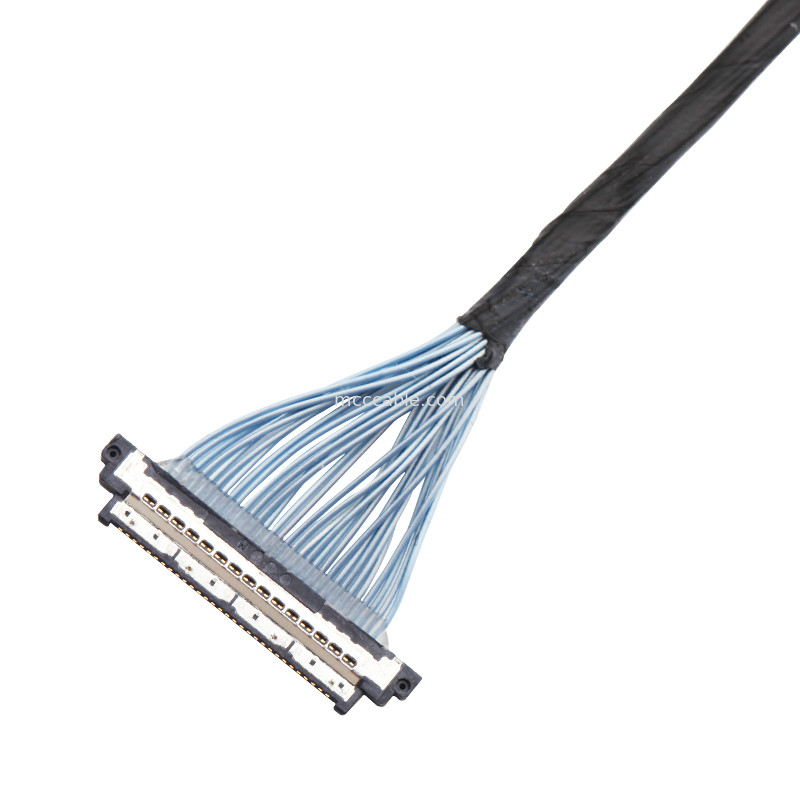

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly
I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly

Large Image :  I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly

Product Details:
Place of Origin: China
Brand Name: SINO-TECH
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: 20453-230T-03/ SSL20-30S
Payment & Shipping Terms:
Minimum Order Quantity: quantity can be negotiable(Only Company, instead of personal use)
Price: Most favorable
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly

Description
Product Name: I-pex 20453-230T-03 To Kel SSL20-30S 30 Pin Micro Coaxial Cable Connector A: I-pex 20453-230T-03
Connector B: Kel SSL20-30S Micro-Coaxial Wire (AWG): #36 #38 #40 #42 #44 #46
Contact Pitch: 0.5mm Pitch Item: Micro Coaxial Cable
Service: Design Length: 150MM
Express: DHL FEDEX UPS TNT
High Light:

Kel SSL20-30S Micro Coaxial Cable

,

Kel SSL20-30S Micro Coaxial Cable

,

30P Lvds Edp Cable Assembly

i-pex 20453-230T-03 to kel SSL20-30S 30 pin micro coaxial cable lvds edp cable assembly

Material / Surface treatment
Insulator materials LCP (with glass-filled) UL94V-0 material, black
contact material copper alloy
contact plating Gold over Nickel
Shell material copper alloy
Shell finish Nickel plated base, tin-copper-plated finish
IDC cover material [SSL20] LCP (with glass-filled) UL94V-0 material, off-white



Performance
current rating per contact (when using ROUTA)
contact resistance 100 mΩ or less
dielectric withstand voltage AC200V, 1 minute
insulation resistance DC250V, 100MΩ or more
operating temperature -40℃~+85℃
conforming cable AWG # 32/36 coaxial cable
* Please contact us for the cable specifications to be used.

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 0

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 1

The connectors of this series have a pitch of 0.4 mm and a low mounting height of 1.0 mm.

When compared with our current SSL Series of connectors for 0.5-mm pitch, ultra-fine coaxial cables, the

USL Series achieves a major reduction of approximately 50% in terms of coupled volume, thus contributing

greatly to weight reduction and device miniaturization.
This product features a right-angle type connector on the board side and a straight type on the cable side;

furthermore, 30- and 40-contact variations are currently available.



Micro coaxial Cable assemblies, eDP Cable assembly, LVDS Cable Assembly, I-PEX micro coaxial cable,

Fine pitch Wire Harness manufacturers

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 2



I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 3

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 4

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 5I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 6

I-Pex 20453-230T-03 To Kel SSL20-30S Micro Coaxial Cable 30P Lvds Edp Cable Assembly 7

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.



How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
