Product Details:
|
| Product Name: | I-Pex 0.5 Mm Pitch 20453-230t-03 To Kel Usl20-30s Micro Coaxial Cable Lvds Edp Cable Assembly | Contact Pitch: | 0.5mm Pitch |
|---|---|---|---|
| Connector: | Usl20-30s | Item: | 30 Pin |

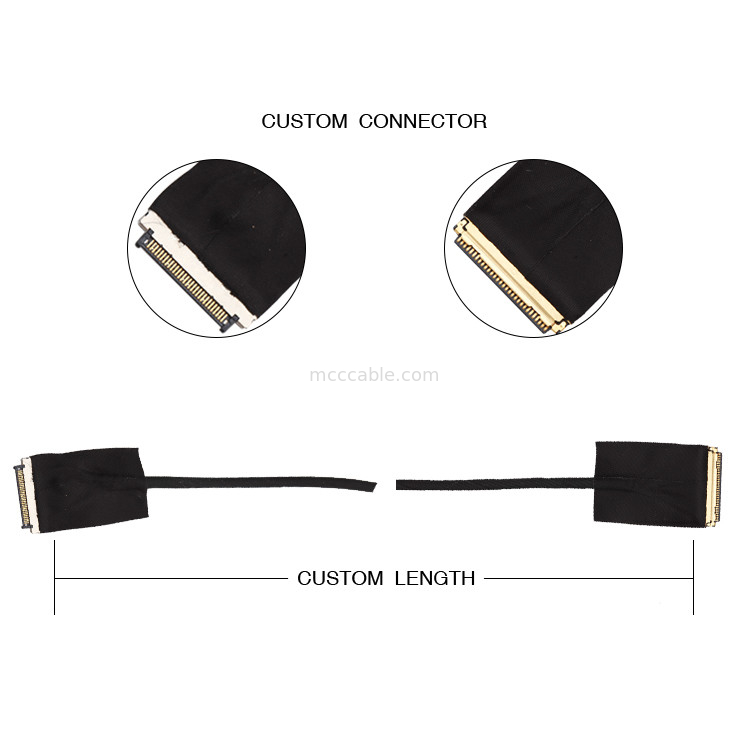

| Service: | Design | Length: | Customize |
| Number Of Positions: | 26, 30, 40, 50 | Express: | DHL FEDEX UPS TNT |
| High Light: | 30 Pin LVDS EDP Cable,0.5mm Pitch LVDS EDP Cable,ISO13485 LVDS Coaxial Cable |
||

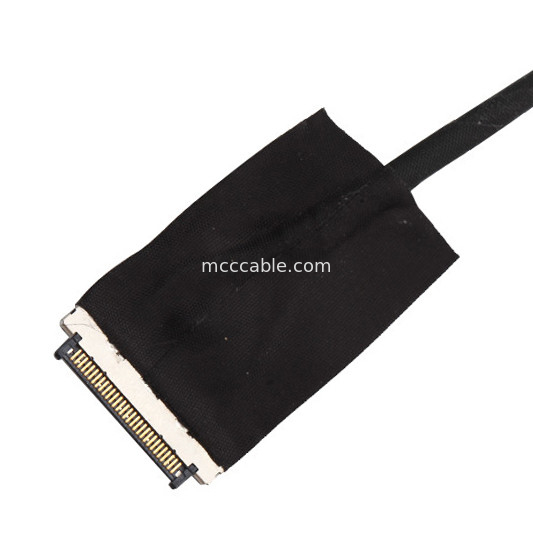

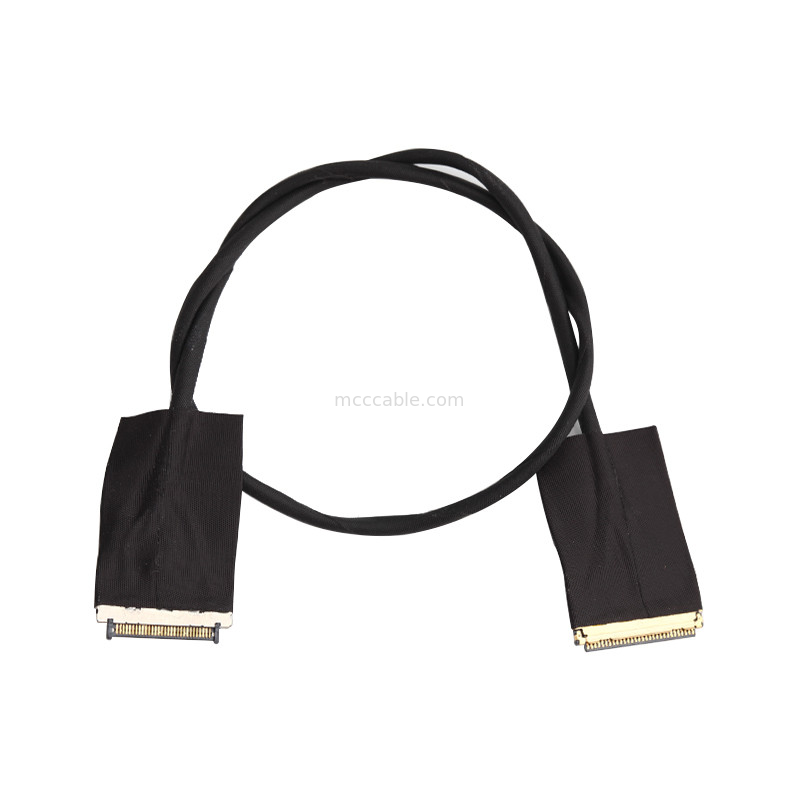

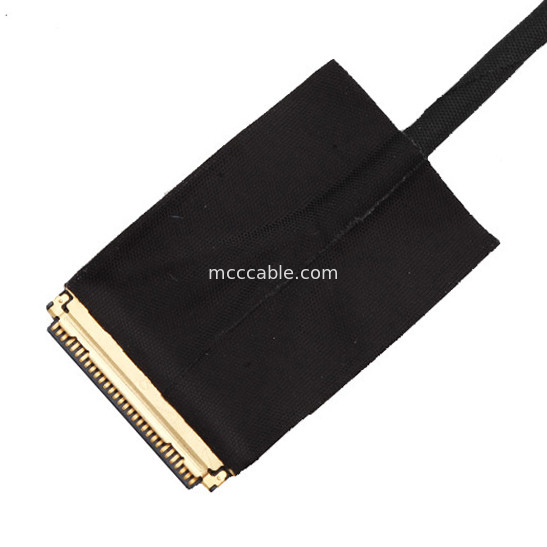

I-Pex 0.5 Mm Pitch 20453-230t-03 To Kel Usl20-30s Micro Coaxial Cable Lvds
Edp Cable Assembly
| Contact pitch | 0.500 mm |
| Pin count | 20 30 40 50 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Applicable Standards (Reference Only) | Thunderbolt™ 3 (20 Gbps/lane) USB® 3.1 Gen 2 (10 Gbps) eDP HBR 3 (8.1 Gbps) HDMI® 2.0 (6 Gbps) MiPi Gear 3 (5.8 Gbps) eDP HBR 2 (5.4 Gbps) USB® 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) |
| Performance | |
|---|---|
| current rating | 0.25A per contact |
| contact resistance | 100 mΩ or less |
| dielectric withstand voltage | AC200V, 1 minute |
| insulation resistance | DC250V, 100MΩ or more |
| operating temperature | -40 ℃ ～ + 85 ℃ |
| conforming cable | AWG # 42 Extra-fine coaxial cable |
SINO-TECH is a professional manufacturer of miniature coaxial cables. The micro coaxial cables we can
LVDS cable, SGC cable, MCC cable, micro coaxial cable assembly, LVDS eDP transmission,HRS cable,
I-PEX cable, Hirose Micro Shaft cable, KEL micro coaxial cable, ACES micro coaxial cable, etc.
Application
VR HEADSET/Dual Display (LCoS, RPDs)
AR/Liquid Crystal Display
Laptop/Camera
Laptop/LCD Connection
DRONE MAIN BODY/Gimbal Motor Connection-Camera
Automotive/Cluster Display
Company Profile
1.SINO-TECH has more than 16 years of experience in designing and customizing cable assemblies and
waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial
cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable
assemblies.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
