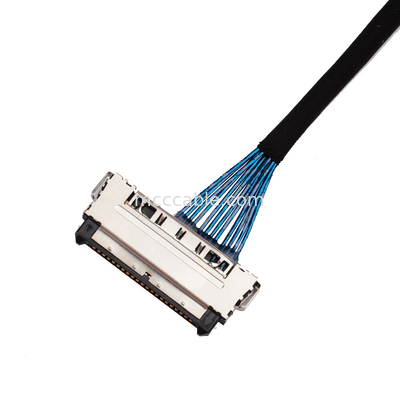

|Product Name:||1.0mm 41pin JAE FI-X 41P To HRS FX15S-41P-0.5SD EDP LVDS Cable Assembly||Contact Pitch:||1 Mm|
|Connector A:||JAE FI-X 41P||Connector B:||HRS FX15S-41P-0.5SD|
|Length:||Customize||Micro-Coaxial Wire (AWG):||#42 #46|
|Express:||DHL FEDEX UPS TNT|
EDP LVDS Cable Assembly,
41 Pin LVDS Cable Assembly,
HRS FX15S-41P-0.5SD EDP Cable Assembly
|Number of Positions||
21, 31, 41, 51
|Rated Current)||0.8 A max./ contact (receptacle), 0.7 A max./ contact (plug)|
|Dielectric Withstanding Voltage||500 VACr.m.s. (1 minute)|
|Operating Temperature Range||
-40 deg. C to +80 deg. C
The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial
cable assembly, LVDS eDP transmission,HRS cable, I-PEX cable, Hirose Micro Shaft cable, KEL micro
coaxial cable, ACES micro coaxial cable, etc.
LVDS cable,LCD cable,eDP cable,IPEX LVDS cable,LCD Ribbon cable
JAE FI-X 41P HRS FX15S-41P-0.5SD Common used connector part number:
JAE FI-X 21P FI-X 31P FI-X 41P FI-X 51P /HRS FX15S-41P-0.5SD FX15S-51P-0.5SD
The camera with 2 million 1080P MIPI signals, impedance ask for 100±10Ω, but Teflon discrete wire can
only with 100±15Ω, and the pitch of the discrete wire is unstable during the production process, there is
with a risk of flickering. Micro coaxial cable can meet the impedance requirements very well; in addition,
cameras that can rotate at a large angle ask for higher requirements for the life of the internal connectors,
so currently most of them use ffc cable assemblies, HRS FX15S-41P-0.5SD micro coaxial cable,
JAE FI-X 41P, etc.
1.SINO-TECH has more than 16 years of experience in designing and customizing cable assemblies and
waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial
cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
Contact Person: Andy
Tel: +86 13924649075
